Crankase of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

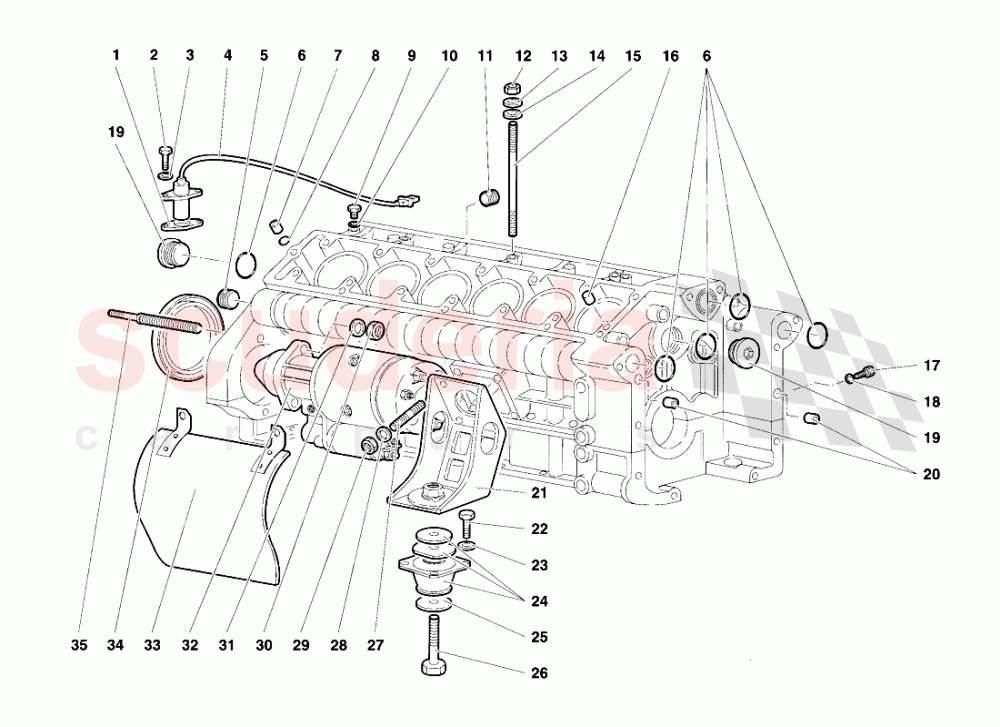

Lamborghini Diablo SE30 (1993-1995) - Crankase

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1628602	SPACER	1628602 SPACER DISTANZIALE DA 0,4 mm	-	1	Enquire
001	7M103899	0.2 mm ADJUSTMENT SHIM	7M103899 0.2 mm ADJUSTMENT SHIM DISTANZIALE DA 0,2 mm	$5.13	1
002	N01020717	SCREW M5X12 IN STOCK	N01020717 SCREW M5X12 VITE IN STOCK	$1.25 MSRP: ~~7.31~~ (82.9% off)	2
003	8410502	WASHER	8410502 WASHER RONDELLA	$0.07 MSRP: ~~7.38~~ (99.1% off)	2
004	7M905381	FLYWHEEL TIMING SENSOR	7M905381 FLYWHEEL TIMING SENSOR	$652.35	1
005	8933503	PLUG	8933503 PLUG TAPPO	-	2	Enquire
006	8603503	SEAL RING	8603503 SEAL RING ANELLO TENUTA	$3.87	5
007	1832161	DOWEL	1832161 DOWEL GRAND	$360.46	2
008	WHT003059	SEAL RING IN STOCK	WHT003059 SEAL RING ANELLO TENUTA IN STOCK	$145.18	2
009	8101402	PLUG	8101402 PLUG TAPPO	$26.98 MSRP: ~~30.25~~ (10.8% off)	1
010	8401425	WASHER	8401425 WASHER RONDELLA	-	1	Enquire
011	8931209	PLUG	8931209 PLUG TAPPO	-	1	Enquire
012	8200806	NUT	8200806 NUT DADO	$0.35 MSRP: ~~7.33~~ (95.2% off)	3
013	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.44	3
014	8400801	WASHER	8400801 WASHER RONDELLA	$0.64	3
015	8300891	STUD	8300891 STUD PRIGIONIERO	$13.99 MSRP: ~~15.65~~ (10.6% off)	3
016	8850821	DOWEL	8850821 DOWEL GRAND	-	2	Enquire
017	8100620	Bolt	8100620 Bolt VITE	$5.42 MSRP: ~~6.00~~ (9.7% off)	1
018	WHT003041	WASHER IN STOCK	WHT003041 WASHER RONDELLA IN STOCK	$0.83 MSRP: ~~7.31~~ (88.6% off)	1
019	1830023	PLUG	1830023 PLUG TAPPO	-	2	Enquire
020	8851304	DOWEL	8851304 DOWEL GRAND	$58.70 MSRP: ~~65.90~~ (10.9% off)	2
021	1834989	SUPPORT - SUPPORTO	1834989 SUPPORT - SUPPORTO O	$268.83	2
022	8101031	SCREW	8101031 SCREW VITE	$0.86 MSRP: ~~7.24~~ (88.1% off)	8
023	8411014	WASHER	8411014 WASHER RONDELLA	$0.18 MSRP: ~~7.37~~ (97.6% off)	8
024	400199703A	Flexible Support IN STOCK	400199703A Flexible Support SUPPORTO ELASTICO IN STOCK	$408.50	2
025	N91089301	WASHER	N91089301 WASHER RONDELLA	$123.27	2
026	4131471	SCREW	4131471 SCREW VITE	$31.38 MSRP: ~~35.25~~ (11% off)	2
027	8300814	STUD BOLT	8300814 STUD BOLT PRIGIONIERO	$6.13 MSRP: ~~6.85~~ (10.5% off)	8
028	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.44	8
029	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.94	8
030	1832869	NUT	1832869 NUT DADO	-	2	Enquire
031	8411303	WASHER IN STOCK	8411303 WASHER RONDELLA IN STOCK	$2.66	2
032	7M911023	STARTER	7M911023 STARTER	$6,125.00	1
033	1632074	SHIELD	1632074 SHIELD PARATIA ANTICALORE	$603.06	1
034	7M103089	SEAL RING IN STOCK	7M103089 SEAL RING IN STOCK	$214.60	1
035	8301240	STUD	8301240 STUD PRIGIONIERO	$39.53	2
