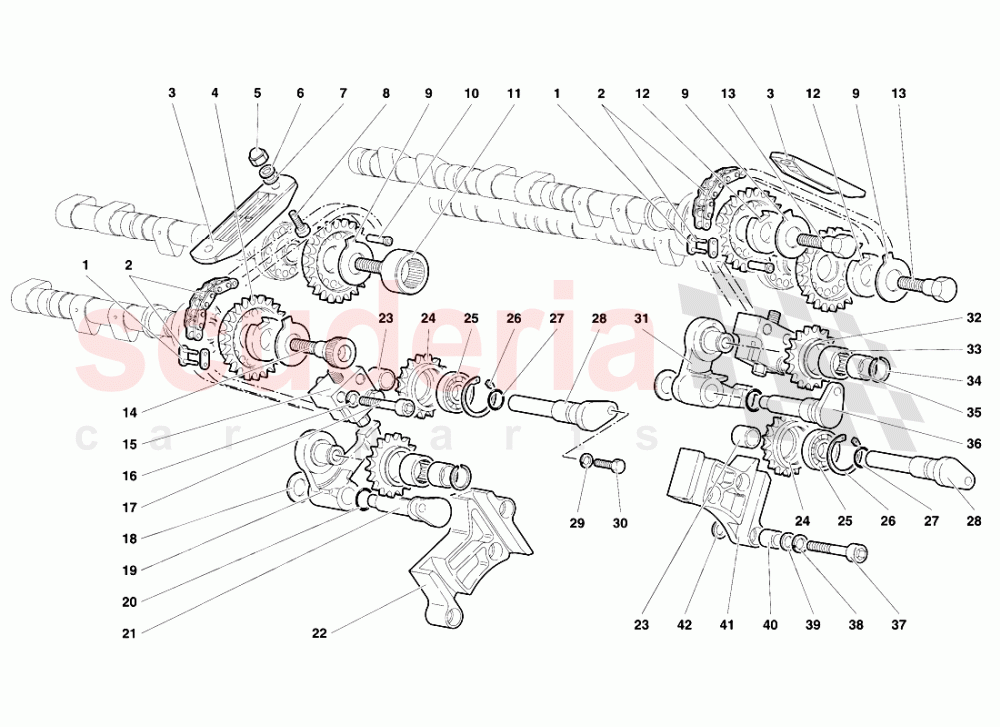

Lamborghini Diablo SE30 (1993-1995) - Timing System 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1229931	CHAIN JOINT	1229931 CHAIN JOINT GIUNZIONE CATENA	$4.91	2
002	1229930	CHAIN	1229930 CHAIN CATENA	$211.34	2
003	1131089	BRAKE PAD	1131089 BRAKE PAD PATTING	$295.18	2
004	1224809	GEAR	1224809 GEAR INGRANAGGIO	$3,767.56	4
005	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.86	4
006	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.86	4
007	WHT003041	WASHER IN STOCK	WHT003041 WASHER RONDELLA IN STOCK	$0.83 MSRP: ~~7.31~~ (88.6% off)	4
008	8700661	SCREW	8700661 SCREW VITE	$11.86	4
009	1219762	LOCKPLATE	1219762 LOCKPLATE PIASTRINA SICUREZZA	$41.04 MSRP: ~~44.35~~ (7.5% off)	4
010	1201964	DOWEL	1201964 DOWEL GRANO	$77.34	4
011	1225448	SCREW	1225448 SCREW VITE TRAINO	$457.21	1
012	1219761	WASHER	1219761 WASHER RONDELLA	$86.59 MSRP: ~~97.00~~ (10.7% off)	3
013	1225771	SCREW	1225771 SCREW VITE	$277.80	2
014	1228419	SCREW	1228419 SCREW VITE TRAINO	$403.97	1
015	1234659	CHAIN STRETCHER	1234659 CHAIN STRETCHER TENDICATENA	$695.46	2
016	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.44	4
017	8700829	SCREW	8700829 SCREW VITE	$5.43	4
018	8401234	WASHER	8401234 WASHER RONDELLA	$1.57 MSRP: ~~7.11~~ (77.9% off)	2
019	1231691	R. CHAIN TENS. SUP.	1231691 R. CHAIN TENS. SUP. SUPPORTO TENDICATENA DX	$437.43	1
020	8601303	SEAL	8601303 SEAL ANELLO TENUTA	$0.54	2
021	1232021	RIGHT PIN	1232021 RIGHT PIN PERNO DX	$273.74	1
022	1231719	RIGHT BRAKE PAD	1231719 RIGHT BRAKE PAD PATTING DX	$64.81	1
023	1225046	SPACER	1225046 SPACER DISTANZIALE	$29.58	2
024	1224991	GEAR	1224991 GEAR INGRANAGGIO	$522.59	2
025	8501204	BEARING	8501204 BEARING CUSCINETTO	$6.31	2
026	8573203	RETAINER RING	8573203 RETAINER RING ANELLO RITEGNO	$5.63	2
027	8601103	SEAL	8601103 SEAL ANELLO TENUTA	$9.84	2
028	1228095	PIN	1228095 PIN PERNO	$428.27	2
029	WHT003052	WASHER 4,3 IN STOCK	WHT003052 WASHER 4,3 RONDELLA IN STOCK	$3.52 MSRP: ~~7.38~~ (52.3% off)	4
030	8100607	SCREW	8100607 SCREW VITE	$5.43	4
031	1231690	L CHAIN TENS. SUP.	1231690 L CHAIN TENS. SUP. SUPPORTO TENDICATENA SX	$437.43	1
032	1231695	GEAR	1231695 GEAR INGRANAGGIO	$2,477.96	2
033	8522208	BEARING	8522208 BEARING CUSCINETTO	$35.37	2
034	8581701	RETAINER RING	8581701 RETAINER RING ANELLO RITEGNO	$1.03	2
035	8801702	BUSHING	8801702 BUSHING BOCCOLA	$38.23	2
036	1232020	LEFT PIN	1232020 LEFT PIN PERNO SX	$273.74	1
037	8700844	SCREW	8700844 SCREW VITE	$0.58	6
038	8410820	WASHER	8410820 WASHER RONDELLA	$0.18 MSRP: ~~7.37~~ (97.6% off)	6
039	1231040	WASHER	1231040 WASHER RONDELLA	-	6	Enquire
040	1231087	BUSHING	1231087 BUSHING BOCCOLA	$9.62	6
041	1231720	LEFT BRAKE PAD	1231720 LEFT BRAKE PAD PATTING SX	$68.21	1
042	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.44 MSRP: ~~7.15~~ (79.9% off)	6
