Intake Manifold of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

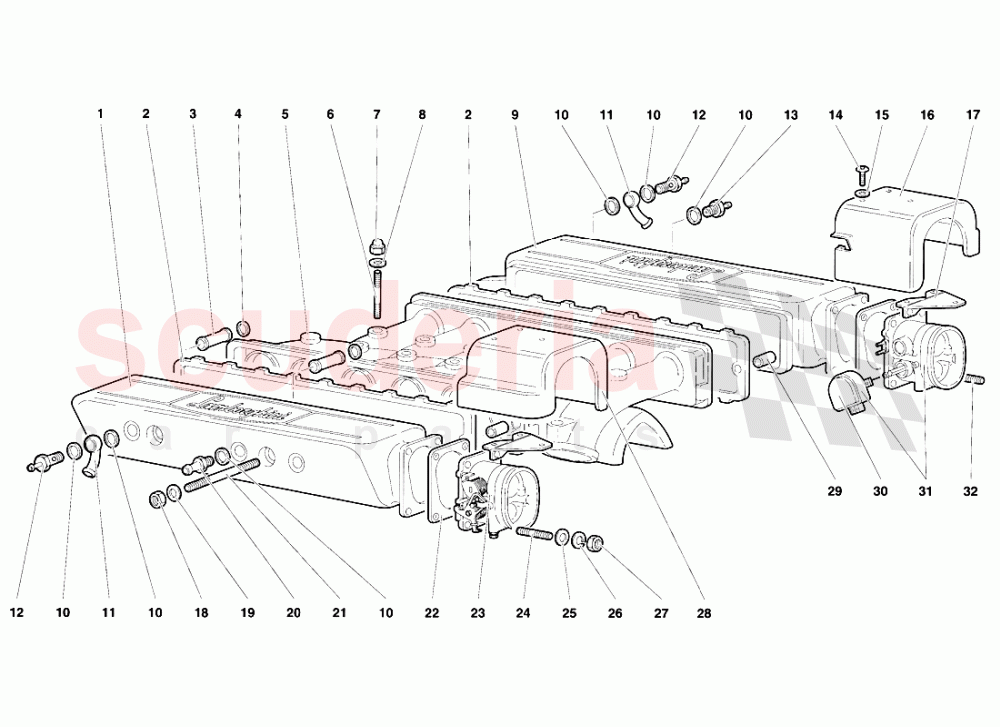

Lamborghini Diablo SE30 (1993-1995) - Intake Manifold

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1334565	RIGHT COVER	1334565 RIGHT COVER COPERCHIO DX	$1,460.50	1
002	1323717	Gasket	1323717 Gasket GUARNIZIONE	$53.99	2
003	1322163	SPACER	1322163 SPACER DISTANZIALE	-	4	Enquire
004	8401025	WASHER	8401025 WASHER RONDELLA	$30.98	4
005	1335012	INLET MANIFOLD	1335012 INLET MANIFOLD COLLETTORE ASPIRAZIONE	-	1	Enquire
006	8300610	STUD BOLT	8300610 STUD BOLT PRIGIONIERO	$22.89 MSRP: ~~25.65~~ (10.8% off)	10
007	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.85	10
008	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	6
009	1334566	LEFT COVER	1334566 LEFT COVER COPERCHIO SX	$1,460.50	1
010	3101513	WASHER IN STOCK	3101513 WASHER RONDELLA IN STOCK	$1.34 MSRP: ~~7.32~~ (81.7% off)	6
011	1328002	CONNECTION	1328002 CONNECTION RACCORDO	$54.63	2
012	1328722	CONNECTION	1328722 CONNECTION RACCORDO	$150.57	2
013	1330455	CONNECTION	1330455 CONNECTION RACCORDO	$30.82 MSRP: ~~33.45~~ (7.9% off)	1
014	8700541	SCREW	8700541 SCREW VITE	$2.96	6
015	8400511	WASHER	8400511 WASHER RONDELLA	$0.30	6
016	1335305	LEFT SHIELD	1335305 LEFT SHIELD PROTEZIONE SX	$448.24	1
017	1335307	BRACKET	1335307 BRACKET STAFFA	$25.73	2
018	8201006	NUT	8201006 NUT DADO	$7.05	4
019	8401022	WASHER	8401022 WASHER RONDELLA	$0.25 MSRP: ~~7.35~~ (96.6% off)	4
020	1330882	CONNECTION	1330882 CONNECTION RACCORDO	-	1	Enquire
021	8301030	STUD	8301030 STUD PRIGIONIERO	$32.54	4
022	1326311	GASKET	1326311 GASKET GUARNIZIONE	$68.18	2
023	1326181	THROTTLE HOLDER	1326181 THROTTLE HOLDER CORPO FARFALLATO DX	$1,214.17	1
024	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO	$20.74	7
025	WHT002962	WASHER 14X8.4X1.5 IN STOCK	WHT002962 WASHER 14X8.4X1.5 RONDELLA IN STOCK	$0.32 MSRP: ~~7.35~~ (95.6% off)	8
026	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.44	8
027	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.93	8
028	1335306	RIGHT SHIELD	1335306 RIGHT SHIELD PROTEZIONE DX	$340.36	1
029	WHT003577	DOWEL	WHT003577 DOWEL BOCCOLA	$1.67 MSRP: ~~7.03~~ (76.2% off)	4
030	1327641	POTENTIOMETER	1327641 POTENTIOMETER POTENZIOMETRO	$159.24 MSRP: ~~173.50~~ (8.2% off)	1
031	1326293	THROTTLE HOLDER	1326293 THROTTLE HOLDER CORPO FARFALLATO SX	$1,321.07 MSRP: ~~1,485.00~~ (11% off)	1
032	8300913	STUD	8300913 STUD PRIGIONIERO	$44.14	1
