Timing System 2 of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

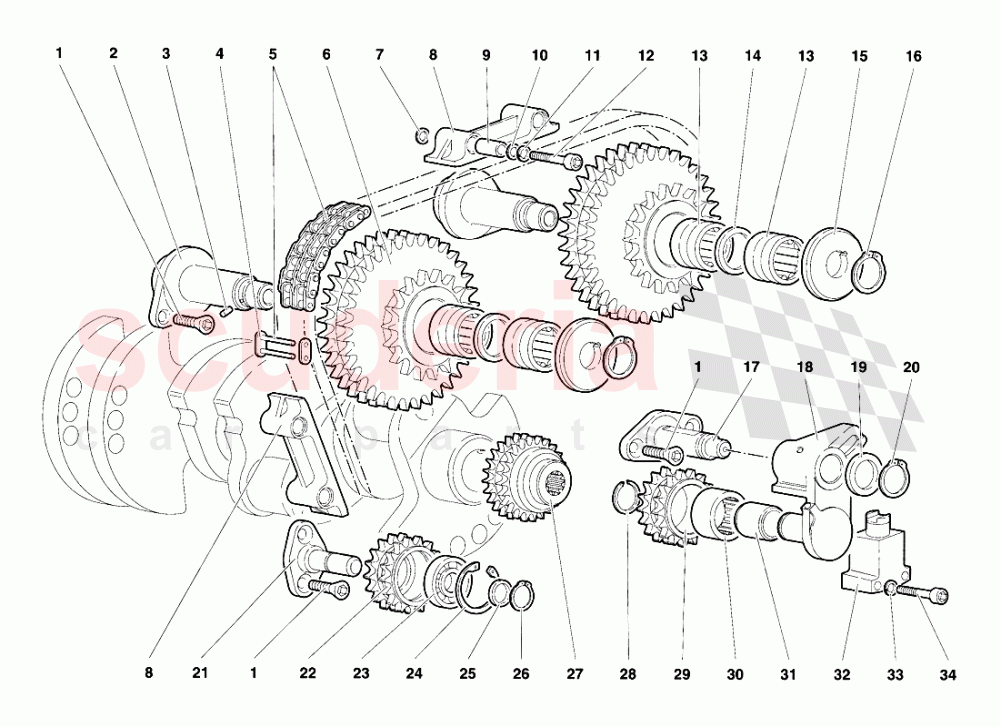

Lamborghini Diablo SE30 (1993-1995) - Timing System 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	WHT003068	COUNTERSUNK BOLT IN STOCK	WHT003068 COUNTERSUNK BOLT VITE IN STOCK	$1.33 MSRP: ~~7.17~~ (81.5% off)	6
002	1224754	PIN	1224754 PIN PERNO	$128.68	2
003	8900203	PIN - SPINA	8900203 PIN - SPINA SA	$0.08	2
004	1229933	CHAIN JOINT	1229933 CHAIN JOINT GIUNZIONE CATENA	-	1	Enquire
005	1229932	CHAIN	1229932 CHAIN CATENA	-	1	Enquire
006	1226385	GEAR	1226385 GEAR INGRANAGGIO	$1,811.90	2
007	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.44 MSRP: ~~7.15~~ (79.9% off)	4
008	1231108	BRAKE PAD	1231108 BRAKE PAD PATTING	$38.56	2
009	1231088	BUSHING	1231088 BUSHING BOCCOLA	$22.83	4
010	1231040	WASHER	1231040 WASHER RONDELLA	-	4	Enquire
011	8410820	WASHER	8410820 WASHER RONDELLA	$0.18 MSRP: ~~7.37~~ (97.6% off)	4
012	8700845	SCREW	8700845 SCREW VITE	$9.52	4
013	8522508	BEARING	8522508 BEARING CUSCINETTO	-	4	Enquire
014	1226391	SPACER	1226391 SPACER DISTANZIALE	$23.20	2
015	1231173	WASHER	1231173 WASHER RONDELLA	$31.41	2
016	WHT002646	RETAINING RING IN STOCK	WHT002646 RETAINING RING ANELLO RITEGNO IN STOCK	$1.01 MSRP: ~~7.22~~ (86% off)	2
017	1232026	PIN	1232026 PIN PERNO	$303.53	1
018	1231280	SUPPORT - SUPPORTO	1231280 SUPPORT - SUPPORTO O	$1,038.11	1
019	8401821	WASHER	8401821 WASHER RONDELLA	$21.86	1
020	8581601	RETAINER RING	8581601 RETAINER RING ANELLO RITEGNO	$2.38	1
021	1224981	PIN	1224981 PIN PERNO	$177.73	1
022	1224979	GEAR	1224979 GEAR INGRANAGGIO	$135.04	1
023	8501204	BEARING	8501204 BEARING CUSCINETTO	$6.29	1
024	8573203	RETAINER RING	8573203 RETAINER RING ANELLO RITEGNO	$5.61	1
025	8401233	WASHER	8401233 WASHER RONDELLA	$24.88	1
026	8581101	RETAINER RING	8581101 RETAINER RING ANELLO RITEGNO	$5.42 MSRP: ~~6.00~~ (9.7% off)	1
027	1224808	GEAR	1224808 GEAR INGRANAGGIO	$580.31	1
028	8581701	RETAINER RING	8581701 RETAINER RING ANELLO RITEGNO	$1.02	1
029	1231696	GEAR	1231696 GEAR INGRANAGGIO	$2,470.69	1
030	8522209	BEARING	8522209 BEARING CUSCINETTO	$92.32	1
031	8801703	BUSHING	8801703 BUSHING BOCCOLA	$51.18	1
032	1222770	CHAIN STRETCHER	1222770 CHAIN STRETCHER TENDICATENA	$611.29	1
033	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.44	2
034	8700829	SCREW	8700829 SCREW VITE	$5.42	2
