Centre Stack Assembly (2009)

Aston Martin DB9 (2004-2012)

Find Your Part

Aston Martin DB9 (2004-2012) - Centre Stack Assembly (2009)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8D3318K810AA INFOTAINMENT CONTROL MODULE HARDWARE $1,527.44 IN STOCK
Photo Part No Description Price (each) Stock
CG3318C612AA Module, HVAC control Enquire To Order
8D3318C612AB CENTRE CONSOLE MODULE ECU $977.61 To Order
Photo Part No Description Price (each) Stock
8D3315000BB Analogue Clock $741.05 To Order
Photo Part No Description Price (each) Stock
8D3313D734CB Switch body, Piano Black surround and Silver lens $203.47 To Order
Photo Part No Description Price (each) Stock
8D3318C612DA Module, Temp HVAC Rotary Control $175.88 To Order
Photo Part No Description Price (each) Stock
8D3313D734BB Module, Volume / Auto Audio Control $237.32 To Order
Photo Part No Description Price (each) Stock
8D3318817AB AUDIO CONROL KNOB $340.44 To Order
Photo Part No Description Price (each) Stock
8D3318C612EA Module, Fan Speed HVAC Rotary Control $218.00 To Order
Photo Part No Description Price (each) Stock
CG4318783AA Knob, HVAC control, satin chrome Enquire To Order
AG433711210 SWITCH KIT-GLASS DB9 MANUAL & V8 VTG MANUAL (MADE TO ORD) $560.43 To Order
AG433711211 SWITCH KIT-GLASS DB9 AUTO (MADE TO ORDER) $1,096.54 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
AD3315A860BB PARKING SENSOR SWITC $159.91 To Order
8D3315A860BB SWITCH-PARKNG SENSOR $43.45 To Order
Photo Part No Description Price (each) Stock
AD332C418DA Switch, DSC Control $104.70 To Order
AD332C418CA Switch, Active Damping $790.77 To Order
BG432C418BA DSC CONTROL SWITCH $56.84 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
AD3315K237BB FOGLAMP SWITCH $253.82 To Order
6G3315K237BB FOGLAMP SWITCH $41.84 To Order
Photo Part No Description Price (each) Stock
AD3314B626CB SPORTS MODE SWITCH $414.00 To Order
9D3314B626AA SPORTS MODE SWITCH $48.58 To Order
6G3314B626BB SPORTS MODE SWITCH $58.09 To Order
Photo Part No Description Price (each) Stock
9G4356051BB PEN HOLDER $47.51 To Order
700623 LAMY POCKET PEN-CHROME $106.58 IN STOCK
Photo Part No Description Price (each) Stock
707263 SCREW 4.2x13 FLG T/F $3.81 To Order
Photo Part No Description Price (each) Stock
701157PK Screw & Washer 4.2 x 16 (Pack of 10) $2.48 IN STOCK
Photo Part No Description Price (each) Stock
CD3313D734CA SWITCH MAIN BODY $5,730.69 To Order
8D3318783AC HVAC CONTROL KNOB $372.53 To Order
Photo Part No Description Price (each) Stock
AG4304708BB ICM LENS $101.78 IN STOCK
View All

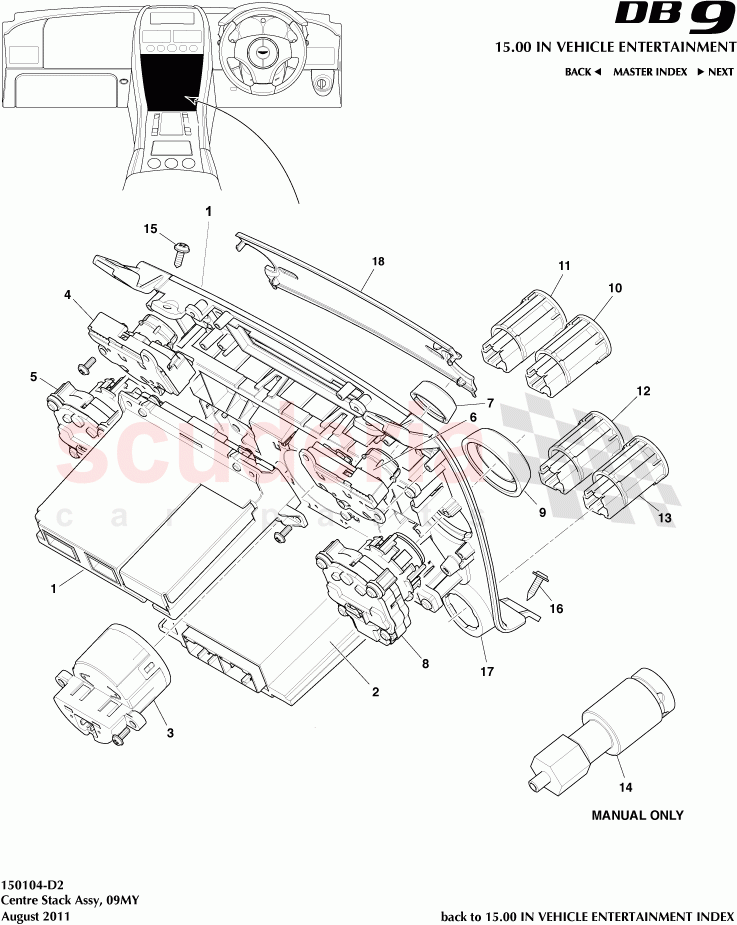

Centre Stack Assembly (2009) of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- CG4318C815GA
Centre stack assy, black outer, black inner, satin chrome knobs
12MY 		- 1 Enquire
- 9G4318C815AD
CENTRE STACK ASSY SILVER OUTR GRAPHITE INNER
11MY 		$5,521.56 1
- 9G4318C858BC
Centre stack assy, silver outer, graphite inner, LHD MANUAL 		- 1 Enquire
- 9G4318C858AB
Centre stack assy, silver outer, graphite inner, LHD AUTO 		- 1 Enquire
- 9G4318C858DB
Centre stack assy, silver, RHD MANUAL 		- 1 Enquire
- 9G4318C858CA
CENTRE STACK ASSY SILVER 		$4,940.30 1
1 8D3318K810AA
INFOTAINMENT CONTROL MODULE HARDWARE
IN STOCK 		$1,527.44 1
2 CG3318C612AA
Module, HVAC control
12MY 		- 1 Enquire
2 8D3318C612AB
CENTRE CONSOLE MODULE ECU 		$977.61 1
3 8D3315000BB
Analogue Clock 		$741.05 1
4 8D3313D734CB
Switch body, Piano Black surround and Silver lens 		$203.47 1
5 8D3318C612DA
Module, Temp HVAC Rotary Control 		$175.88 1
6 8D3313D734BB
Module, Volume / Auto Audio Control 		$237.32 1
7 8D3318817AB
AUDIO CONROL KNOB 		$340.44 2
8 8D3318C612EA
Module, Fan Speed HVAC Rotary Control 		$218.00 1
9 CG4318783AA
Knob, HVAC control, satin chrome
12MY 		- 2 Enquire
9 AG433711210
SWITCH KIT-GLASS DB9 MANUAL & V8 VTG MANUAL (MADE TO ORD) 		$560.43 1
9 AG433711211
SWITCH KIT-GLASS DB9 AUTO (MADE TO ORDER) 		$1,096.54 1
9 8D3318783AC
HVAC CONTROL KNOB 		$372.53 2
10 AD3315A860BB
PARKING SENSOR SWITC
11MY, Glass 		$159.91 1
10 8D3315A860BB
SWITCH-PARKNG SENSOR 		$43.45 1
11 AD332C418DA
Switch, DSC Control
11MY, Glass 		$104.70 1
11 AD332C418CA
Switch, Active Damping
12MY 		$790.77 1
11 BG432C418BA
DSC CONTROL SWITCH
12MY 		$56.84 1
11 8D332C418CA
ACTIVE DAMPING SWTCH
12MY 		$59.61 1
11 6G332C418AA
DSC CONTROL SWITCH
IN STOCK 		$45.66 1
12 AD3315K237BB
FOGLAMP SWITCH
11MY, Glass 		$253.82 1
12 6G3315K237BB
FOGLAMP SWITCH 		$41.84 1
13 AD3314B626CB
SPORTS MODE SWITCH
11MY 		$414.00 1
13 9D3314B626AA
SPORTS MODE SWITCH
12MY 		$48.58 1
13 6G3314B626BB
SPORTS MODE SWITCH 		$58.09 1
14 9G4356051BB
PEN HOLDER 		$47.51 1
14 700623
LAMY POCKET PEN-CHROME
IN STOCK 		$106.58 1
15 707263
SCREW 4.2x13 FLG T/F 		$3.81 2
16 701157PK
Screw & Washer 4.2 x 16 (Pack of 10)
IN STOCK 		$2.48 2
17 CD3313D734CA
SWITCH MAIN BODY
12MY 		$5,730.69 1
17 8D3318783AC
HVAC CONTROL KNOB 		$372.53 1
18 AG4304708BB
ICM LENS
9.5MY on
IN STOCK 		$101.78 1
