Centre Stack Assembly

Aston Martin DB9 (2004-2012)

Find Your Part

Aston Martin DB9 (2004-2012) - Centre Stack Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
6G3315K237BB FOGLAMP SWITCH $42.00 To Order
4G4315K237AF FOGLAMP SWITCH - REAR $54.40 To Order
Photo Part No Description Price (each) Stock
6G332C418AA DSC CONTROL SWITCH $45.83 IN STOCK
4G432C418AF DSC CONTROL SWITCH $146.11 To Order
Photo Part No Description Price (each) Stock
6G3313A350AA HAZARD WARNING SWITCH $49.69 To Order
4G4313A350AF SWITCH - HAZARD WARNING $55.12 To Order
Photo Part No Description Price (each) Stock
4G4319E755AE AIRCON RECIRCULATION SWITCH $79.57 To Order
4G4319E755AF AIRCON RECIRCULATION SWITCH $48.97 To Order
Photo Part No Description Price (each) Stock
6G3319E755BA AIRCON REQUEST SWITCH $121.43 To Order
4G4319E755BF AIRCON REQUEST SWITCH $55.12 To Order
Photo Part No Description Price (each) Stock
4G4313D734DE TELEPHONE SWITCHPACK $802.23 To Order
8G4313D734AA TELEPHONE SWITCH PAC $2,135.12 To Order
4G4313D734DE TELEPHONE SWITCHPACK $802.23 To Order
Photo Part No Description Price (each) Stock
4G4318C612AJ Module, HVAC control $1,990.12 To Order
4G438910707PK ALUM KNOB-AIR COND-3 $481.60 To Order
Photo Part No Description Price (each) Stock
6G3318K810AA INTEGRATED CONTROL MODULE DRIVER INTERFACE (WHITE) $1,127.20 To Order
8G4318K810AA ICM HARDWARE $2,186.63 IN STOCK
4G433810585 DRIVER INFO MODULE (KPH) & ICM KIT MADE TO ORDER in24Hr $3,591.41 To Order
Photo Part No Description Price (each) Stock
4G4315000AD ANALOGUE CLOCK $641.77 To Order
Photo Part No Description Price (each) Stock
7G3313D734BA NON NAVIGATION SWITCHPACK WITH PAD LAMP $779.43 To Order
7G4313D734BA NON NAVIGATION SWITCHPACK WITH PAD LAMP $771.57 To Order
7G3313D734AA NAVIGATION SWITCHPACK WITH PAD LAMP $820.40 To Order
...and 14 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G433710223 RADIO VISOR PANEL $282.69 IN STOCK
Photo Part No Description Price (each) Stock
4G4318C830DB SUPPORT BRACKET $206.21 To Order
4G4318C830DA SUPPORT BRACKET $206.21 To Order
4G4313D734GB SIM CARD HOLDER DRAWER $18.04 To Order
...and 2 more part variants. See table on right for more details.
View All

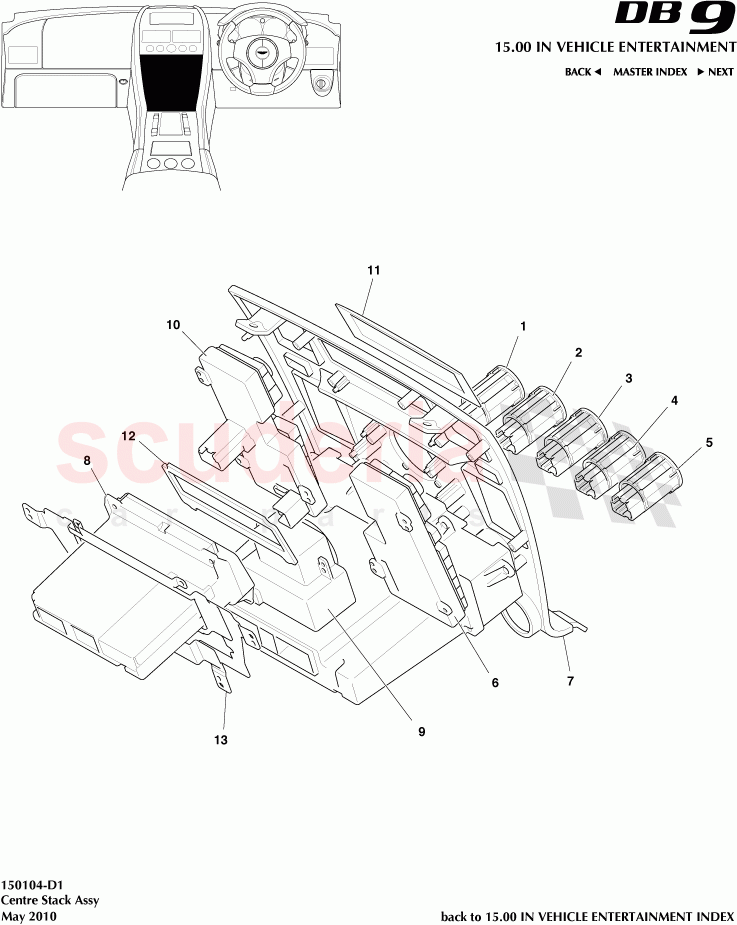

Centre Stack Assembly of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 6G3318C858CB
CENTRE STACK ASSY - NON NAV / TEL NON TELEMATICS LHD
06MY from (V) A04019 		- 1 Enquire
- 6G3318C858AB
CENTRE STACK ASSY - NON NAV / NON TEL / NON TELEMATICS LHD
06MY from (V) A04019 		- 1 Enquire
- 6G3318C858BB
CTR STACK TEL NO NAV
06MY from (V) A04019 		- 1 Enquire
- 6G3318C858GB
CENTRE STACK ASSY - NAV / TEL NON TELEMATICS LHD
06MY from (V) A04019 		- 1 Enquire
- 6G3318C858EB
CENTRE STACK ASSY - NAV / NON TEL / NON TELEMATICS LHD
06MY from (V) A04019 		- 1 Enquire
- 6G3318C858DB
CENTRE STACK TEL NAV
06MY from (V) A04019 		- 1 Enquire
- 6G3318C858HB
CENTRE STACK ASSY NAV WITH PHONE RHD
06MY from (V) A04019 		$4,707.39 1
- 6G3318C858FB
CENTRE STACK ASSY NAV W/OUT PHONE RHD
06MY from (V) A04019 		- 1 Enquire
- 6G4318C858FB
CENTRE STACK ASSY NAV / NON TEL RHD
06MY from (V) A04019 		$4,707.39 1
- 6G4318C858CB
CENTRE STACK ASSY NON NAV/TEL LHD
06MY from (V) A04019 		- 1 Enquire
- 6G4318C858DB
CENTRE STACK ASSY NON NAV/TEL RHD
06MY from (V) A04019 		$4,707.39 1
- 6G4318C858AA
CENTRE STACK ASSY NON NAV/NON TEL LHD
06MY from (V) A04019 		- 1 Enquire
- 6G4318C858BB
CENTRE STACK ASSY NON NAV/NON TEL RHD
06MY from (V) A04019 		- 1 Enquire
- 6G4318C858GB
CENTRE STACK ASSY NAV / TEL LHD
06MY from (V) A04019 		$4,707.39 1
- 6G4318C858HB
CENTRE STACK ASSY NAV / TEL RHD
06MY from (V) A04019 		$4,707.39 1
- 6G4318C858EB
CENTRE STACK ASSY NAV / NON TEL LHD
06MY from (V) A04019 		$4,707.39 1
- 8G4318C858BB
Centre stack assy, RHD, no nav, no tel
08MY From (V)A09110 		- 1 Enquire
- 8G4318C858FB
Centre stack assy, RHD, nav/non tel
08MY From (V)A09110 		- 1 Enquire
- 8G4318C858KB
Centre stack assy, LHD, no nav PAD, platinum- FED
08MY Frm(V)A09110 		- 1 Enquire
- 8G4318C815AB
CENTRE STACK ASSY NON NAV/NON TEL
08MY Fr (V)A09110 		$4,448.60 1
- 8G4318C815FB
CENTRE STACK ASSY NON NAV / PAD LHD
08MY Fr (V)A09110 		$6,296.06 1
- 8G4318C815CB
CENTRE STACK ASSY NAV/NON TEL
08MY Fr (V)A09110 		$4,448.60 1
- 8G4318C858AB
Centre stack assy, LHD, non nav no tel
08MY Frm(V)A09110 		- 1 Enquire
- 8G4318C858EB
Centre stack assy, LHD, nav/non tel
08MY Frm(V)A09110 		- 1 Enquire
- 8G4318C858JB
Centre stack assy, LHD, nav/ tel
08MY Frm(V)A09110 		- 1 Enquire
- 8G4318C815EB
CENTRE STACK ASSY NAV / PAD LHD
08MY Fr (V)A09110 		$5,542.59 1
- 7G3318C815BA
CENTRE STACK ASSY NON NAV / PAD
07MY 		$4,448.60 1
- 7G3318C858NA
Centre stack assy, LHD, no nav, no tel, PAD, graphite- FED
07MY 		- 1 Enquire
- 7G3318C815DA
CENTRE STACK ASSY NON NAV / PAD
07MY 		$4,448.60 1
- 7G4318C815BA
CENTRE STACK ASSY NON NAV / PAD
07MY 		$4,448.60 1
- 7G4318C858BA
CENTRE STACK ASSY NON NAV / PAD
07MY 		- 1 Enquire
- 7G4318C815AA
CENTRE STACK ASSY NAV / PAD
07MY 		$4,448.60 1
- 7G4318C858AA
CENTRE STACK ASSY NAV / PAD
07MY 		- 1 Enquire
- 7G3318C858BA
Centre stack assy, LHD, no nav, PAD, anthracite- FED
07MY 		- 1 Enquire
- 7G3318C858LA
Centre stack assy, RHD, nav tel PAD, graphite- FED
07MY 		- 1 Enquire
- 7G3318C858AA
Centre stack assy, LHD, nav, PAD, anthracite- FED
07MY 		- 1 Enquire
- 7G3318C858CA
Centre stack assy, LHD, non nav, no tel, graphite
07MY 		- 1 Enquire
- 7G3318C815AA
CENTRE STACK ASSY NAV / PAD
07MY 		$4,448.60 1
- 7G3318C858OA
Centre stack assy, LHD, no nav, no tel, graphite
07MY 		- 1 Enquire
- 7G3318C858PA
Centre stack assy, RHD, no nav, no tel, graphite
07MY 		- 1 Enquire
- 7G3318C858MA
Centre stack assy, LHD, nav, PAD, graphite- FED
07MY 		- 1 Enquire
- 7G3318C815CA
CENTRE STACK ASSY NAV/PAD
07MY 		$4,448.60 1
- 7G3318C858EA
Centre stack assy, LHD, no nav, tel, graphite
07MY 		- 1 Enquire
- 7G3318C858GA
Centre stack assy, LHD, nav, no tel, graphite
07MY 		- 1 Enquire
- 7G3318C858FA
Centre stack assy, RHD, no nav/ tel, graphite
07MY 		- 1 Enquire
- 7G3318C815FA
CENTRE STACK ASSY NON NAV / TEL
07MY 		$4,448.60 1
- 7G3318C858JA
Centre stack assy, RHD, nav no tel, graphite
07MY 		- 1 Enquire
- 7G3318C815EA
CENTRE STACK ASSY NON NAV / NON TEL
07MY 		$4,448.60 1
- 4G4318C858CE
CENTRE STACK ASSY - NON NAV / TEL LHD
05MY 		$4,707.39 1
- 4G4318C858KE
CENTRE STACK ASSY - NON NAV / TEL RHD
05MY 		$4,707.39 1
- 4G4318C858AE
CENTRE STACK ASSY - NON NAV/NON TEL LHD
05MY 		$4,707.39 1
- 7G3318C858KA
Centre stack assy, LHD, nav, tel, graphite
07MY 		- 1 Enquire
- 4G4318C858IE
CENTRE STACK ASSY - NON NAV/NON TEL RHD
05MY 		$4,707.39 1
- 7G3318C815GA
CENTRE STACK ASSY NAV/ NON TEL
07MY 		$4,448.60 1
- 7G3318C815HA
CENTRE STACK ASSY NAV / TEL
07MY 		$4,448.60 1
- 4G4318C858GE
CENTRE STACK ASSY - NAV / TEL LHD
05MY 		$4,707.39 1
- 6G4318C858EB
CENTRE STACK ASSY NAV / NON TEL LHD
07MY 		$4,707.39 1
- 4G4318C858OE
CENTRE STACK ASSY - NAV / TEL RHD
05MY 		$4,707.39 1
- 4G4318C858EE
CENTRE STACK ASSY - NAV / NON TEL / LHD
05MY 		$8,751.40 1
- 6G4318C858AB
CENTRE STACK ASSY NON NAV/NON TEL LHD
07MY 		- 1 Enquire
- 6G4318C858CB
CENTRE STACK ASSY NON NAV/TEL LHD
07MY 		- 1 Enquire
- 4G4318C858ME
CENTRE STACK ASSY - NAV / NON TEL RHD
05MY 		$4,707.39 1
- 6G4318C858BB
CENTRE STACK ASSY NON NAV/NON TEL RHD
07MY 		- 1 Enquire
- 6G4318C858FB
CENTRE STACK ASSY NAV / NON TEL RHD
07MY 		$4,707.39 1
- 6G4318C858DB
CENTRE STACK ASSY NON NAV/TEL RHD
07MY 		$4,707.39 1
- 6G4318C858GB
CENTRE STACK ASSY NAV / TEL LHD
07MY 		$4,707.39 1
- 4G4318C815AB
CENTRE STACK ASSY NON NAV/NON TEL
07MY 		$3,573.49 1
- 6G4318C858HB
CENTRE STACK ASSY NAV / TEL RHD
07MY 		$4,707.39 1
- 4G4318C815CB
CENTRE STACK ASSY NAV / NON TEL
07MY 		$4,448.60 1
- 4G4318C815BB
CENTRE STACK ASSY NON NAV / TEL
07MY 		$3,573.49 1
- 4G4318C815DB
CENTRE STACK ASSY NAV / TEL
07MY 		$4,448.60 1
- 701157PK
Screw & Washer 4.2 x 16 (Pack of 10)
IN STOCK 		$2.49 4
1 6G3315K237BB
FOGLAMP SWITCH
06MY from (V) A04019 		$42.00 1
1 4G4315K237AF
FOGLAMP SWITCH - REAR
05MY 		$54.40 1
2 6G332C418AA
DSC CONTROL SWITCH
06MY from (V) A04019
IN STOCK 		$45.83 1
2 4G432C418AF
DSC CONTROL SWITCH
05MY 		$146.11 1
3 6G3313A350AA
HAZARD WARNING SWITCH
06MY from (V) A04019 		$49.69 1
3 4G4313A350AF
SWITCH - HAZARD WARNING
05MY 		$55.12 1
4 4G4319E755AE
AIRCON RECIRCULATION SWITCH
06MY from (V) A04019 		$79.57 1
4 4G4319E755AF
AIRCON RECIRCULATION SWITCH
05MY 		$48.97 1
5 6G3319E755BA
AIRCON REQUEST SWITCH
06MY from (V) A04019 		$121.43 1
5 4G4319E755BF
AIRCON REQUEST SWITCH
05MY 		$55.12 1
6 4G4313D734DE
TELEPHONE SWITCHPACK
06MY from (V) A04019 		$802.23 1
6 8G4313D734AA
TELEPHONE SWITCH PAC
08MY from (V) A09110 		$2,135.12 1
6 4G4313D734DE
TELEPHONE SWITCHPACK
05MY 		$802.23 1
7 4G4318C612AJ
Module, HVAC control
Includes face plate 		$1,990.12 1
7 4G438910707PK
ALUM KNOB-AIR COND-3
Set of 3 		$481.60 1
8 6G3318K810AA
INTEGRATED CONTROL MODULE DRIVER INTERFACE (WHITE)
06MY from (V) A04019 		$1,127.20 1

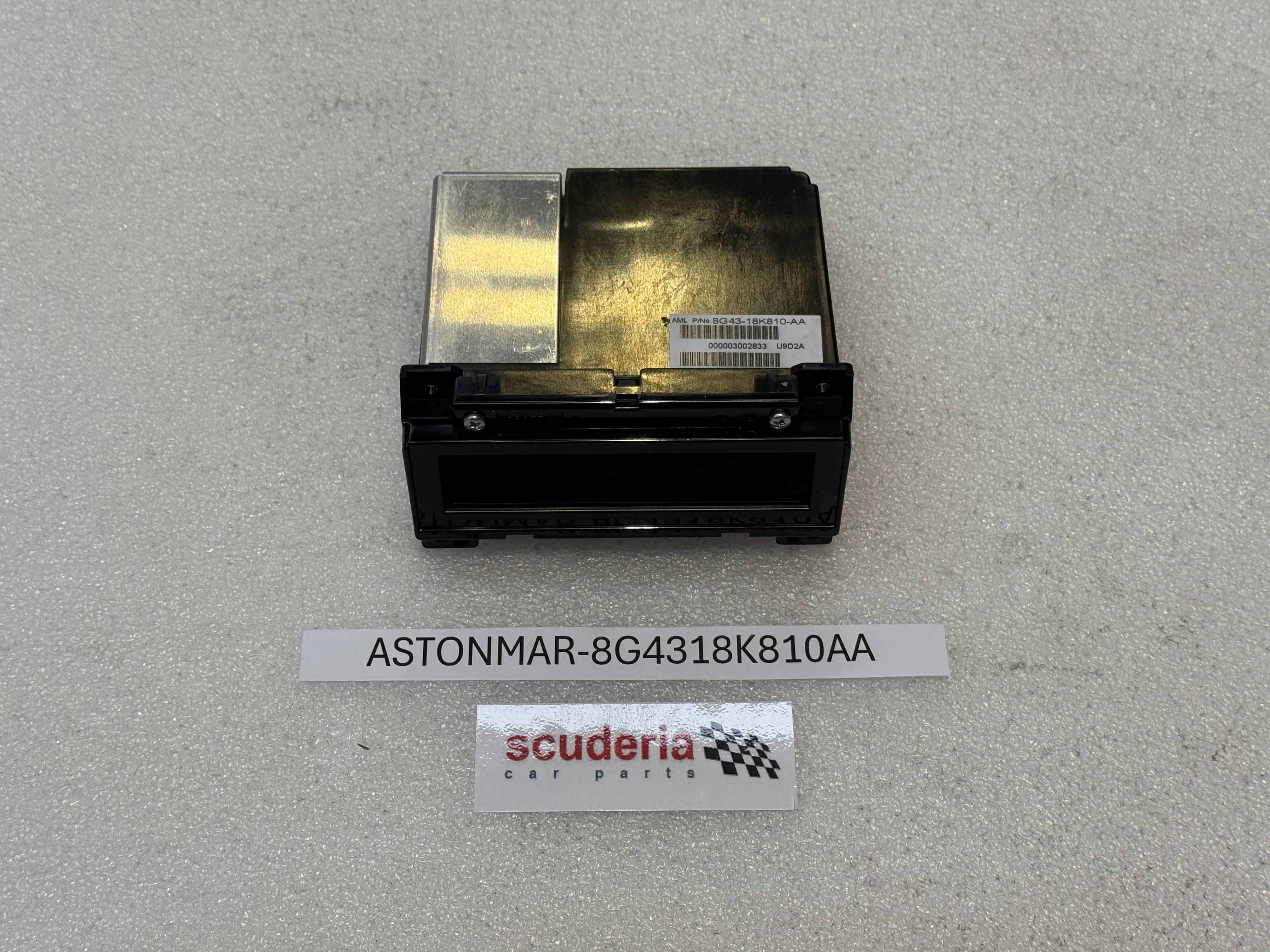

8 8G4318K810AA
ICM HARDWARE
08MY from (V) A09110
IN STOCK 		$2,186.63 1
8 4G433810585
DRIVER INFO MODULE (KPH) & ICM KIT MADE TO ORDER in24Hr
05MY 		$3,591.41 1
9 4G4315000AD
ANALOGUE CLOCK 		$641.77 1
10 7G3313D734BA
NON NAVIGATION SWITCHPACK WITH PAD LAMP
07MY 		$779.43 1
10 7G4313D734BA
NON NAVIGATION SWITCHPACK WITH PAD LAMP
07MY 		$771.57 1
10 7G3313D734AA
NAVIGATION SWITCHPACK WITH PAD LAMP
07MY 		$820.40 1
10 7G4313D734AA
NAVIGATION SWITCHPACK WITH PAD LAMP
07MY 		$812.14 1
10 7G3313D734JA
NON NAV SWITCHPACK ASSEMBLY WITH PAD LAMP
07MY 		$779.43 1
10 7G3313D734CA
NON NAV SWITCHPACK ASSEMBLY WITHOUT SIM
07MY 		$779.43 1
10 7G3313D734DA
NON NAV SWITCHPACK ASSEMBLY WITH SIM
07MY 		$779.43 1
10 7G3313D734EA
NAV SWITCHPACK ASSEMBLY WITHOUT SIM
07MY 		$836.87 1
10 7G3313D734FA
NAV SWITCHPACK ASSEMBLY WITH SIM
07MY 		$820.40 1
10 7G3313D734HA
NAV SWITCHPACK ASSEMBLY WITH PAD LAMP
07MY 		$820.40 1
10 6G3313D734IA
Switchpack, no nav without SIM, anthracite 		- 1 Enquire
10 4G4313D734FE
NON-NAV SWITCHPACK WITHOUT SIM 		$771.57 1
10 6G3313D734BA
NAV SWITCHPACK WITHOUT SIM 		$812.14 1
10 6G3313D734HA
Switchpack, no nav with SIM, anthracite 		- 1 Enquire
10 4G4313D734CE
NON-NAV SWITCHPACK WITH SIM 		$779.43 1
10 4G4313D734EE
NAV SWITCHPACK WITHOUT SIM 		$812.14 1
10 4G4313D734AE
NAVIGATION SWITCHPACK WITH SIM 		$820.40 1
11 4G433710223
RADIO VISOR PANEL
IN STOCK 		$282.69 1
13 4G4318C830DB
SUPPORT BRACKET
06MY from (V) A04019 		$206.21 1
13 4G4318C830DA
SUPPORT BRACKET
05MY 		$206.21 1
13 4G4313D734GB
SIM CARD HOLDER DRAWER
07MY 		$18.04 1
13 7G3313D734KA
GRAPHITE
07MY 		$18.04 1
13 6G3313D734KA
SIM CARD HOLDER DRAWER ANTHRACITE 		$18.04 1

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
