Aston Martin DB9 (2004-2012) - Air Con Lines Fittings (RHD)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AG4319972AA Tube - Air Conditioning Compressor to Condenser $704.11 To Order
AG4319972AA Tube - Air Conditioning Compressor to Condenser $704.11 To Order
Photo Part No Description Price (each) Stock
4G438910909PK O-Ring Compressor (Pack of 2) $5.37 IN STOCK
Photo Part No Description Price (each) Stock
4G438910910PK O Rings-DB9 & V8 Condenser (Pack of 2) $5.37 IN STOCK
Photo Part No Description Price (each) Stock
703199 Bolt M6x30 HEX FLG Chrome Free $0.40 IN STOCK
703199 Bolt M6x30 HEX FLG Chrome Free $0.40 IN STOCK
Photo Part No Description Price (each) Stock
699634 P-Clip,13 x 15 x M6 $1.98 IN STOCK
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.19 IN STOCK
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.19 IN STOCK
Photo Part No Description Price (each) Stock
AD4319D719AA TUBE ASSY - COND TO R/DRIER $157.42 To Order
Photo Part No Description Price (each) Stock
4G438910908PK O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2) $5.28 IN STOCK
Photo Part No Description Price (each) Stock
701180 Clip, 14 x 4, Push In $1.28 To Order
Photo Part No Description Price (each) Stock
4G4319E891AD Air Conditioning Drier $265.48 IN STOCK
Photo Part No Description Price (each) Stock
AG4319A705AA Tube Assy, Evaporator Outlet $305.45 To Order
AG4319A705AA Tube Assy, Evaporator Outlet $305.45 To Order
Photo Part No Description Price (each) Stock
701181 Clip, 16 x 6.5 x 1.5-6 $2.91 IN STOCK
Photo Part No Description Price (each) Stock
703151 Screw M6x16 Washer Hex HD Chrome Free $0.47 IN STOCK
Photo Part No Description Price (each) Stock
4G436147XAD BRACKET - AIRCON / ELECTRICAL $37.92 To Order
Photo Part No Description Price (each) Stock
AG4319835CA Tube Assy, Receiver Drier to Evaporator $174.56 To Order
AG4319835CA Tube Assy, Receiver Drier to Evaporator $174.56 To Order
Photo Part No Description Price (each) Stock
6G438910446PK O RING-V8 EVAPORATOR PACK OF 2 $8.63 To Order
Photo Part No Description Price (each) Stock
701182 Clip, Pipe Swivel $1.86 To Order
Photo Part No Description Price (each) Stock
4G434073AAA CLAMP - LIQ $4.80 To Order
Photo Part No Description Price (each) Stock
AG4319A705CA Tube Assy, A/C Evaporator Outlet, Upper $321.43 To Order
AG4319A705CA Tube Assy, A/C Evaporator Outlet, Upper $321.43 To Order
Photo Part No Description Price (each) Stock
701172 Clip, 16 x 2.8 - 3.3 $0.40 IN STOCK
Photo Part No Description Price (each) Stock
703201 SCREW M8 x 30 HEX FLANGE CHROME FREE $0.63 IN STOCK
703172PK Screw M8 x 25 Pan Head (Pack of 10) $5.23 IN STOCK
Photo Part No Description Price (each) Stock
1R128910192 Switch, A/C High Pressure $520.27 To Order
Photo Part No Description Price (each) Stock
6L2419D594BA Switch, AC, pressure cutoff Enquire To Order
AG438911295 SW ASY-A/C PRES CTOF $556.55 To Order
4G43717B19AB Air con refrigerant $4,739.31 To Order
View All

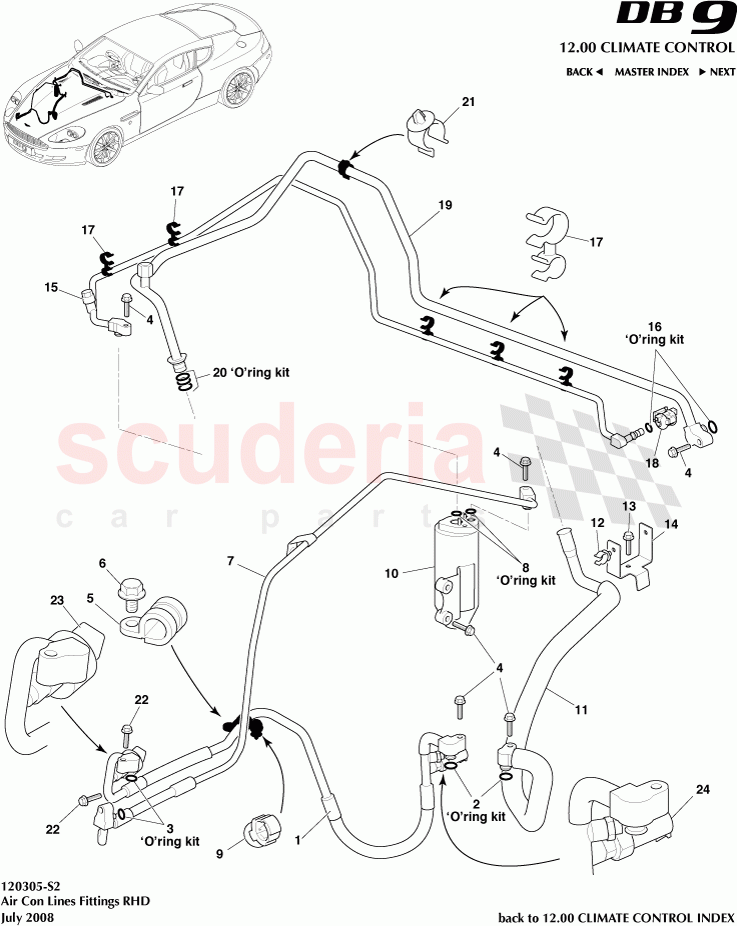

Air Con Lines Fittings (RHD) of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AG4319972AA
Tube - Air Conditioning Compressor to Condenser
Up to 17/9/07 		$704.11 1
1 AG4319972AA
Tube - Air Conditioning Compressor to Condenser
From 17/9/07 		$704.11 1
2 4G438910909PK
O-Ring Compressor (Pack of 2)
IN STOCK 		$5.37 1
3 4G438910910PK
O Rings-DB9 & V8 Condenser (Pack of 2)
IN STOCK 		$5.37 1
4 703199
Bolt M6x30 HEX FLG Chrome Free
08MY From (V) A09110
IN STOCK 		$0.40 7
4 703199
Bolt M6x30 HEX FLG Chrome Free
IN STOCK 		$0.40 7
5 699634
P-Clip,13 x 15 x M6
IN STOCK 		$1.98 1
6 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
08MY From (V) A09110
IN STOCK 		$0.19 1
6 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
07MY
IN STOCK 		$0.19 1
7 AD4319D719AA
TUBE ASSY - COND TO R/DRIER 		$157.42 1
8 4G438910908PK
O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2)
IN STOCK 		$5.28 1
9 701180
Clip, 14 x 4, Push In 		$1.28 3
10 4G4319E891AD
Air Conditioning Drier
IN STOCK 		$265.48 1
11 AG4319A705AA
Tube Assy, Evaporator Outlet
08MY From (V) A09110 		$305.45 1
11 AG4319A705AA
Tube Assy, Evaporator Outlet
07MY 		$305.45 1
12 701181
Clip, 16 x 6.5 x 1.5-6
IN STOCK 		$2.91 2
13 703151
Screw M6x16 Washer Hex HD Chrome Free
IN STOCK 		$0.47 1
14 4G436147XAD
BRACKET - AIRCON / ELECTRICAL 		$37.92 1
15 AG4319835CA
Tube Assy, Receiver Drier to Evaporator
08MY From (V) A09110 		$174.56 1
15 AG4319835CA
Tube Assy, Receiver Drier to Evaporator
07MY 		$174.56 1
16 6G438910446PK
O RING-V8 EVAPORATOR PACK OF 2 		$8.63 1
17 701182
Clip, Pipe Swivel 		$1.86 5
18 4G434073AAA
CLAMP - LIQ 		$4.80 1
19 AG4319A705CA
Tube Assy, A/C Evaporator Outlet, Upper
08MY From (V) A09110 		$321.43 1
19 AG4319A705CA
Tube Assy, A/C Evaporator Outlet, Upper
07MY 		$321.43 1
20 4G438910912
O RING
IN STOCK 		$6.08 1
21 701172
Clip, 16 x 2.8 - 3.3
IN STOCK 		$0.40 3
22 703201
SCREW M8 x 30 HEX FLANGE CHROME FREE
08MY From (V) A09110
IN STOCK 		$0.63 2
22 703172PK
Screw M8 x 25 Pan Head (Pack of 10)
07MY
IN STOCK 		$5.23 2
23 1R128910192
Switch, A/C High Pressure 		$520.27 1
24 6L2419D594BA
Switch, AC, pressure cutoff 		- 1 Enquire
24 AG438911295
SW ASY-A/C PRES CTOF 		$556.55 1
24 4G43717B19AB
Air con refrigerant 		$4,739.31 -
