Harness, Body

Aston Martin DB9 (2004-2012)

Find Your Part

Aston Martin DB9 (2004-2012) - Harness, Body

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AG4314A005CB RH CONVERTIBLE CABIN HARNESS ALPINE / NO ADS $12,287.42 To Order
AG4314A005DB LH CONVERTIBLE CABIN HARNESS Enquire To Order
AG4314A005AB HARNESS ASSY CABIN RHD ALPINE / NO ADS $3,309.24 To Order
...and 42 more part variants. See table on right for more details.
View All

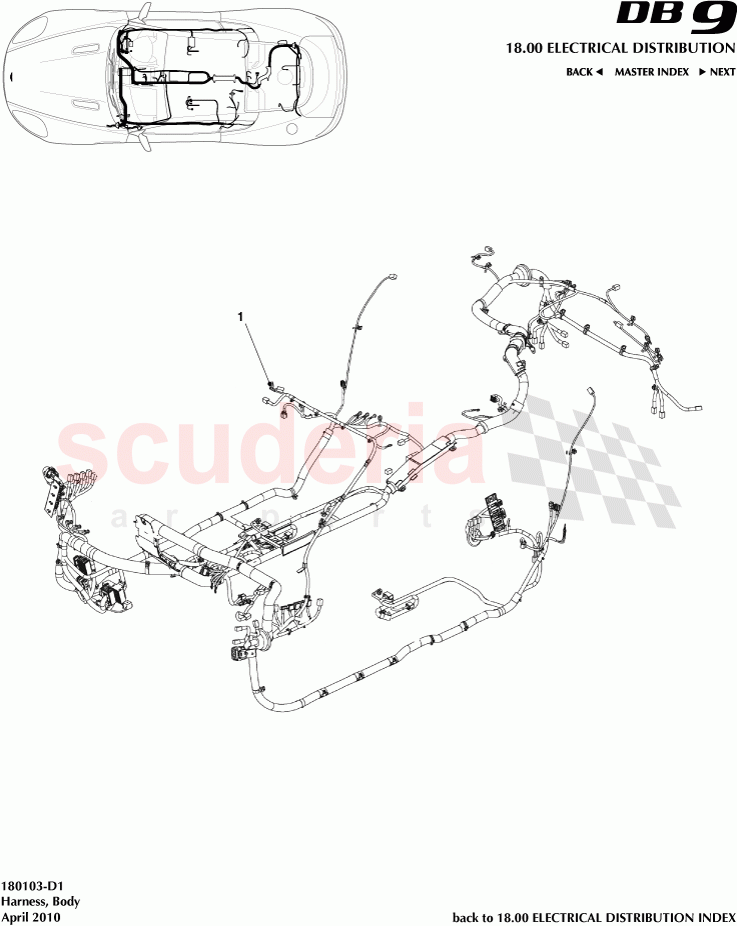

Harness, Body of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AG4314A005CB
RH CONVERTIBLE CABIN HARNESS ALPINE / NO ADS
RHD, Alpine, No ADS 10.7MY 		$12,287.42 1
1 AG4314A005DB
LH CONVERTIBLE CABIN HARNESS
LHD, Alpine, No ADS 10.7MY 		- 1 Enquire
1 AG4314A005AB
HARNESS ASSY CABIN RHD ALPINE / NO ADS
RHD, Alpine, No ADS 10.7MY 		$3,309.24 1
1 AG4314A005BB
HARNESS ASSY CABIN LHD ALPINE/ NO ADS
LHD, Alpine, No ADS 10.7MY 		- 1 Enquire
1 8G4314A005CC
RH CONVERTIBLE CABIN HARNESS
RHD 08MY From (V) A09110 		$7,859.01 1
1 8G4314A005DC
LHD CONV CABIN HARNESS ASSY
LHD 08MY From (V) A09110 		$7,227.31 1
1 8G4314A005AC
HARNESS ASSY CABIN RHD
RHD 08MY From (V) A09110 		$3,735.60 1
1 8G4314A005BC
HARNESS ASSY CABIN LHD
LHD 08MY From (V) A09110 		$3,804.80 1
1 AG4314A005GB
RH CONVERTIBLE CABIN HARNESS B&O/ NON ADS
RHD, B&O, No ADS 10.7MY 		$3,939.62 1
1 AG4314A005LB
RH CONVERTIBLE CABIN HARNESS ALPINE + ADS
RHD, Alpine, ADS 10.7MY 		- 1 Enquire
1 AG4314A005HB
LH CONVERTIBLE CABIN HARNESS B+O / NO ADS
LHD, B&O, No ADS 10.7MY 		$3,939.62 1
1 AG4314A005MB
LH CONVERTIBLE CABIN HARNESS ALPINE + ADS
LHD, Alpine, ADS 10.7MY 		- 1 Enquire
1 AG4314A005EB
HARNESS ASSY CABIN RHD B&O NON ADS
RHD, B&O, No ADS 10.7MY 		$3,419.63 1
1 AG4314A005JB
HARNESS ASSY CABIN RHD ALPINE & ADS
RHD, Alpine, ADS 10.7MY 		- 1 Enquire
1 AG4314A005FB
HARNESS ASSY CABIN LHD B&O / NON ADS
LHD, B&O, No ADS 10.7MY 		$3,419.63 1
1 AG4314A005KB
HARNESS ASSY CABIN LHD ALPINE &ADS
LHD, Alpine, ADS 10.7MY 		- 1 Enquire
1 BG4314A005DC
Harness assy, cabin, VOLANTE
RHD, Alpine, ADS 11MY 		- 1 Enquire
1 BG4314A005CC
Harness assy, cabin, VOLANTE
LHD, Alpine, ADS 11MY 		$5,265.87 1
1 BG4314A005BC
Harness assy, cabin, COUPE
RHD, Alpine, ADS 11MY 		- 1 Enquire
1 BG4314A005AC
Harness assy, cabin, COUPE
LHD, Alpine, ADS 11MY 		- 1 Enquire
1 AG4314A005QB
Harness assy, cabin, VOLANTE
RHD, B&O, ADS 10.7MY 		$23,218.61 1
1 AG4314A005RB
Harness assy, cabin, VOLANTE
LHD, B&O, ADS 10.7MY 		$11,139.77 1
1 AG4314A005NB
HARNESS ASSY CABIN RHD B&O + ADS
RHD, B&O, ADS 10.7MY 		$3,423.03 1
1 AG4314A005PB
HARNESS ASSY CABIN LHD B&O + ADS
LHD, B&O, ADS 10.7MY 		$11,225.01 1
1 BG4314A005HC
Harness assy, cabin, VOLANTE
RHD, B&O, ADS 11MY 		$26,729.24 1
1 BG4314A005GC
Harness assy, cabin, VOLANTE
LHD, B&O, ADS 11MY 		- 1 Enquire
1 BG4314A005FC
Harness assy, cabin, COUPE
RHD, B&O, ADS 11MY 		$11,981.83 1
1 BG4314A005EC
Harness assy, cabin, COUPE
LHD, B&O, ADS 11MY 		- 1 Enquire
1 9G4314A005GA
Harness assy, cabin, VOLANTE
RHD 9.5MY 		- 1 Enquire
1 9G4314A005HA
Harness assy, cabin, VOLANTE
LHD 9.5MY 		- 1 Enquire
1 9G4314A005EC
HARNESS ASSY CABIN RHD
RHD 9.5MY 		$4,073.29 1
1 9G4314A005FC
HARNESS ASSY CABIN LHD
LHD 9.5MY 		$13,552.88 1
1 7G4314A005CE
RH CONVERTIBLE CABIN HARNESS
RHD 07MY 		$2,647.63 1
1 9G4314A005CC
RH CONVERTIBLE CABIN HARNESS
RHD 09MY 		$4,412.77 1
1 91976
LH CONVERTIBLE CABIN HARNESS
LHD 07MY 		- 1 Enquire
1 9G4314A005DC
LH CONVERTIBLE CABIN HARNESS
LHD 09MY 		$15,211.18 1
1 7G4314A005AE
RHD COUPE CABIN HARNESS
RHD 07MY 		$11,726.45 1
1 9G4314A005AF
HARNESS ASSY CABIN RHD
RHD 09MY 		$3,827.16 1
1 7G4314A005BE
HARNESS ASSY CABIN LHD
LHD 07MY 		$3,199.49 1
1 9G4314A005BF
HARNESS ASSY CABIN LHD
LHD 09MY 		$3,513.27 1
1 4G4314284AB
REAR QUARTER LIGHT CONVERTIBLE LINK HARNESS
Volante 		$81.13 1
1 6G4314A005HA
RH CONVERTIBLE CABIN HARNESS
RHD 		$2,663.39 1
1 6G4314A005FA
LH CONVERTIBLE CABIN HARNESS
LHD 		$2,628.78 1
1 4G4314A005EA
HARNESS ASSY CABIN RHD
RHD 		$2,282.86 1
1 4G4314A005FA
HARNESS ASSY CABIN LHD
LHD 		$2,248.26 1
