Harness, Instrument Panel (B&o)

Aston Martin DB9 (2004-2012)

Find Your Part

Aston Martin DB9 (2004-2012) - Harness, Instrument Panel (B&O)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
9G4314401AC HARNESS ASSY FACIA RHD MANUAL $849.46 To Order
9G4314401BC HARNESS ASSY FACIA LHD MANUAL $815.49 To Order
Photo Part No Description Price (each) Stock
9G4314B079CC CENTRE STACK HARNESS $560.63 To Order
9G4314B079DC CENTRE STACK HARNESS $509.67 To Order
Photo Part No Description Price (each) Stock
8D339137BA Harness Assembly, Passive Anti Theft System (PATS) Link $32.33 To Order
Photo Part No Description Price (each) Stock
9D3314N003AA Inline bracket, Instrument Panel (IP), RHS $24.21 To Order
Photo Part No Description Price (each) Stock
9D3314N003BB Inline bracket, Instrument Panel (IP), LHS $27.96 To Order
Photo Part No Description Price (each) Stock
703735 Screw, M5 x 12, Pan Head $0.50 To Order
View All

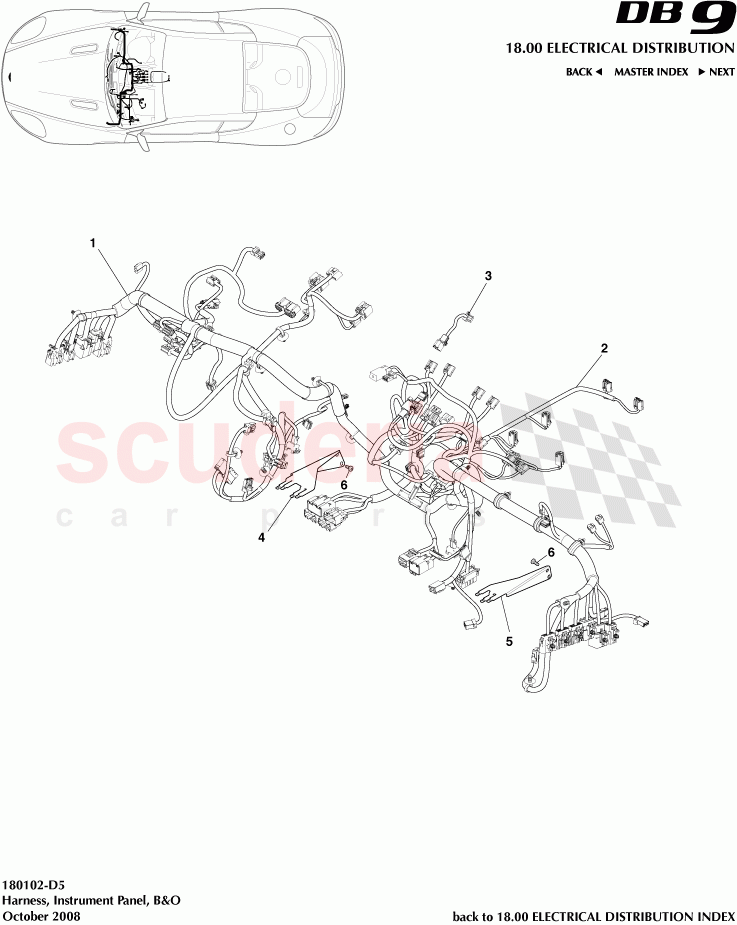

Harness, Instrument Panel (B&O) of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 9G4314401AC
HARNESS ASSY FACIA RHD MANUAL 		$849.46 1
1 9G4314401BC
HARNESS ASSY FACIA LHD MANUAL 		$815.49 1
2 9G4314B079CC
CENTRE STACK HARNESS 		$560.63 1
2 9G4314B079DC
CENTRE STACK HARNESS 		$509.67 1
3 8D339137BA
Harness Assembly, Passive Anti Theft System (PATS) Link 		$32.33 1
4 9D3314N003AA
Inline bracket, Instrument Panel (IP), RHS 		$24.21 1
5 9D3314N003BB
Inline bracket, Instrument Panel (IP), LHS 		$27.96 1
6 703735
Screw, M5 x 12, Pan Head 		$0.50 4
