Evaporator And Heater

Aston Martin DB9 (2004-2012)

Find Your Part

Aston Martin DB9 (2004-2012) - Evaporator and Heater

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head $0.32 IN STOCK
4G4318N407BC Auto Heater Unit, Including ECU, RHD $2,232.91 To Order
4G4318N407AD Auto Heater Unit, Including ECU, LHD $2,232.91 To Order
Photo Part No Description Price (each) Stock
4G4319N574AA Seal, Vent Air Duct $1.52 To Order
Photo Part No Description Price (each) Stock
4G4319D692AA Seal, A/C Evaporator Tub Outer $11.80 To Order
Photo Part No Description Price (each) Stock
4G4319A699BB DRAIN TUBE CONDENSATION - RHD $23.31 To Order
4G4319A699AB DRAIN TUBE CONDENSATION - LHD $26.68 IN STOCK
Photo Part No Description Price (each) Stock
701172 Clip, 16 x 2.8 - 3.3 $0.40 IN STOCK
Photo Part No Description Price (each) Stock
4G4319F616AA A/C Evaporator & Tube Assy $169.86 To Order
4G4319850AA Evaporator A/C, RHD $904.01 IN STOCK
Photo Part No Description Price (each) Stock
4G43ALR8679AA Screw, M5 x 40, Hex Socket $1.28 IN STOCK
Photo Part No Description Price (each) Stock
4G4318D673AA Sealing, Heater Core Tube to Heater Case $13.10 To Order
4G4318693AA Sealing, Heater Core Tube to Heater Case $13.19 To Order
4G4318D669AA Sealing, Heater Core, LHD $19.52 To Order
Photo Part No Description Price (each) Stock
4G4318A271BA Core & Tube Assy Heater, RHD $445.78 To Order
4G4318D671AA Core & Tube Assy, heater, LHD $164.49 To Order
Photo Part No Description Price (each) Stock
4G4319F615AA Transistor Power A/C $372.70 IN STOCK
Photo Part No Description Price (each) Stock
4G43N104084AA Screw, M5 x 16 Enquire To Order
Photo Part No Description Price (each) Stock
4G4319F598AA Sensor A/C Evaporator Temperature $19.45 IN STOCK
Photo Part No Description Price (each) Stock
4G4319924BB Blower Assy, RHD $655.94 To Order
4G4319925AB Blower Assy, LHD $655.94 To Order
Photo Part No Description Price (each) Stock
703612 Nut & Washer, M6, HVAC to XCB $0.44 IN STOCK
Photo Part No Description Price (each) Stock
4G4313ZE1AAPK Pollen and Odour Filter (Pack of 2) $77.53 IN STOCK
Photo Part No Description Price (each) Stock
4G4319F612AA Motor and Fan Assy A/C, RHD $711.86 To Order
4G4319F613AA Motor and Fan Assy A/C, LHD $213.32 To Order
Photo Part No Description Price (each) Stock
4G43N104301AA SCREW M5 x 16 HX SPCL $0.19 To Order
Photo Part No Description Price (each) Stock
4G4318535BF Bracket, Heater Blower Mounting, RHD $63.21 To Order
4G4318535AE Bracket, Heater Blower Mounting, LHD $63.21 To Order
Photo Part No Description Price (each) Stock
703745 SCREW-M8x35 FLG 8.8 $0.68 To Order
Photo Part No Description Price (each) Stock
703137 Washer, M8, HVAC to bracket Enquire To Order
Photo Part No Description Price (each) Stock
6G3358762AA RIVNUT M8 LOW PROFILE 0.8 3MM ZN/N $0.49 To Order
Photo Part No Description Price (each) Stock
702944 Nut, M6, Hex Flanged Head $0.94 IN STOCK
Photo Part No Description Price (each) Stock
4G4318A250AA Servo Assy, A/C Heater Fresh/Recirculate Air RHD $327.37 To Order
4G4318A251AA Servo Assy, A/C Heater Fresh/Recirculate Air LHD $327.37 To Order
Photo Part No Description Price (each) Stock
692785 SCREW M4 x 16 POSI PAN HEAD ZINC PLATED $1.82 To Order
Photo Part No Description Price (each) Stock
4G4318D674AA Servo Assy, A/C Heater Air Mix, RHD $327.37 To Order
4G4318D675AA Servo Assy, A/C Heater Air Mix, LHD $327.37 To Order
Photo Part No Description Price (each) Stock
4G4318E246AA Servo Assy, A/C Heater Mode, RHD $327.37 To Order
4G4318E247AA Servo Assy, A/C Heater Mode, LHD $327.37 To Order
Photo Part No Description Price (each) Stock
4G4314F164AA Control Assy, A/C & heater temp Enquire To Order
Photo Part No Description Price (each) Stock
4G43121205AA Bracket, ECU mounting, LHD Only Enquire To Order
Photo Part No Description Price (each) Stock
692785 SCREW M4 x 16 POSI PAN HEAD ZINC PLATED $1.82 To Order
View All

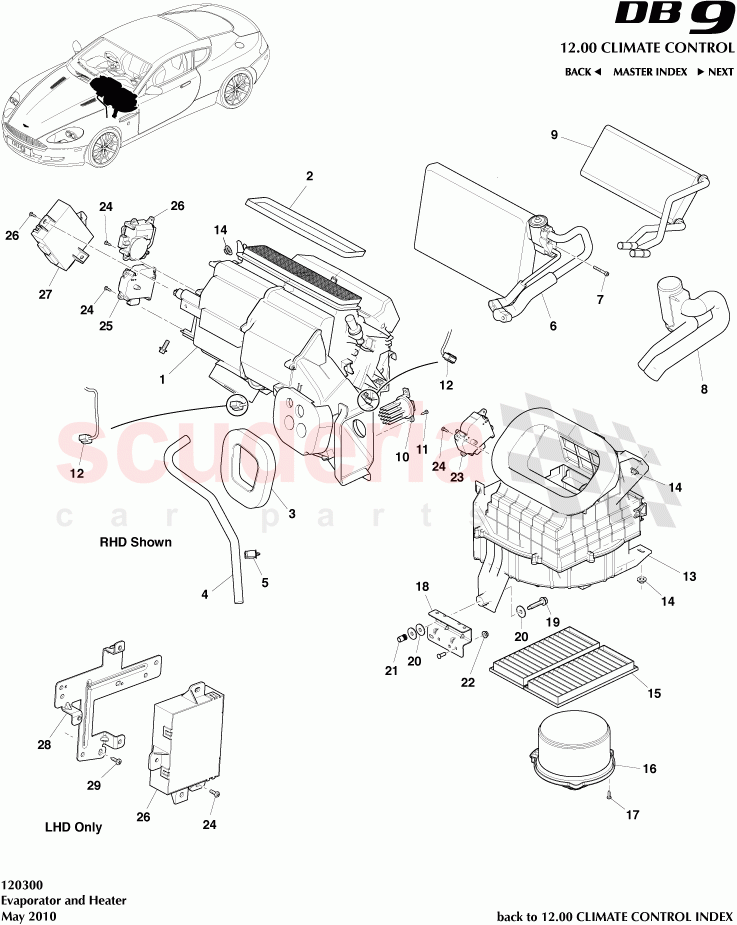

Evaporator and Heater of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 703265
Screw, M6 x 16, Hex Flange Head
IN STOCK 		$0.32 1
1 4G4318N407BC
Auto Heater Unit, Including ECU, RHD 		$2,232.91 1
1 4G4318N407AD
Auto Heater Unit, Including ECU, LHD 		$2,232.91 1
2 4G4319N574AA
Seal, Vent Air Duct 		$1.52 1
3 4G4319D692AA
Seal, A/C Evaporator Tub Outer 		$11.80 1
4 4G4319A699BB
DRAIN TUBE CONDENSATION - RHD 		$23.31 1
4 4G4319A699AB
DRAIN TUBE CONDENSATION - LHD
IN STOCK 		$26.68 1
5 701172
Clip, 16 x 2.8 - 3.3
IN STOCK 		$0.40 1
6 4G4319F616AA
A/C Evaporator & Tube Assy 		$169.86 1
6 4G4319850AA
Evaporator A/C, RHD
IN STOCK 		$904.01 1
7 4G43ALR8679AA
Screw, M5 x 40, Hex Socket
IN STOCK 		$1.28 2
8 4G4318D673AA
Sealing, Heater Core Tube to Heater Case 		$13.10 1
8 4G4318693AA
Sealing, Heater Core Tube to Heater Case 		$13.19 1
8 4G4318D669AA
Sealing, Heater Core, LHD 		$19.52 1
9 4G4318A271BA
Core & Tube Assy Heater, RHD 		$445.78 1
9 4G4318D671AA
Core & Tube Assy, heater, LHD 		$164.49 1
10 4G4319F615AA
Transistor Power A/C
IN STOCK 		$372.70 1
11 4G43N104084AA
Screw, M5 x 16 		- 2 Enquire
12 4G4319F598AA
Sensor A/C Evaporator Temperature
IN STOCK 		$19.45 2
13 4G4319924BB
Blower Assy, RHD 		$655.94 1
13 4G4319925AB
Blower Assy, LHD 		$655.94 1
14 703612
Nut & Washer, M6, HVAC to XCB
IN STOCK 		$0.44 5
15 4G4313ZE1AAPK
Pollen and Odour Filter (Pack of 2)
IN STOCK 		$77.53 1
16 4G4319F612AA
Motor and Fan Assy A/C, RHD 		$711.86 1
16 4G4319F613AA
Motor and Fan Assy A/C, LHD 		$213.32 1
17 4G43N104301AA
SCREW M5 x 16 HX SPCL 		$0.19 3
18 4G4318535BF
Bracket, Heater Blower Mounting, RHD 		$63.21 1
18 4G4318535AE
Bracket, Heater Blower Mounting, LHD 		$63.21 1
19 703745
SCREW-M8x35 FLG 8.8 		$0.68 1
20 703137
Washer, M8, HVAC to bracket 		- 2 Enquire
21 6G3358762AA
RIVNUT M8 LOW PROFILE 0.8 3MM ZN/N 		$0.49 1
22 702944
Nut, M6, Hex Flanged Head
IN STOCK 		$0.94 2
23 4G4318A250AA
Servo Assy, A/C Heater Fresh/Recirculate Air RHD 		$327.37 1
23 4G4318A251AA
Servo Assy, A/C Heater Fresh/Recirculate Air LHD 		$327.37 1
24 692785
SCREW M4 x 16 POSI PAN HEAD ZINC PLATED 		$1.82 12
25 4G4318D674AA
Servo Assy, A/C Heater Air Mix, RHD 		$327.37 1
25 4G4318D675AA
Servo Assy, A/C Heater Air Mix, LHD 		$327.37 1
26 4G4318E246AA
Servo Assy, A/C Heater Mode, RHD 		$327.37 1
26 4G4318E247AA
Servo Assy, A/C Heater Mode, LHD 		$327.37 1
27 4G4314F164AA
Control Assy, A/C & heater temp 		- 1 Enquire
28 4G43121205AA
Bracket, ECU mounting, LHD Only 		- 1 Enquire
29 692785
SCREW M4 x 16 POSI PAN HEAD ZINC PLATED 		$1.82 3
