McLaren Elva - 26 - AIR INDUCTION SYSTEMS - AIS - 26.1 - AIS - LOW PRESSURE SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
15FA346CP AIR FILTER HOUSING $424.39 To Order
Photo Part No Description Price (each) Stock
14F0362CP SENSOR - MASS AIR FLOW $285.86 To Order
Photo Part No Description Price (each) Stock
26FA206SP ASSY - AIR FILTER RETAINER - LH Enquire To Order
Photo Part No Description Price (each) Stock
26FA220SP ASSY - AIR FILTER RETAINER - RH Enquire To Order
Photo Part No Description Price (each) Stock
00RB031 CLAMP - HOSE - 90-110 Enquire To Order
Photo Part No Description Price (each) Stock
00RB030 HOSE CLAMP - 60-80 - NORMA TORRO Enquire To Order
Photo Part No Description Price (each) Stock
15FA028CP TUBE - CLEAR AIR DUCT $65.21 To Order
Photo Part No Description Price (each) Stock
15FA188CP COUPLING SLEEVE - CLEAN AIR DUCT $65.21 To Order
Photo Part No Description Price (each) Stock
15FA192CP RESONATOR - CLEAN AIR DUCT - LH $563.01 To Order
Photo Part No Description Price (each) Stock
15FA193CP RESONATOR - CLEAN AIR DUCT - RH $563.01 To Order
Photo Part No Description Price (each) Stock
00RB228 CLMP-HOSE-WORM DR CT-110X9-SS- Enquire To Order
Photo Part No Description Price (each) Stock
26FA091SP ASSY - DAD TO POROUS - RH $7,735.76 To Order
Photo Part No Description Price (each) Stock
26FA090SP ASSY - DAD TO POROUS - LH $7,735.76 To Order
Photo Part No Description Price (each) Stock
00RA689 BTN HD FL-M6X12-SS BLACK TORX - BTN HD FL-M6X12-SS BLACK TORX Enquire To Order
Photo Part No Description Price (each) Stock
26FA103SP ASSY - FRAME - POROUS DUCT LH $3,767.08 To Order
Photo Part No Description Price (each) Stock
26FA104SP ASSY - FRAME - POROUS DUCT RH $3,767.08 To Order
Photo Part No Description Price (each) Stock
00RA363 SCREW - TORX - 4X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RG019 SWIVEL - 6.5X10.5 FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
00RA581 BOLT - HEX HEAD - FLANGE - M6X30 Enquire To Order
Photo Part No Description Price (each) Stock
00RC043 WASHER - M6XOD25 Enquire To Order
Photo Part No Description Price (each) Stock
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
26FA246SP AIR FILTER $192.90 IN STOCK
View All

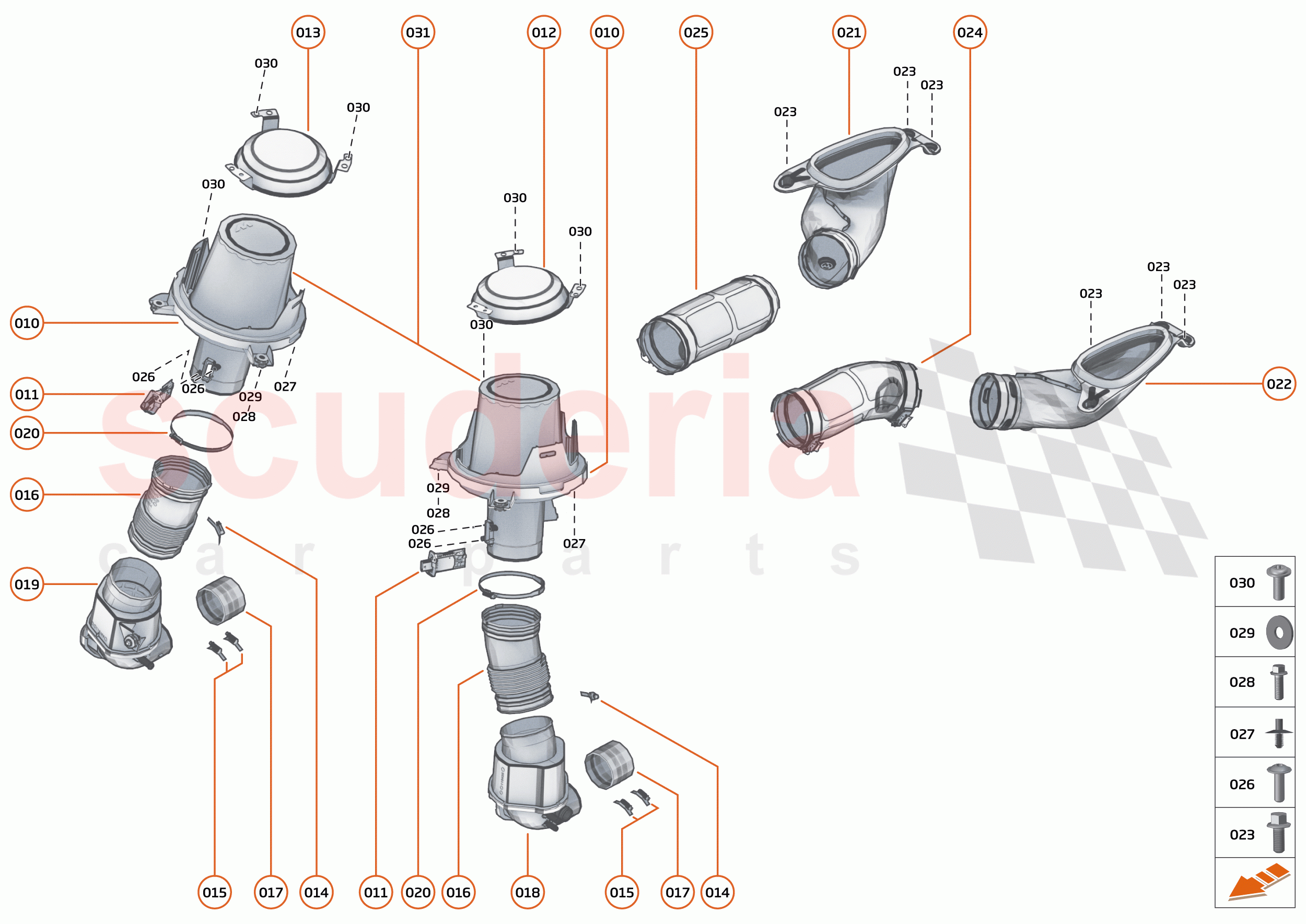

26 - AIR INDUCTION SYSTEMS - AIS - 26.1 - AIS - LOW PRESSURE SYSTEM of McLaren McLaren Elva Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 15FA346CP
AIR FILTER HOUSING 		$424.39 2
011 14F0362CP
SENSOR - MASS AIR FLOW 		$285.86 2
012 26FA206SP
ASSY - AIR FILTER RETAINER - LH 		- 1 Enquire
013 26FA220SP
ASSY - AIR FILTER RETAINER - RH 		- 1 Enquire
014 00RB031
CLAMP - HOSE - 90-110 		- 2 Enquire
015 00RB030
HOSE CLAMP - 60-80 - NORMA TORRO 		- 4 Enquire
016 15FA028CP
TUBE - CLEAR AIR DUCT 		$65.21 2
017 15FA188CP
COUPLING SLEEVE - CLEAN AIR DUCT 		$65.21 2
018 15FA192CP
RESONATOR - CLEAN AIR DUCT - LH 		$563.01 1
019 15FA193CP
RESONATOR - CLEAN AIR DUCT - RH 		$563.01 1
020 00RB228
CLMP-HOSE-WORM DR CT-110X9-SS- 		- 2 Enquire
021 26FA091SP
ASSY - DAD TO POROUS - RH 		$7,735.76 1
022 26FA090SP
ASSY - DAD TO POROUS - LH 		$7,735.76 1
023 00RA689
BTN HD FL-M6X12-SS BLACK TORX - BTN HD FL-M6X12-SS BLACK TORX 		- 6 Enquire
024 26FA103SP
ASSY - FRAME - POROUS DUCT LH 		$3,767.08 1
025 26FA104SP
ASSY - FRAME - POROUS DUCT RH 		$3,767.08 1
026 00RA363
SCREW - TORX - 4X12 		- 4 Enquire
027 00RG019
SWIVEL - 6.5X10.5 FIRTREE BASE 		- 2 Enquire
028 00RA581
BOLT - HEX HEAD - FLANGE - M6X30 		- 2 Enquire
029 00RC043
WASHER - M6XOD25 		- 2 Enquire
030 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK 		- 6 Enquire
031 26FA246SP
AIR FILTER
AIR FILTER;
IN STOCK 		$192.90 2
