26 - AIR INDUCTION SYSTEMS - AIS - 26.2 - AIS - HIGH PRESSURE SYSTEM of McLaren McLaren Elva

View All

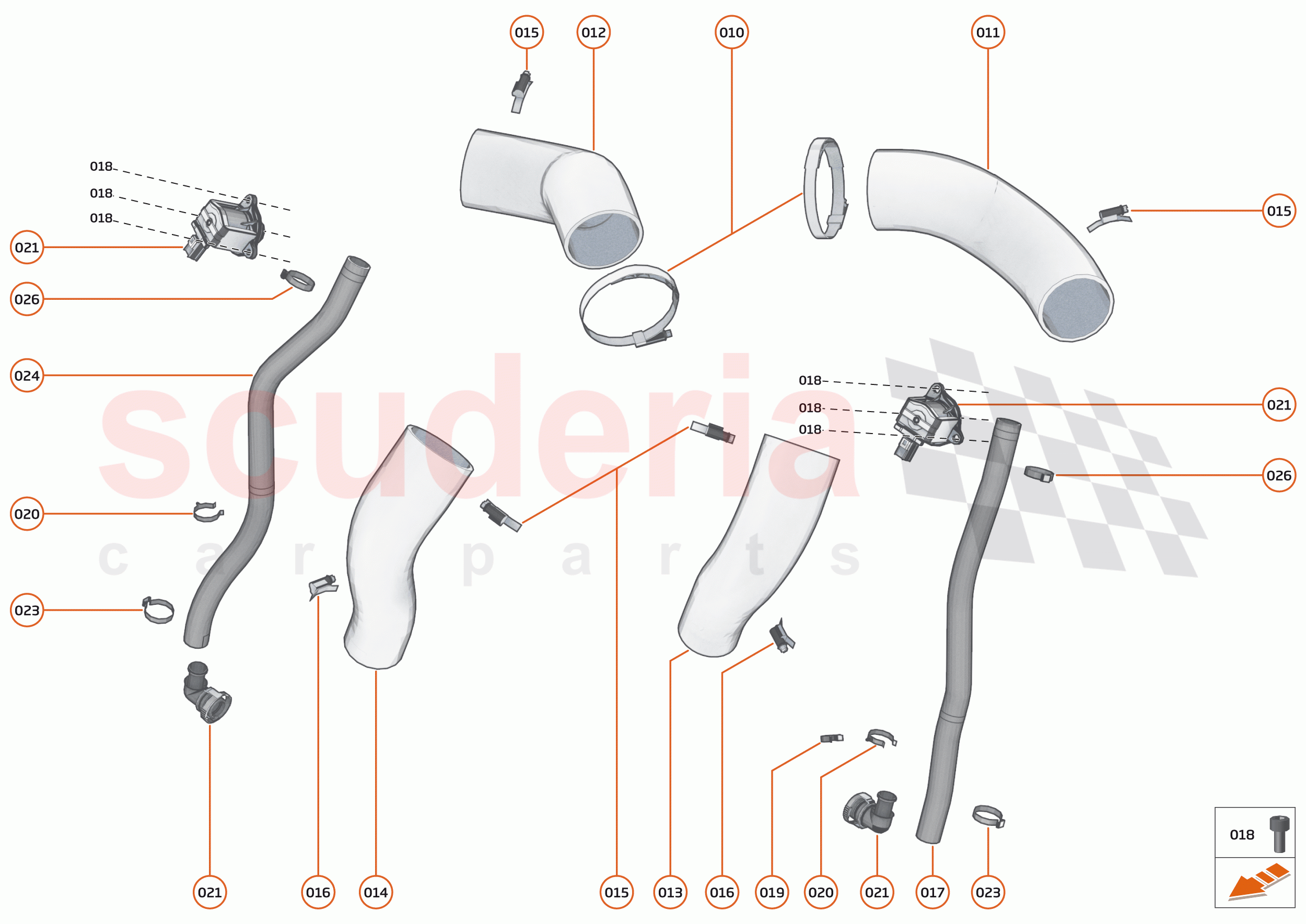

McLaren Elva - 26 - AIR INDUCTION SYSTEMS - AIS - 26.2 - AIS - HIGH PRESSURE SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RB188	HOSE CLAMP - 90X12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15FA016CP	HOSE - HIGH PRESSURE AIR - WCAC TO THROTTLE - LH	$352.87	To Order

Photo	Part No	Description	Price (each)	Stock
	15FA017CP	HOSE - HIGH PRESSURE AIR - WCAC TO THROTTLE - RH	$352.87	To Order

Photo	Part No	Description	Price (each)	Stock
	15FA018CP	HOSE - TURBOCHARGER - WATER CHARGE AIR COOLER - LH	$336.56	To Order

Photo	Part No	Description	Price (each)	Stock
	15FA019CP	HOSE - TURBOCHARGER - WATER CHARGE AIR COOLER - RH	$363.08	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB030	HOSE CLAMP - 60-80 - NORMA TORRO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB049	HOSE CLAMP - 40-60MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15FA253CP	HOSE - WCAC TO CLEAN AIR DUCT - LH	$131.10	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA580	SCREW - M6X1X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB032	CLIP - 13-14MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG018	SWIVEL CLIP - 22-24MM -MALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15FA337CP	HOUSING - EDV STAND	$282.41	To Order
	13F0422CP	DUMP VALVE - ELECTRIC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB139	STEPLESS EAR CLAMP - 34.6-706DR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15FA252CP	HOSE - WCAC TO CLEAN AIR DUCT - RH	$131.10	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB154	Hose Clamp - Oetiker - 27.1	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RB188	HOSE CLAMP - 90X12	00RB188 HOSE CLAMP - 90X12	-	2	Enquire
011	15FA016CP	HOSE - HIGH PRESSURE AIR - WCAC TO THROTTLE - LH	15FA016CP HOSE - HIGH PRESSURE AIR - WCAC TO THROTTLE - LH	$352.87	1
012	15FA017CP	HOSE - HIGH PRESSURE AIR - WCAC TO THROTTLE - RH	15FA017CP HOSE - HIGH PRESSURE AIR - WCAC TO THROTTLE - RH	$352.87	1
013	15FA018CP	HOSE - TURBOCHARGER - WATER CHARGE AIR COOLER - LH	15FA018CP HOSE - TURBOCHARGER - WATER CHARGE AIR COOLER - LH	$336.56	1
014	15FA019CP	HOSE - TURBOCHARGER - WATER CHARGE AIR COOLER - RH	15FA019CP HOSE - TURBOCHARGER - WATER CHARGE AIR COOLER - RH	$363.08	1
015	00RB030	HOSE CLAMP - 60-80 - NORMA TORRO	00RB030 HOSE CLAMP - 60-80 - NORMA TORRO	-	4	Enquire
016	00RB049	HOSE CLAMP - 40-60MM	00RB049 HOSE CLAMP - 40-60MM	-	2	Enquire
017	15FA253CP	HOSE - WCAC TO CLEAN AIR DUCT - LH	15FA253CP HOSE - WCAC TO CLEAN AIR DUCT - LH	$131.10	1
018	00RA580	SCREW - M6X1X16	00RA580 SCREW - M6X1X16	-	3	Enquire
019	00RB032	CLIP - 13-14MM - FEMALE	00RB032 CLIP - 13-14MM - FEMALE	-	1	Enquire
020	00RG018	SWIVEL CLIP - 22-24MM -MALE	00RG018 SWIVEL CLIP - 22-24MM -MALE	-	1	Enquire
021	15FA337CP	HOUSING - EDV STAND	15FA337CP HOUSING - EDV STAND	$282.41	1
021	13F0422CP	DUMP VALVE - ELECTRIC	13F0422CP DUMP VALVE - ELECTRIC	-	1	Enquire
022	15FA338CP	HOSE - EDV	15FA338CP HOSE - EDV HOSE - EDV;	$12.65	1
023	00RB139	STEPLESS EAR CLAMP - 34.6-706DR	00RB139 STEPLESS EAR CLAMP - 34.6-706DR	-	2	Enquire
024	15FA252CP	HOSE - WCAC TO CLEAN AIR DUCT - RH	15FA252CP HOSE - WCAC TO CLEAN AIR DUCT - RH	$131.10	1
026	00RB154	Hose Clamp - Oetiker - 27.1	00RB154 Hose Clamp - Oetiker - 27.1	-	1	Enquire
