29 - Exhaust - 29.2 - Muffler And Tail Pipes

McLaren Elva

Find Your Part

McLaren Elva - 29 - EXHAUST - 29.2 - MUFFLER AND TAIL PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11H0065CP ISOLATOR - MUFFLER MOUNTING $106.21 To Order
Photo Part No Description Price (each) Stock
14H0091CP CLAMP RING - 76MM $106.21 To Order
Photo Part No Description Price (each) Stock
26HA126SP ASSY - MUFFLER - NO VALVE Enquire To Order
14HA053RP CAST TITANIUM 80MM VALVE Enquire To Order
26HA127SP MUFFLER - NO VALVES Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
26HA123SP SIDE FINISHER - EXHAUST $662.46 To Order
Photo Part No Description Price (each) Stock
26HA122SP MIDDLE FINISHER - EXHAUST $359.79 To Order
Photo Part No Description Price (each) Stock
26HA112SP MUFFLER ISOLATOR BRKT - FRAME - LH - RR $48.83 To Order
Photo Part No Description Price (each) Stock
26HA113SP MUFFLER ISOLATOR BRKT - HANGER - RR $53.09 To Order
Photo Part No Description Price (each) Stock
16HA203CP ISOLATOR - WEGU - MUFFLER - VERTICAL $125.51 To Order
Photo Part No Description Price (each) Stock
26EA028SP ISOLATOR INSULATION BRACKET $104.92 To Order
Photo Part No Description Price (each) Stock
26HA031SP EXHAUST FINISHER - CTR Enquire To Order
Photo Part No Description Price (each) Stock
26HA090SP FINISHER BRKT - RH Enquire To Order
Photo Part No Description Price (each) Stock
26HA088SP FINISHER BRKT - FR $32.55 To Order
Photo Part No Description Price (each) Stock
26HA089SP FINISHER BRKT - LH Enquire To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RC028 WASHER - M6 FORM C Enquire To Order
Photo Part No Description Price (each) Stock
00RA577 NUT-HX-FL-M6X1-8-ZFB Enquire To Order
Photo Part No Description Price (each) Stock
00RX001 BOLT - M5X16 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA099 SCREW - M4X25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC030 Washer - M4x12x1 Enquire To Order
View All

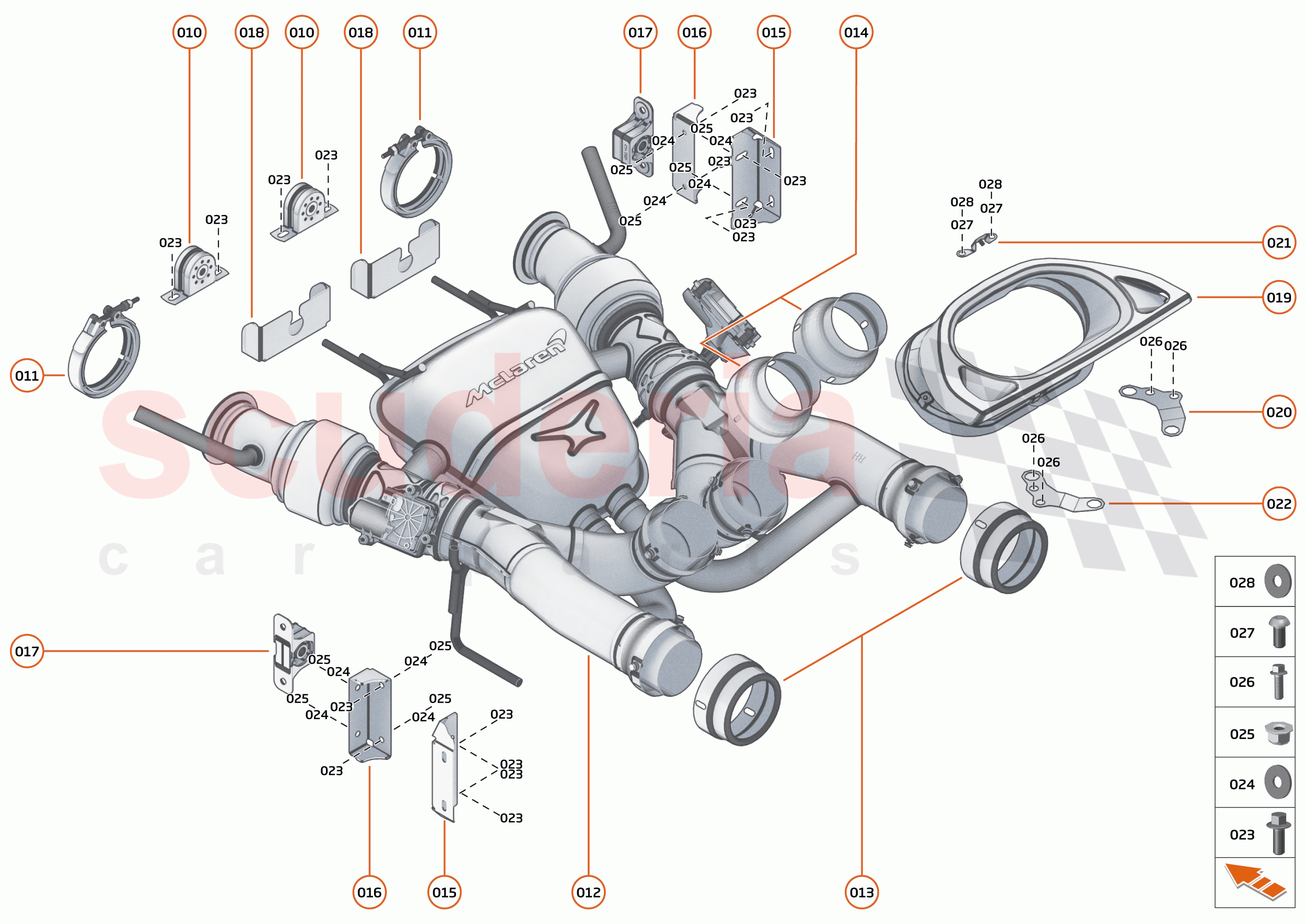

29 - EXHAUST - 29.2 - MUFFLER AND TAIL PIPES of McLaren McLaren Elva Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RA399
Screw - M4x12 		- 1 Enquire
000 26HA101SP
FINISHER SHIM 		$15.49 2
010 11H0065CP
ISOLATOR - MUFFLER MOUNTING 		$106.21 2
011 14H0091CP
CLAMP RING - 76MM 		$106.21 2
012 26HA126SP
ASSY - MUFFLER - NO VALVE 		- 1 Enquire
012 14HA053RP
CAST TITANIUM 80MM VALVE 		- 2 Enquire
012 26HA127SP
MUFFLER - NO VALVES 		- 1 Enquire
012 26HA111SP
EXHAUST MUFFLER - VLV 		- 1 Enquire
012 26HA110SP
ASSY - EXHAUST MUFFLER - VLV 		- 1 Enquire
013 26HA123SP
SIDE FINISHER - EXHAUST 		$662.46 2
014 26HA122SP
MIDDLE FINISHER - EXHAUST 		$359.79 2
015 26HA112SP
MUFFLER ISOLATOR BRKT - FRAME - LH - RR 		$48.83 2
016 26HA113SP
MUFFLER ISOLATOR BRKT - HANGER - RR 		$53.09 2
017 16HA203CP
ISOLATOR - WEGU - MUFFLER - VERTICAL 		$125.51 2
018 26EA028SP
ISOLATOR INSULATION BRACKET 		$104.92 2
019 26HA031SP
EXHAUST FINISHER - CTR 		- 1 Enquire
020 26HA090SP
FINISHER BRKT - RH 		- 1 Enquire
021 26HA088SP
FINISHER BRKT - FR 		$32.55 1
022 26HA089SP
FINISHER BRKT - LH 		- 1 Enquire
023 00RA313
SCREW - M6X16 - HEX - SILVER 		- 16 Enquire
024 00RC028
WASHER - M6 FORM C 		- 8 Enquire
025 00RA577
NUT-HX-FL-M6X1-8-ZFB 		- 8 Enquire
026 00RX001
BOLT - M5X16 - HEX 		- 4 Enquire
027 00RA099
SCREW - M4X25 - HEX 		- 2 Enquire
028 00RC030
Washer - M4x12x1 		- 2 Enquire
