McLaren Elva - 31 - COOLING SYSTEM - 31.4 - LOW TEMPERATURE CIRCUIT & PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA357 PIPE PROTECTOR Enquire To Order
Photo Part No Description Price (each) Stock
14L0068CP HOSE - LTR CIRCUIT - FEED - CENTRE $302.57 To Order
Photo Part No Description Price (each) Stock
00RB034 CLIP - 14-15MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB007 CLIP - 18-20MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB201 CLAMP - SPRING BAND - 21X12 Enquire To Order
Photo Part No Description Price (each) Stock
14L0069CP HOSE - LTR CIRCUIT - RETURN - CENTRE $302.57 To Order
Photo Part No Description Price (each) Stock
15LA038CP CLIP - CHASSIX TUNNES $75.00 To Order
Photo Part No Description Price (each) Stock
14L0151CP PIPE CLIP - 8 WAY $15.10 To Order
Photo Part No Description Price (each) Stock
14LA022CP CLIP - 4WAY - RH $8.64 To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RB191 P-CLIP - 14X15 Enquire To Order
Photo Part No Description Price (each) Stock
00RB202 CLAMP - SPRING BAND - 23X12 Enquire To Order
Photo Part No Description Price (each) Stock
15L0055CP HOSE - TUNNEL TO WCAC - LH $260.03 To Order
Photo Part No Description Price (each) Stock
00RC113 SPACER - NYLON - 6.6X17.45X1.05 Enquire To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
15L0057CP HOSE - TUNNEL TO WCAC - RH Enquire To Order
Photo Part No Description Price (each) Stock
15LA068CP PIPE CLIP-RR-LH-EXTENDED $60.00 To Order
Photo Part No Description Price (each) Stock
13L0211CP PIPE CLIP - REAR - RIGHT $45.37 To Order
Photo Part No Description Price (each) Stock
13L0224CP PIPE CLIP - 5 WAY $13.09 To Order
Photo Part No Description Price (each) Stock
14L0125CP CLIP - TUNNEL - 12 WAY $35.29 To Order
Photo Part No Description Price (each) Stock
26LA044SP HOSE-TUNNEL-TO-LTR LH $1,008.60 To Order
Photo Part No Description Price (each) Stock
26LA094SP HOSE-TUNNEL-TO-LTR RH $240.19 To Order
Photo Part No Description Price (each) Stock
00RB233 CLMP-SPRGBAND-LO PRO-25X12-STL Enquire To Order
Photo Part No Description Price (each) Stock
26LA042SP HOSE-LTR LH-TO-TUNNEL $605.16 To Order
Photo Part No Description Price (each) Stock
00RB032 CLIP - 13-14MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RG019 SWIVEL - 6.5X10.5 FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
26LA093SP HOSE-LTR RH-TO-TUNNEL $564.81 To Order
Photo Part No Description Price (each) Stock
00RX001 BOLT - M5X16 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA011 NUT-HEX HEAD-FLANGE-M6-8 Enquire To Order
Photo Part No Description Price (each) Stock
15L0059CP HOSE - WCAC TO PUMP $760.14 To Order
Photo Part No Description Price (each) Stock
00RG018 SWIVEL CLIP - 22-24MM -MALE Enquire To Order
View All

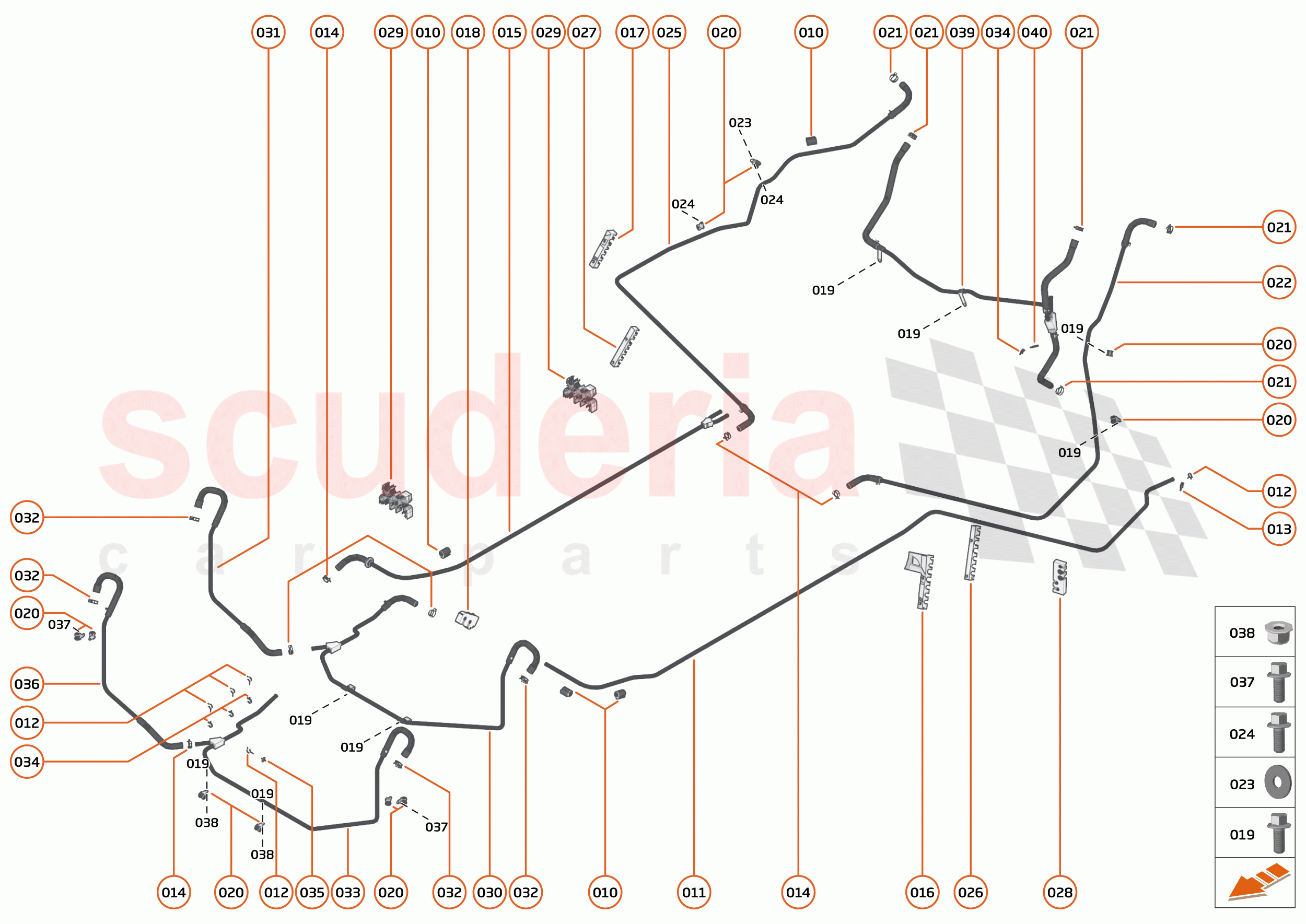

31 - COOLING SYSTEM - 31.4 - LOW TEMPERATURE CIRCUIT & PIPES of McLaren McLaren Elva Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA357
PIPE PROTECTOR 		- 4 Enquire
011 14L0068CP
HOSE - LTR CIRCUIT - FEED - CENTRE 		$302.57 1
012 00RB034
CLIP - 14-15MM - MALE 		- 5 Enquire
013 00RB007
CLIP - 18-20MM - FEMALE 		- 1 Enquire
014 00RB201
CLAMP - SPRING BAND - 21X12 		- 6 Enquire
015 14L0069CP
HOSE - LTR CIRCUIT - RETURN - CENTRE 		$302.57 1
016 15LA038CP
CLIP - CHASSIX TUNNES 		$75.00 1
017 14L0151CP
PIPE CLIP - 8 WAY 		$15.10 1
018 14LA022CP
CLIP - 4WAY - RH 		$8.64 1
019 00RA313
SCREW - M6X16 - HEX - SILVER 		- 6 Enquire
020 00RB191
P-CLIP - 14X15 		- 10 Enquire
021 00RB202
CLAMP - SPRING BAND - 23X12 		- 5 Enquire
022 15L0055CP
HOSE - TUNNEL TO WCAC - LH 		$260.03 1
023 00RC113
SPACER - NYLON - 6.6X17.45X1.05 		- 1 Enquire
024 00RA083
SCREW - M6X20 - FLANGE HEX 		- 2 Enquire
025 15L0057CP
HOSE - TUNNEL TO WCAC - RH 		- 1 Enquire
026 15LA068CP
PIPE CLIP-RR-LH-EXTENDED 		$60.00 1
027 13L0211CP
PIPE CLIP - REAR - RIGHT 		$45.37 1
028 13L0224CP
PIPE CLIP - 5 WAY 		$13.09 1
029 14L0125CP
CLIP - TUNNEL - 12 WAY 		$35.29 2
030 26LA044SP
HOSE-TUNNEL-TO-LTR LH 		$1,008.60 1
031 26LA094SP
HOSE-TUNNEL-TO-LTR RH 		$240.19 1
032 00RB233
CLMP-SPRGBAND-LO PRO-25X12-STL 		- 4 Enquire
033 26LA042SP
HOSE-LTR LH-TO-TUNNEL 		$605.16 1
034 00RB032
CLIP - 13-14MM - FEMALE 		- 4 Enquire
035 00RG019
SWIVEL - 6.5X10.5 FIRTREE BASE 		- 1 Enquire
036 26LA093SP
HOSE-LTR RH-TO-TUNNEL 		$564.81 1
037 00RX001
BOLT - M5X16 - HEX 		- 2 Enquire
038 00RA011
NUT-HEX HEAD-FLANGE-M6-8 		- 2 Enquire
039 15L0059CP
HOSE - WCAC TO PUMP 		$760.14 1
040 00RG018
SWIVEL CLIP - 22-24MM -MALE 		- 1 Enquire
