McLaren Elva - 32 - HVAC - 32.2 - HVAC FLUIDS CIRCUIT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11A4434CP CLAMP PLATE - HVAC EVAPORATOR CONNECTION $72.97 To Order
Photo Part No Description Price (each) Stock
00RA120 SCREW - M6X25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
28LA001CP PIPE - EVAPORATOR - INTERNAL HEAT EXCHANGER $92.42 To Order
Photo Part No Description Price (each) Stock
00RA367 PIPE PROTECTOR - 19MM ID Enquire To Order
Photo Part No Description Price (each) Stock
00RB007 CLIP - 18-20MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB045 CLIP - 9.5-10MM - MALE Enquire To Order
00RB008 CLIP - 18-20MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
28LA009CP INTERNAL HEAT EXCHANGER UNIT $330.80 To Order
Photo Part No Description Price (each) Stock
00RA075 NUT - M8-8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
15AB472CP HOSE - CONDENSOR LATERAL - CENTRE $96.66 To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RA366 PIPE PROTECTOR - 13MM ID Enquire To Order
Photo Part No Description Price (each) Stock
28LA007CP HOSE - CONDENSER - RECIEVER DRIER - HVAC $107.02 To Order
Photo Part No Description Price (each) Stock
28LA003CP HOSE - COMPRESSOR TO CONDENSER - R1234YF $248.09 To Order
Photo Part No Description Price (each) Stock
00RA011 NUT-HEX HEAD-FLANGE-M6-8 Enquire To Order
Photo Part No Description Price (each) Stock
14AB752CP HOSE - COMPRESSOR - REAR - R1234YF $126.47 To Order
Photo Part No Description Price (each) Stock
00RL001 CABLE TIE - FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
11A4433CP CLAMP PLATE - RECEIVER DRIER - HVAC $63.23 To Order
Photo Part No Description Price (each) Stock
00RA002 BOLT - M8X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC038 WASHER - WAVE M8 Enquire To Order
Photo Part No Description Price (each) Stock
14A1799CP HOSE - HEATER TO ENGINE - HVAC $272.43 To Order
Photo Part No Description Price (each) Stock
00RB145 CLAMP - SPRING BAND - 26/12 Enquire To Order
Photo Part No Description Price (each) Stock
00RB202 CLAMP - SPRING BAND - 23X12 Enquire To Order
Photo Part No Description Price (each) Stock
14A4228CP HOSE - HEATER TO PUMP - HVAC $291.89 To Order
Photo Part No Description Price (each) Stock
00RB191 P-CLIP - 14X15 Enquire To Order
Photo Part No Description Price (each) Stock
00RB019 CLIP - 90DEG - FEMALE - 10-12MM Enquire To Order
Photo Part No Description Price (each) Stock
00RB032 CLIP - 13-14MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
14A3034CP CLIP - HEATER PIPE $63.96 To Order
Photo Part No Description Price (each) Stock
11A6627CP SENSOR - PRESSURE - HVAC $309.35 To Order
View All

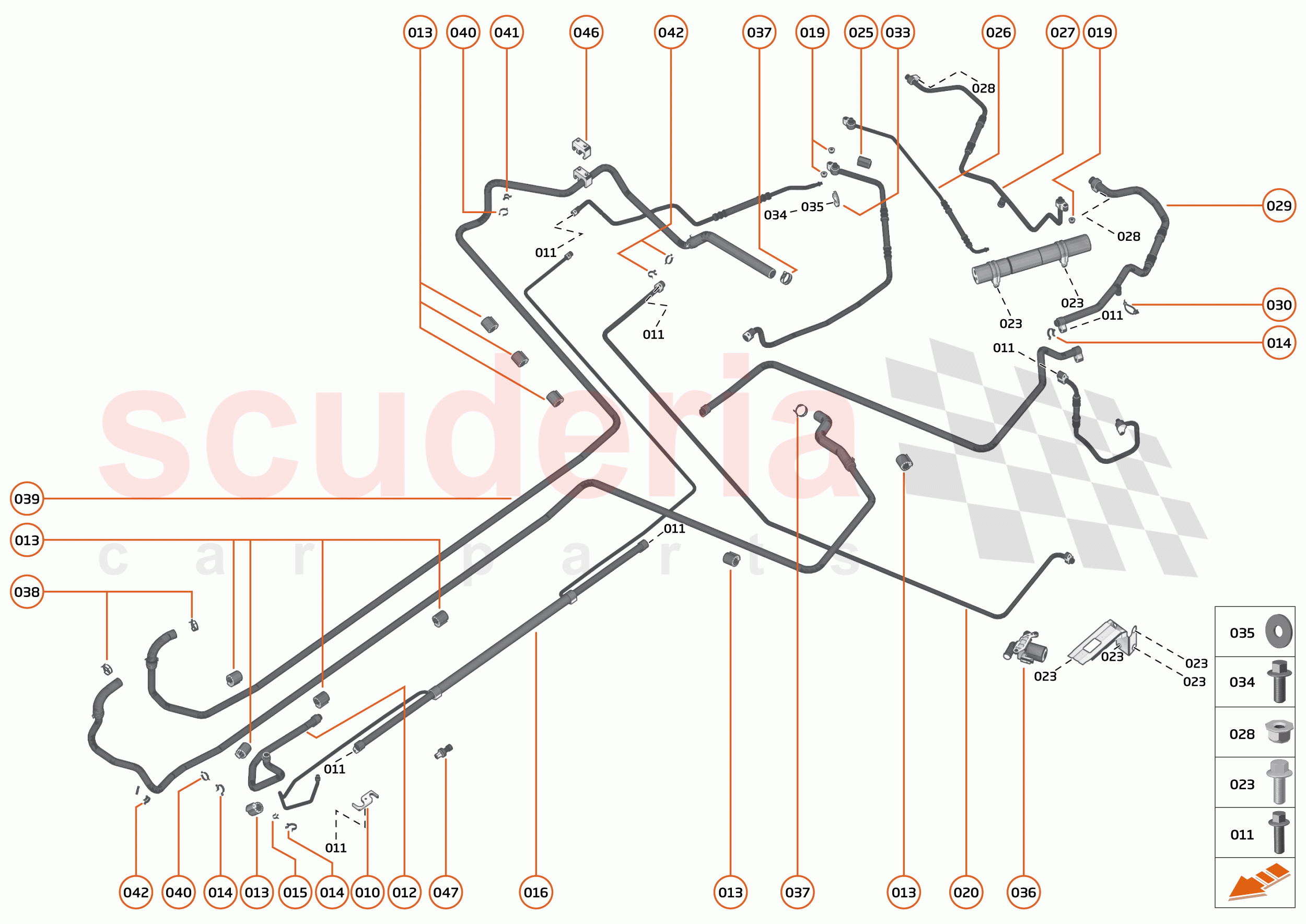

32 - HVAC - 32.2 - HVAC FLUIDS CIRCUIT of McLaren McLaren Elva Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11A4434CP
CLAMP PLATE - HVAC EVAPORATOR CONNECTION 		$72.97 1
011 00RA120
SCREW - M6X25 - HEX 		- 1 Enquire
012 28LA001CP
PIPE - EVAPORATOR - INTERNAL HEAT EXCHANGER 		$92.42 1
013 00RA367
PIPE PROTECTOR - 19MM ID 		- 5 Enquire
014 00RB007
CLIP - 18-20MM - FEMALE 		- 1 Enquire
015 00RB045
CLIP - 9.5-10MM - MALE 		- 1 Enquire
015 00RB008
CLIP - 18-20MM - MALE 		- 3 Enquire
016 28LA009CP
INTERNAL HEAT EXCHANGER UNIT 		$330.80 1
017 28LA008CP
PIPE - INTERNAL HEAT EXCHANGER - COMPRESSOR 		$136.21 1
018 28LA005CP
HOSE - CONDENSER LATERAL - LH - HVAC 		- 1 Enquire
019 00RA075
NUT - M8-8 - HEX 		- 1 Enquire
020 15AB472CP
HOSE - CONDENSOR LATERAL - CENTRE 		$96.66 1
021 28LA002CP
HOSE - RECEIVER DRIER - HVAC - REAR 		$348.01 1
022 26AA209SP
ASSY HOSE-CONDENSOR LATERAL-RH - STD 		$992.46 1
023 00RA313
SCREW - M6X16 - HEX - SILVER 		- 2 Enquire
025 00RA366
PIPE PROTECTOR - 13MM ID 		- 1 Enquire
026 28LA007CP
HOSE - CONDENSER - RECIEVER DRIER - HVAC 		$107.02 1
027 28LA003CP
HOSE - COMPRESSOR TO CONDENSER - R1234YF 		$248.09 1
028 00RA011
NUT-HEX HEAD-FLANGE-M6-8 		- 1 Enquire
029 14AB752CP
HOSE - COMPRESSOR - REAR - R1234YF 		$126.47 1
030 00RL001
CABLE TIE - FIRTREE BASE 		- 1 Enquire
031 12A2757CP
RECEIVER DRIER - HVAC 		$447.57 1
032 00RB029
P CLIP - DIA 45-M6 		- 2 Enquire
033 11A4433CP
CLAMP PLATE - RECEIVER DRIER - HVAC 		$63.23 1
034 00RA002
BOLT - M8X20 - HEX 		- 1 Enquire
035 00RC038
WASHER - WAVE M8 		- 1 Enquire
036 14A1799CP
HOSE - HEATER TO ENGINE - HVAC 		$272.43 1
037 00RB145
CLAMP - SPRING BAND - 26/12 		- 1 Enquire
038 00RB202
CLAMP - SPRING BAND - 23X12 		- 1 Enquire
039 14A4228CP
HOSE - HEATER TO PUMP - HVAC 		$291.89 1
040 00RB191
P-CLIP - 14X15 		- 2 Enquire
041 00RB019
CLIP - 90DEG - FEMALE - 10-12MM 		- 1 Enquire
042 00RB032
CLIP - 13-14MM - FEMALE 		- 1 Enquire
046 14A3034CP
CLIP - HEATER PIPE 		$63.96 1
047 11A6627CP
SENSOR - PRESSURE - HVAC 		$309.35 1
