Rear Parcel Shelf

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP

Illustration Number: 09461

Find Your Part

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP - REAR PARCEL SHELF (09461)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670170909 LUGGAGE SHELF Enquire To Order
670280475 LUGGAGE SHELF Enquire To Order
Photo Part No Description Price (each) Stock
673004758 NET KIT $72.09 To Order
Photo Part No Description Price (each) Stock
673004759 PINS KIT $35.64 To Order
Photo Part No Description Price (each) Stock
673004760 FLAP KIT $101.47 To Order
673006255 FLAP KIT $300.08 To Order
673014356 FLAP KIT $92.13 To Order
Photo Part No Description Price (each) Stock
673004761 TIE-RODS KIT $8.70 To Order
Photo Part No Description Price (each) Stock
670085511 NET Enquire To Order
Photo Part No Description Price (each) Stock
670044125 LH COVER Enquire To Order
670044124 RH COVER Enquire To Order
Photo Part No Description Price (each) Stock
670034597 LH BRACKET $19.68 To Order
670034596 RH BRACKET $19.68 To Order
Photo Part No Description Price (each) Stock
675000732 SCREW $1.99 To Order
View All

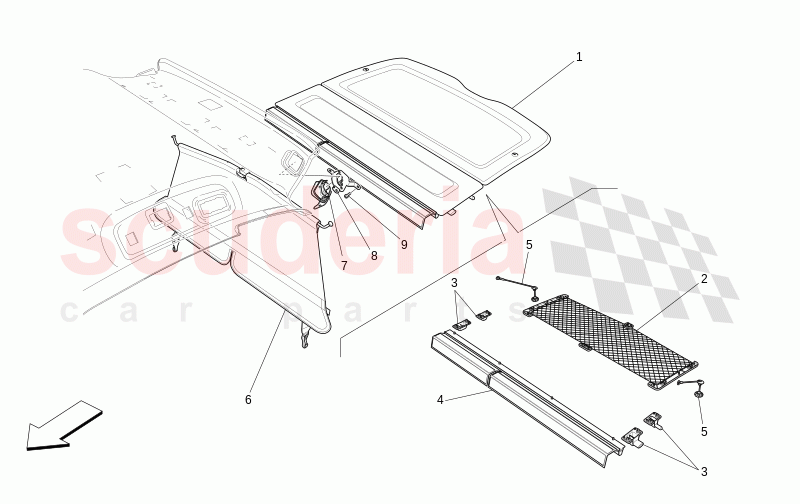

REAR PARCEL SHELF of Maserati Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670170909
LUGGAGE SHELF
Bespoke Assembly Number 6087717 - 6110974; Not available with: ZEGNA EDITION INTERIORS, ALCANTARA ROOFLINING, GTS, GT, TRIM LUXURY, TROFEO; 		- 1 Enquire
1 670280475
LUGGAGE SHELF
Bespoke Assembly Number 6110975 - 99999999; 		- 1 Enquire
2 673004758
NET KIT
Net Kit not provided as standard but can be ordered later; Bespoke Assembly Number 6043561 - 99999999; 		$72.09 1
3 673004759
PINS KIT 		$35.64 2
4 673004760
FLAP KIT
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 6106768; Not available with: ALCANTARA ROOFLINING; 		$101.47 1
4 673006255
FLAP KIT
Available with: ALCANTARA ROOFLINING ; 		$300.08 1
4 673014356
FLAP KIT
Bespoke Assembly Number 6106769 - 99999999; Not available with: ALCANTARA ROOFLINING; 		$92.13 1
5 673004761
TIE-RODS KIT 		$8.70 1
6 670085511
NET
IF THE CAR DOES NOT HAVE THE PN 670049152 (LUGGAGE CONTAINER), PLEASE ORDER THIS TOO; Available with: CARGO NET FOR REAR TRUNK ; 		- 1 Enquire
7 670044125
LH COVER 		- 1 Enquire
7 670044124
RH COVER 		- 1 Enquire
8 670034597
LH BRACKET 		$19.68 1
8 670034596
RH BRACKET 		$19.68 1
9 675000732
SCREW 		$1.99 6
