Underbody And Underfloor Guards

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP

Illustration Number: 09142

Find Your Part

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP - UNDERBODY AND UNDERFLOOR GUARDS (09142)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
675000228 SCREW $2.39 IN STOCK
Photo Part No Description Price (each) Stock
675000324 NUT $1.35 IN STOCK
Photo Part No Description Price (each) Stock
670032422 RH CENTER AERODYNAMIC UNDERFLOOR $66.18 To Order
670106731 RH CENTER AERODYNAMIC UNDERFLOOR $195.87 To Order
670106731 RH CENTER AERODYNAMIC UNDERFLOOR $195.87 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
670032423 LH CENTER AERODYNAMIC UNDERFLOOR $126.20 To Order
670106733 LH CENTER AERODYNAMIC UNDERFLOOR $195.87 To Order
670106733 LH CENTER AERODYNAMIC UNDERFLOOR $195.87 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
670034356 FRONT JACKING PAD $15.82 IN STOCK
Photo Part No Description Price (each) Stock
670034358 REAR JACKING PAD $12.64 IN STOCK
Photo Part No Description Price (each) Stock
670032424 FRONT UNDERBODY GUARD $321.95 IN STOCK
Photo Part No Description Price (each) Stock
670032420 RH FRONT UNDERBODY GUARD $38.21 To Order
Photo Part No Description Price (each) Stock
675000341 UNDERCOVER SCREW SECURING BRACKET $2.19 IN STOCK
Photo Part No Description Price (each) Stock
670032421 LH FRONT UNDERBODY GUARD $38.21 To Order
Photo Part No Description Price (each) Stock
670107814 REAR AERODYNAMIC BOTTOM ASSEMBLY $88.29 To Order
Photo Part No Description Price (each) Stock
675000020 LOWER SHIELD FASTENING CLIP $7.40 IN STOCK
Photo Part No Description Price (each) Stock
670102908 UNDER ENGINE REPAIR $111.23 To Order
Photo Part No Description Price (each) Stock
670009112 FASTENING PIN $3.85 IN STOCK
Photo Part No Description Price (each) Stock
675000442 NUT $1.51 IN STOCK
Photo Part No Description Price (each) Stock
670036972 SCREW $3.06 IN STOCK
Photo Part No Description Price (each) Stock
675000058 FASTENER BUTTON $3.00 IN STOCK
Photo Part No Description Price (each) Stock
675000342 SCREW M6 X 25 $2.71 IN STOCK
Photo Part No Description Price (each) Stock
675000323 RIVET $1.97 IN STOCK
Photo Part No Description Price (each) Stock
675000150 FASTENER BUTTON $1.04 IN STOCK
Photo Part No Description Price (each) Stock
670037056 RH STRAP $19.19 To Order
Photo Part No Description Price (each) Stock
670037057 LH STRAP $19.19 To Order
View All

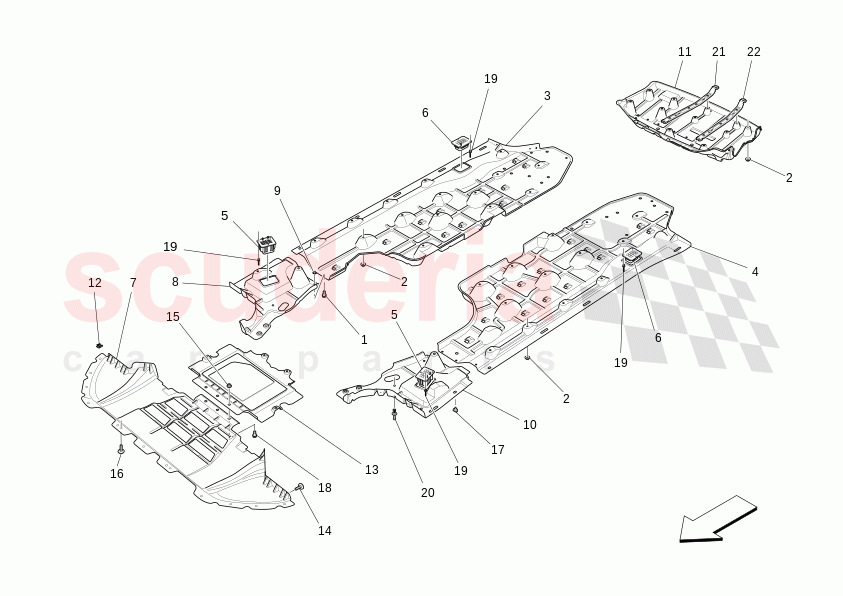

UNDERBODY AND UNDERFLOOR GUARDS of Maserati Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 675000228
SCREW
IN STOCK 		$2.39 6
2 675000324
NUT
IN STOCK 		$1.35 46
3 670032422
RH CENTER AERODYNAMIC UNDERFLOOR
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6072512 - 99999999; Available with: EU6D Final specific Korea / USA Not available with: EU6D Final, EURO 6.4, TRAILER TOW AUSTRALIAN SPECIFICATION, TRAILER TOW US SPECIFICATION, EU6C MY19 / EU6D-Temp MY20 		$66.18 1
3 670106731
RH CENTER AERODYNAMIC UNDERFLOOR
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6072512 - 99999999; Available with: EU6D Final specific Korea / USA, TRAILER TOW US SPECIFICATION Not available with: EU6D Final, EURO 6.4, TRAILER TOW AUSTRALIAN SPECIFICATION, EU6C MY19 / EU6D-Temp MY20 		$195.87 1
3 670106731
RH CENTER AERODYNAMIC UNDERFLOOR
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6072512 - 99999999; Available with: EU6D Final specific Korea / USA, TRAILER TOW GROUP ROW Not available with: EU6D Final, EURO 6.4, TRAILER TOW AUSTRALIAN SPECIFICATION, TRAILER TOW US SPECIFICATION, EU6 		$195.87 1
3 670032422
RH CENTER AERODYNAMIC UNDERFLOOR
Available with: EURO 6.4 Not available with: EU6D Final, EU6D Final specific Korea / USA, TRAILER TOW AUSTRALIAN SPECIFICATION, TRAILER TOW US SPECIFICATION, EU6C MY19 / EU6D-Temp MY20, TRAILER TOW GROUP ROW, CHINA 6B EMISSION; 		$66.18 1
3 670106731
RH CENTER AERODYNAMIC UNDERFLOOR
Available with: EURO 6.4, TRAILER TOW GROUP ROW Not available with: EU6D Final, EU6D Final specific Korea / USA, TRAILER TOW AUSTRALIAN SPECIFICATION, TRAILER TOW US SPECIFICATION, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION; 		$195.87 1
4 670032423
LH CENTER AERODYNAMIC UNDERFLOOR
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6072512 - 99999999; Available with: EU6D Final specific Korea / USA Not available with: EU6D Final, EURO 6.4, TRAILER TOW AUSTRALIAN SPECIFICATION, TRAILER TOW US SPECIFICATION, EU6C MY19 / EU6D-Temp MY20 		$126.20 1
4 670106733
LH CENTER AERODYNAMIC UNDERFLOOR
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6072512 - 99999999; Available with: EU6D Final specific Korea / USA, TRAILER TOW US SPECIFICATION Not available with: EU6D Final, EURO 6.4, TRAILER TOW AUSTRALIAN SPECIFICATION, EU6C MY19 / EU6D-Temp MY20 		$195.87 1
4 670106733
LH CENTER AERODYNAMIC UNDERFLOOR
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6072512 - 99999999; Available with: EU6D Final specific Korea / USA, TRAILER TOW GROUP ROW Not available with: EU6D Final, EURO 6.4, TRAILER TOW AUSTRALIAN SPECIFICATION, TRAILER TOW US SPECIFICATION, EU6 		$195.87 1
4 670032423
LH CENTER AERODYNAMIC UNDERFLOOR
Available with: EURO 6.4 Not available with: EU6D Final, EU6D Final specific Korea / USA, TRAILER TOW AUSTRALIAN SPECIFICATION, TRAILER TOW US SPECIFICATION, EU6C MY19 / EU6D-Temp MY20, TRAILER TOW GROUP ROW, CHINA 6B EMISSION; 		$126.20 1
4 670106733
LH CENTER AERODYNAMIC UNDERFLOOR
Available with: EURO 6.4, TRAILER TOW GROUP ROW Not available with: EU6D Final, EU6D Final specific Korea / USA, TRAILER TOW AUSTRALIAN SPECIFICATION, TRAILER TOW US SPECIFICATION, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION; 		$195.87 1
5 670034356
FRONT JACKING PAD
IN STOCK 		$15.82 2
6 670034358
REAR JACKING PAD
IN STOCK 		$12.64 2
7 670032424
FRONT UNDERBODY GUARD
IN STOCK 		$321.95 1
8 670032420
RH FRONT UNDERBODY GUARD 		$38.21 1
9 675000341
UNDERCOVER SCREW SECURING BRACKET
IN STOCK 		$2.19 6
10 670032421
LH FRONT UNDERBODY GUARD 		$38.21 1
11 670107814
REAR AERODYNAMIC BOTTOM ASSEMBLY 		$88.29 1
12 675000020
LOWER SHIELD FASTENING CLIP
IN STOCK 		$7.40 8
13 670102908
UNDER ENGINE REPAIR
Bespoke Assembly Number 6035538 - 99999999; 		$111.23 1
14 670009112
FASTENING PIN
IN STOCK 		$3.85 6
15 675000442
NUT
IN STOCK 		$1.51 3
16 670036972
SCREW
IN STOCK 		$3.06 11
17 675000058
FASTENER BUTTON
IN STOCK 		$3.00 4
18 675000342
SCREW M6 X 25
IN STOCK 		$2.71 3
19 675000323
RIVET
IN STOCK 		$1.97 12
20 675000150
FASTENER BUTTON
IN STOCK 		$1.04 2
21 670037056
RH STRAP 		$19.19 1
22 670037057
LH STRAP 		$19.19 1
