Bodywork And Central Outer Trim Panels

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP

Illustration Number: 09011

Find Your Part

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP - BODYWORK AND CENTRAL OUTER TRIM PANELS (09011)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
673006973 LH FRONT PILLAR MEMBER REINFORCEMENT $235.05 To Order
673006978 RH FRONT PILLAR MEMBER REINFORCEMENT $268.65 To Order
Photo Part No Description Price (each) Stock
673008250 LH EXTERNAL BODY SIDE ASSEMBLY $2,911.61 To Order
673008249 RH EXTERNAL BODY SIDE ASSEMBLY $2,404.28 To Order
Photo Part No Description Price (each) Stock
673006977 LH FRONT PILLAR SIDE RAIL ASSEMBLY $151.11 To Order
673006976 RH FRONT PILLAR SIDE RAIL ASSEMBLY $151.11 IN STOCK
Photo Part No Description Price (each) Stock
673006981 LH CENTRAL PILLAR REINFORCEMENT ASS. $481.00 To Order
673006979 RH CENTRAL PILLAR REINFORCEMENT ASS. $453.33 To Order
Photo Part No Description Price (each) Stock
673006975 LH REAR UPPER SIDE RAIL ASSEMBLY $153.07 To Order
673006974 RH REAR UPPER SIDE RAIL ASSEMBLY $153.07 To Order
Photo Part No Description Price (each) Stock
670170655 LH GUIDE Enquire To Order
670170654 RH GUIDE Enquire To Order
Photo Part No Description Price (each) Stock
673005638 LH REAR DOOR STRIKER PLATE CONNECTION REINFORCEMENT $22.67 To Order
673005637 RH REAR DOOR STRIKER PLATE CONNECTION REINFORCEMENT $22.67 To Order
Photo Part No Description Price (each) Stock
673005640 LH FRONT PILLARE REINFORCEMENT $342.73 To Order
673005639 RH FRONT PILLAR REINFORCEMENT $342.73 To Order
Photo Part No Description Price (each) Stock
673010878 LH INTERNAL BODY SIDE FRAME ASSEMBLY $289.39 To Order
673011061 RH INTERNAL BODY SIDE FRAME ASSEMBLY $103.70 To Order
Photo Part No Description Price (each) Stock
673006983 LH CENTRAL PILLAR FRAME $222.23 To Order
673006982 RH CENTRAL PILLAR FRAME $149.76 IN STOCK
Photo Part No Description Price (each) Stock
673005644 LH B-PILLAR LOWER FRAMEWORK CONNECTION $97.52 To Order
673005643 RH B-PILLAR LOWER FRAMEWORK CONNECTION $97.52 To Order
Photo Part No Description Price (each) Stock
673005645 ROOF EXTERNAL TRIM $459.47 To Order
Photo Part No Description Price (each) Stock
673005646 INTERMEDIATE CROSS MEMBER $50.46 To Order
Photo Part No Description Price (each) Stock
670105701 RIVET $2.40 To Order
Photo Part No Description Price (each) Stock
673005647 CENTRAL CROSS MEMBER $66.63 To Order
Photo Part No Description Price (each) Stock
673005648 WINDSCREEN UPPER CROSS MEMBER ASSEMBLY $96.35 To Order
Photo Part No Description Price (each) Stock
673005649 ROOF EXTERNAL TRIM $579.72 To Order
Photo Part No Description Price (each) Stock
673010877 LH SIDE BODY PANEL FRAMEWORK WITH WHEELHOUSE $2,096.80 To Order
673010875 RH SIDE BODY PANEL FRAMEWORK WITH WHEELHOUSE $2,096.80 To Order
Photo Part No Description Price (each) Stock
673005653 LH SIDE MEMBER ASSEMBLY $310.13 To Order
673011062 RH SIDE MEMBER ASSEMBLY $310.13 To Order
Photo Part No Description Price (each) Stock
670034918 LH DIAPHRAGM $14.39 To Order
670034917 RH DIAPHRAGM $14.39 To Order
Photo Part No Description Price (each) Stock
670031350 PLUG $5.33 To Order
Photo Part No Description Price (each) Stock
673005654 REAR CROSS MEMBER $82.82 To Order
Photo Part No Description Price (each) Stock
673006848 LH REINFORCEMENT $273.58 To Order
673006847 RH REINFORCEMENT $313.09 To Order
View All

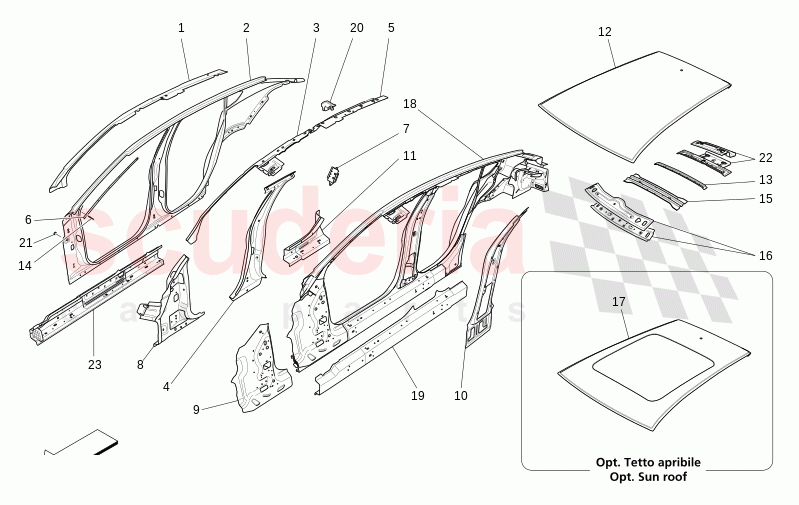

BODYWORK AND CENTRAL OUTER TRIM PANELS of Maserati Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 673006973
LH FRONT PILLAR MEMBER REINFORCEMENT 		$235.05 1
1 673006978
RH FRONT PILLAR MEMBER REINFORCEMENT 		$268.65 1
2 673008250
LH EXTERNAL BODY SIDE ASSEMBLY 		$2,911.61 1
2 673008249
RH EXTERNAL BODY SIDE ASSEMBLY 		$2,404.28 1
3 673006977
LH FRONT PILLAR SIDE RAIL ASSEMBLY 		$151.11 1
3 673006976
RH FRONT PILLAR SIDE RAIL ASSEMBLY
IN STOCK 		$151.11 1
4 673006981
LH CENTRAL PILLAR REINFORCEMENT ASS. 		$481.00 1
4 673006979
RH CENTRAL PILLAR REINFORCEMENT ASS. 		$453.33 1
5 673006975
LH REAR UPPER SIDE RAIL ASSEMBLY 		$153.07 1
5 673006974
RH REAR UPPER SIDE RAIL ASSEMBLY 		$153.07 1
6 670170655
LH GUIDE
FOR ASSEMBLY < 6067809, FOR THE FIRST REPLACE, PLEASE ORDER ALSO PN 670142160.; 		- 1 Enquire
6 670170654
RH GUIDE
FOR ASSEMBLY < 6067809, FOR THE FIRST REPLACE, PLEASE ORDER ALSO PN 670142159.; 		- 1 Enquire
7 673005638
LH REAR DOOR STRIKER PLATE CONNECTION REINFORCEMENT 		$22.67 1
7 673005637
RH REAR DOOR STRIKER PLATE CONNECTION REINFORCEMENT 		$22.67 1
8 673005640
LH FRONT PILLARE REINFORCEMENT 		$342.73 1
8 673005639
RH FRONT PILLAR REINFORCEMENT 		$342.73 1
9 673010878
LH INTERNAL BODY SIDE FRAME ASSEMBLY
Bespoke Assembly Number 6074124 - 99999999; 		$289.39 1
9 673011061
RH INTERNAL BODY SIDE FRAME ASSEMBLY
Bespoke Assembly Number 6080686 - 99999999; 		$103.70 1
10 673006983
LH CENTRAL PILLAR FRAME 		$222.23 1
10 673006982
RH CENTRAL PILLAR FRAME
IN STOCK 		$149.76 1
11 673005644
LH B-PILLAR LOWER FRAMEWORK CONNECTION 		$97.52 1
11 673005643
RH B-PILLAR LOWER FRAMEWORK CONNECTION 		$97.52 1
12 673005645
ROOF EXTERNAL TRIM
Not available with: LARGE SUNROOF WITH ELECTRICAL DRIVE; 		$459.47 1
13 673005646
INTERMEDIATE CROSS MEMBER
Not available with: LARGE SUNROOF WITH ELECTRICAL DRIVE; 		$50.46 1
14 670105701
RIVET 		$2.40 12
15 673005647
CENTRAL CROSS MEMBER
Not available with: LARGE SUNROOF WITH ELECTRICAL DRIVE; 		$66.63 1
16 673005648
WINDSCREEN UPPER CROSS MEMBER ASSEMBLY 		$96.35 1
17 673005649
ROOF EXTERNAL TRIM
Available with: LARGE SUNROOF WITH ELECTRICAL DRIVE ; 		$579.72 1
18 673010877
LH SIDE BODY PANEL FRAMEWORK WITH WHEELHOUSE
FOR VEHICLES WITH ASSEMBLY < 6074124, ONLY FOR THE FIRST REPLACE PLEASE ORDER ALSO P/N 673010874; Bespoke Assembly Number 6053787 - 99999999; 		$2,096.80 1
18 673010875
RH SIDE BODY PANEL FRAMEWORK WITH WHEELHOUSE
FOR VEHICLES WITH ASSEMBLY < 6074124, ONLY FOR THE FIRST REPLACE PLEASE ORDER ALSO P/Nย  673010873; Bespoke Assembly Number 6074124 - 99999999; 		$2,096.80 1
19 673005653
LH SIDE MEMBER ASSEMBLY 		$310.13 1
19 673011062
RH SIDE MEMBER ASSEMBLY
Bespoke Assembly Number 6080686 - 99999999; 		$310.13 1
20 670034918
LH DIAPHRAGM 		$14.39 1
20 670034917
RH DIAPHRAGM 		$14.39 1
21 670031350
PLUG
Bespoke Assembly Number 0 - 6112506; 		$5.33 2
22 673005654
REAR CROSS MEMBER 		$82.82 1
23 673006848
LH REINFORCEMENT 		$273.58 1
23 673006847
RH REINFORCEMENT 		$313.09 1
