Rear Structural Frames And Sheet Panels

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP

Illustration Number: 09051

Find Your Part

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP - REAR STRUCTURAL FRAMES AND SHEET PANELS (09051)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
673015404 RH REAR WHEELHOUSE $657.80 To Order
673015404 RH REAR WHEELHOUSE $657.80 To Order
Photo Part No Description Price (each) Stock
673007933 RH OUTER REAR SIDE MEMBER $478.95 To Order
673013306 RH OUTER REAR SIDE MEMBER $478.95 To Order
673016824 RH OUTER REAR SIDE MEMBER $478.95 To Order
Photo Part No Description Price (each) Stock
673015405 LH REAR WHEELHOUSE $677.44 To Order
673015405 LH REAR WHEELHOUSE $677.44 To Order
Photo Part No Description Price (each) Stock
673007934 LH OUTER REAR SIDE MEMBER $478.95 To Order
673013307 LH OUTER REAR SIDE MEMBER $478.95 To Order
673016825 LH OUTER REAR SIDE MEMBER $478.95 To Order
Photo Part No Description Price (each) Stock
673009139 LONGITUDINAL MEMBER CONNECTING CROSS MEMBER $195.53 To Order
Photo Part No Description Price (each) Stock
673013891 SPARE WHEEL COMPARTMENT $705.21 To Order
673013891 SPARE WHEEL COMPARTMENT $705.21 To Order
673013891 SPARE WHEEL COMPARTMENT $705.21 To Order
Photo Part No Description Price (each) Stock
673012332 FRONT SIDE OF REAR FLOOR ASSEMBLY $667.65 To Order
Photo Part No Description Price (each) Stock
673009452 RH INTERNAL REAR SIDE MEMBER $363.42 To Order
Photo Part No Description Price (each) Stock
673007206 LH REAR PILLAR REINFORCEMENT $138.25 To Order
Photo Part No Description Price (each) Stock
673007205 RH REAR PILLAR REINFORCEMENT $138.25 To Order
Photo Part No Description Price (each) Stock
673007931 LH INTERNAL REAR SIDE MEMBER $356.49 To Order
Photo Part No Description Price (each) Stock
673009453 RH GEARBOX SUPPORT SIDE RAIL $80.69 To Order
Photo Part No Description Price (each) Stock
673009048 LH GEARBOX SUPPORT SIDE RAIL $75.04 To Order
673013836 LH GEARBOX SUPPORT SIDE RAIL $87.99 To Order
Photo Part No Description Price (each) Stock
673005697 REAR CROSS MEMBER $192.57 To Order
Photo Part No Description Price (each) Stock
670033444 LH BRACKET $9.56 To Order
670033442 RH BRACKET $9.56 To Order
Photo Part No Description Price (each) Stock
670107339 REAR CRASH - BOX CROSS MEMBER $383.36 IN STOCK
Photo Part No Description Price (each) Stock
675000443 NUT $0.92 To Order
Photo Part No Description Price (each) Stock
673009200 LH REAR SEAT BELT FAST. LATCH REINFORCEMENT ASS $18.51 To Order
673009199 RH REAR SEAT BELT FAST. LATCH REINFORCEMENT ASS $18.51 To Order
Photo Part No Description Price (each) Stock
675000624 WELDED STUD $1.76 To Order
Photo Part No Description Price (each) Stock
675000698 RIVET $2.51 To Order
Photo Part No Description Price (each) Stock
670030797 PLUG $10.51 To Order
Photo Part No Description Price (each) Stock
670222542 RH BRACKET $38.29 To Order
670222542 RH BRACKET $38.29 To Order
Photo Part No Description Price (each) Stock
670175520 LH BRACKET $38.29 To Order
670222543 LH BRACKET $38.29 To Order
Photo Part No Description Price (each) Stock
670032545 BRACKET $33.20 To Order
View All

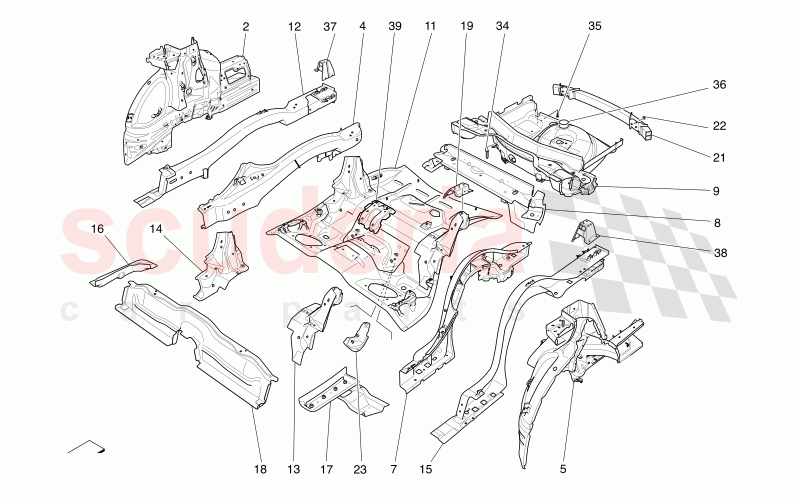

REAR STRUCTURAL FRAMES AND SHEET PANELS of Maserati Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
2 673015404
RH REAR WHEELHOUSE
Bespoke Assembly Number 6087717 - 6110699; 		$657.80 1
2 673015404
RH REAR WHEELHOUSE
Bespoke Assembly Number 6087717 - 99999999; 		$657.80 1
4 673007933
RH OUTER REAR SIDE MEMBER
Bespoke Assembly Number 6013282 - 6092262; 		$478.95 1
4 673013306
RH OUTER REAR SIDE MEMBER
Bespoke Assembly Number 6092263 - 6101239; 		$478.95 1
4 673016824
RH OUTER REAR SIDE MEMBER
Bespoke Assembly Number 6101240 - 99999999; 		$478.95 1
5 673015405
LH REAR WHEELHOUSE
Bespoke Assembly Number 6087717 - 6110699; 		$677.44 1
5 673015405
LH REAR WHEELHOUSE
Bespoke Assembly Number 6087717 - 99999999; 		$677.44 1
7 673007934
LH OUTER REAR SIDE MEMBER
Bespoke Assembly Number 0 - 6092262; 		$478.95 1
7 673013307
LH OUTER REAR SIDE MEMBER
Bespoke Assembly Number 6092263 - 6101239; 		$478.95 1
7 673016825
LH OUTER REAR SIDE MEMBER
Bespoke Assembly Number 6101240 - 99999999; 		$478.95 1
8 673009139
LONGITUDINAL MEMBER CONNECTING CROSS MEMBER
Bespoke Assembly Number 6030058 - 99999999; 		$195.53 1
9 673013891
SPARE WHEEL COMPARTMENT
Bespoke Assembly Number 6072727 - 6092262; 		$705.21 1
9 673013891
SPARE WHEEL COMPARTMENT
Bespoke Assembly Number 6092263 - 6098863; 		$705.21 1
9 673013891
SPARE WHEEL COMPARTMENT
Bespoke Assembly Number 6072727 - 99999999; 		$705.21 1
11 673012332
FRONT SIDE OF REAR FLOOR ASSEMBLY 		$667.65 1
12 673009452
RH INTERNAL REAR SIDE MEMBER
Bespoke Assembly Number 6053787 - 99999999; 		$363.42 1
13 673007206
LH REAR PILLAR REINFORCEMENT
FOR ASSEMBLY < 6001357 ORDER ALSO PN 673007204; 		$138.25 1
14 673007205
RH REAR PILLAR REINFORCEMENT
FOR ASSEMBLY < 6001357 ORDER ALSO PN 673007203; 		$138.25 1
15 673007931
LH INTERNAL REAR SIDE MEMBER 		$356.49 1
16 673009453
RH GEARBOX SUPPORT SIDE RAIL
Bespoke Assembly Number 6053787 - 99999999; 		$80.69 1
17 673009048
LH GEARBOX SUPPORT SIDE RAIL
Bespoke Assembly Number 6049626 - 6094811; 		$75.04 1
17 673013836
LH GEARBOX SUPPORT SIDE RAIL
Bespoke Assembly Number 6094812 - 99999999; 		$87.99 1
18 673005697
REAR CROSS MEMBER 		$192.57 1
19 670033444
LH BRACKET 		$9.56 1
19 670033442
RH BRACKET 		$9.56 1
21 670107339
REAR CRASH - BOX CROSS MEMBER
Not available with: TRAILER TOW AUSTRALIAN SPECIFICATION, TRAILER TOW US SPECIFICATION, TRAILER TOW GROUP ROW;
IN STOCK 		$383.36 1
22 675000443
NUT
Not available with: TRAILER TOW GROUP ROW; 		$0.92 6
23 673009200
LH REAR SEAT BELT FAST. LATCH REINFORCEMENT ASS 		$18.51 1
23 673009199
RH REAR SEAT BELT FAST. LATCH REINFORCEMENT ASS 		$18.51 1
34 675000624
WELDED STUD 		$1.76 4
35 675000698
RIVET 		$2.51 4
36 670030797
PLUG 		$10.51 1
37 670222542
RH BRACKET
Bespoke Assembly Number 0 - 6100622; 		$38.29 1
37 670222542
RH BRACKET 		$38.29 1
38 670175520
LH BRACKET
Bespoke Assembly Number 6087717 - 6100622; 		$38.29 1
38 670222543
LH BRACKET
Bespoke Assembly Number 6100623 - 99999999; 		$38.29 1
39 670032545
BRACKET 		$33.20 1
