Gearbox Oil Pump of Lamborghini Lamborghini Murcielago LP670

View All

Lamborghini Murcielago LP670 - Gearbox Oil Pump

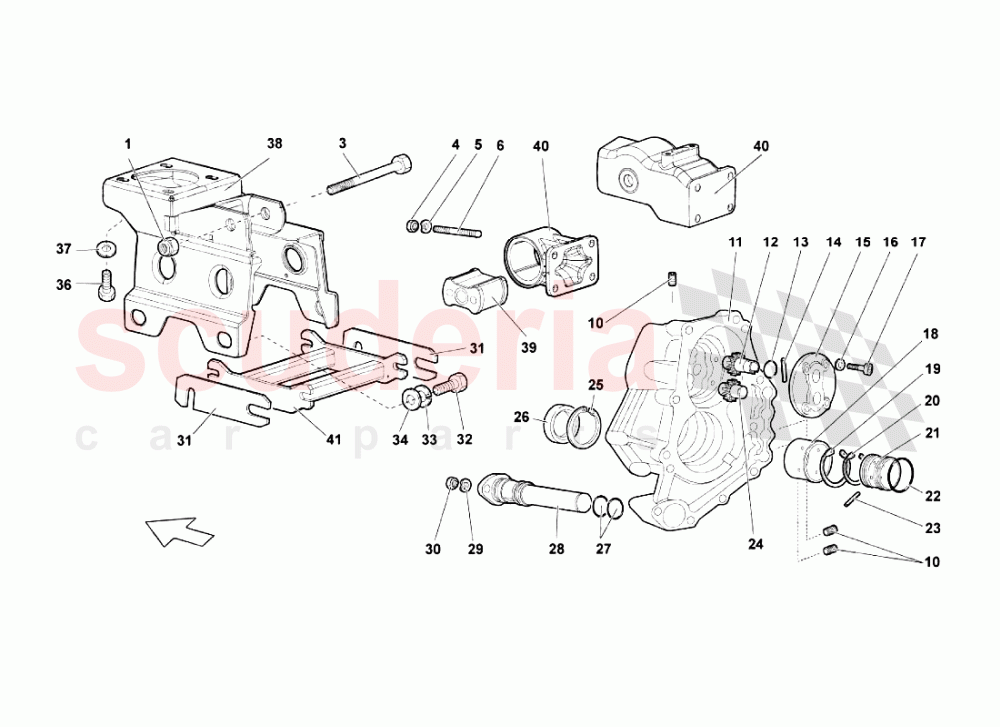

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N10268603	NUT M14X1,5	N10268603 NUT M14X1,5	$6.37	1
003	N10306403	SCREW M14X1,5X85	N10306403 SCREW M14X1,5X85	$11.17	1
004	N1100845	NUT M8X1,25X6,5	N1100845 NUT M8X1,25X6,5	-	4	Enquire
005	410422395	WASHER	410422395 WASHER	$10.03	4
006	WHT002945	STUD BOLT M8X18	WHT002945 STUD BOLT M8X18	$92.21	4
010	86301729	PLUG	86301729 PLUG	$24.39	3
011	86301271	FRONT GEARBOX BODY	86301271 FRONT GEARBOX BODY	$1,821.73	1
012	86315021	GEAR	86315021 GEAR	$509.08	1
013	WHT003523	SEAL RING	WHT003523 SEAL RING	$1.68 MSRP: ~~7.10~~ (76.3% off)	1
014	WHT003690	PIN	WHT003690 PIN	$0.44 MSRP: ~~7.32~~ (94% off)	1
015	86315141	COVER	86315141 COVER	$280.13	1
016	WHT001197A	WASHER IN STOCK	WHT001197A WASHER IN STOCK	$0.28	4
017	N10546402	HEXAGON SOCKET HEAD BOLT	N10546402 HEXAGON SOCKET HEAD BOLT	$1.32 MSRP: ~~7.30~~ (81.9% off)	4
018	86301155	BUSHING	86301155 BUSHING	$405.53	1
019	WHT003581	SEAL RING	WHT003581 SEAL RING	$1.61 MSRP: ~~7.11~~ (77.4% off)	1
020	N122902	RETAINING RING	N122902 RETAINING RING	-	1	Enquire
021	86315167	BUSHING	86315167 BUSHING	$434.21	1
022	86323135	PISTON RING	86323135 PISTON RING	$40.75	4
023	WHT003583	JOURNAL	WHT003583 JOURNAL	$1.88 MSRP: ~~7.06~~ (73.4% off)	1
024	86315127	GEAR	86315127 GEAR	$417.99	1
025	N122902	RETAINING RING	N122902 RETAINING RING	-	1	Enquire
026	86311321	SEAL RING	86311321 SEAL RING	$57.32	1
027	WHT003524	SEAL RING	WHT003524 SEAL RING	$2.25	2
028	86301516A	OIL FILTER	86301516A OIL FILTER	$551.82	1
029	WHT000771	WASHER IN STOCK	WHT000771 WASHER IN STOCK	$1.10	2
030	N90226404	HEXAGON COLLAR NUT SELF-LOCKING	N90226404 HEXAGON COLLAR NUT SELF-LOCKING	$2.25 MSRP: ~~7.22~~ (68.8% off)	2
031	410711288A	ADJUSTMENT SHIM	410711288A ADJUSTMENT SHIM	$53.47	6
032	N10518402	SCREW M8X30	N10518402 SCREW M8X30	$5.75	4
033	N152785	WASHER 8.4	N152785 WASHER 8.4	-	4	Enquire
034	N90179103	WASHER 18X8,4X2,5 IN STOCK	N90179103 WASHER 18X8,4X2,5 IN STOCK	$1.43	4
036	WHT002951	Hexagon Head Bolt M8x1.25x23 IN STOCK	WHT002951 Hexagon Head Bolt M8x1.25x23 IN STOCK	$18.24	4
037	N90840802	WASHER IN STOCK	N90840802 WASHER IN STOCK	$0.44 MSRP: ~~7.33~~ (94% off)	4
038	410713292A	SUPPORT (MANUAL GEARBOX)	410713292A SUPPORT (MANUAL GEARBOX)	$2,227.24	1
039	410399663B	SILENTBLOC	410399663B SILENTBLOC	$344.38	1
040	86399213	SUPPORT (WITH 0024013586 - MANUAL GEARBOX)	86399213 SUPPORT (WITH 0024013586 - MANUAL GEARBOX)	$646.35	1
040	86399213B	SUPPORT (E-GEAR)	86399213B SUPPORT (E-GEAR)	$575.22	1
041	410399115A	GEARBOX BRACKET	410399115A GEARBOX BRACKET	$123.03	1
