Find Your Part

Clutch (e-gear) of Lamborghini Lamborghini Murcielago LP670

View All

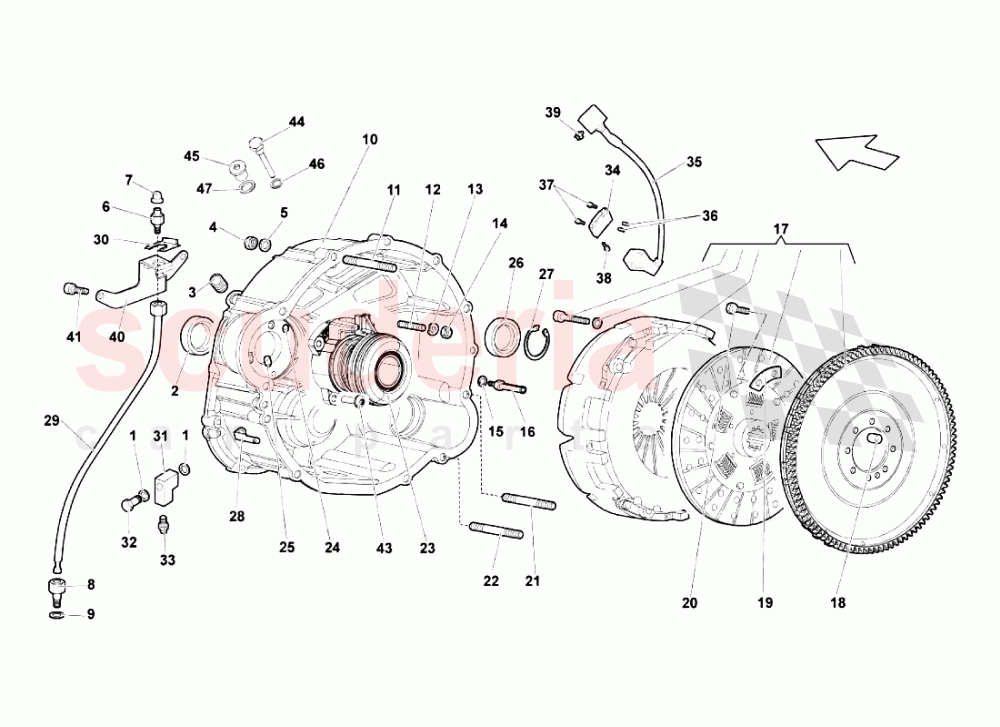

Lamborghini Murcielago LP670 - Clutch (e-gear)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
004	N1100845	NUT M8X1,25X6,5	N1100845 NUT M8X1,25X6,5	-	10	Enquire
005	WHT000771	WASHER IN STOCK	WHT000771 WASHER IN STOCK	$1.11	16
006	1J0615273	BREATHER VALVE	1J0615273 BREATHER VALVE	$21.95	1
007	86301147	DUST CAP IN STOCK	86301147 DUST CAP IN STOCK	$0.86 MSRP: ~~7.25~~ (88.1% off)	1
008	86323173C	CONNECTION PIECE	86323173C CONNECTION PIECE	$123.22	1
009	WHT002219	O-RING IN STOCK	WHT002219 O-RING IN STOCK	$4.63	1
010	86323209K	CLUTCH HOUSING	86323209K CLUTCH HOUSING	$3,036.66	1
011	WHT003027	STUD BOLT M8X35	WHT003027 STUD BOLT M8X35	$8.62	11
012	WHT002942	STUD BOLT	WHT002942 STUD BOLT	$10.27	3
013	WHT003213	WASHER	WHT003213 WASHER	$1.24 MSRP: ~~7.15~~ (82.7% off)	3
014	N1100637	NUT M6	N1100637 NUT M6	-	2	Enquire

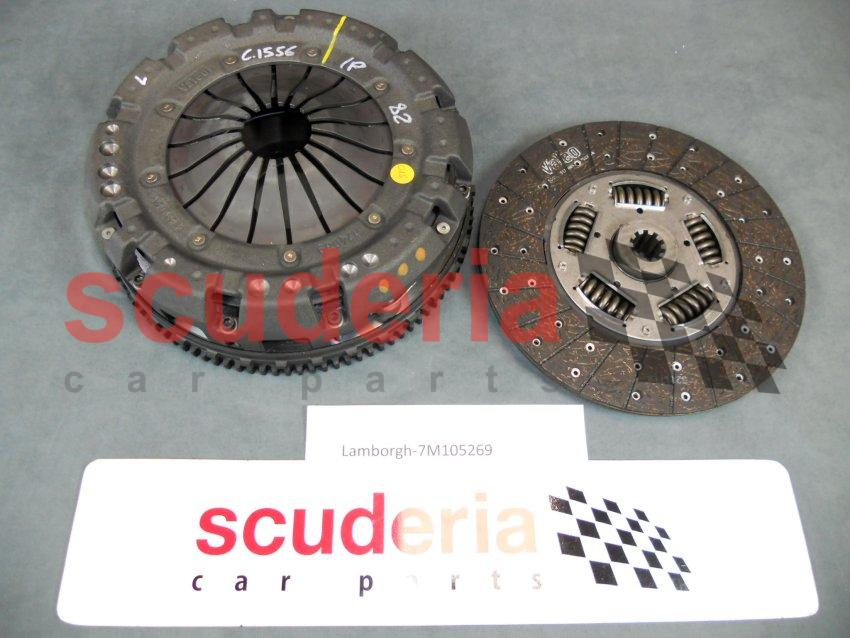

017	7M105269	Balanced Mechanism Clutch	7M105269 Balanced Mechanism Clutch	$8,152.89	1
018	WHT003078	DOWEL	WHT003078 DOWEL	$41.06	1

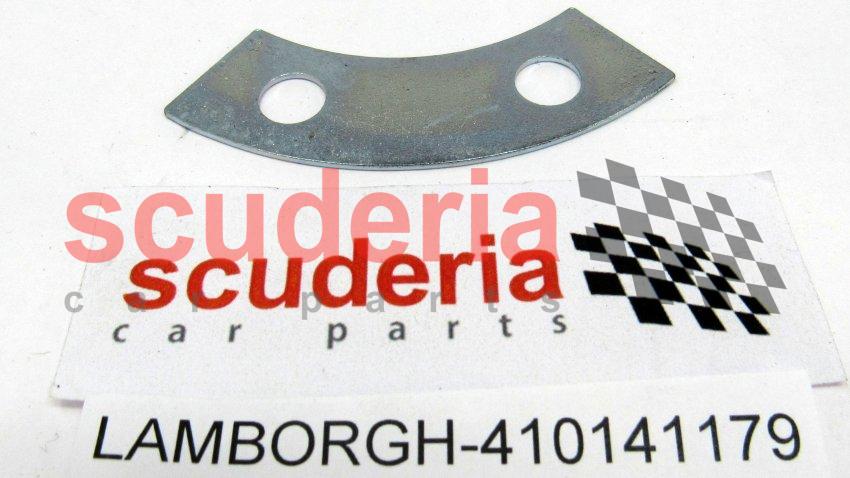

019	410141179	Retaining Plate	410141179 Retaining Plate	$59.49	4

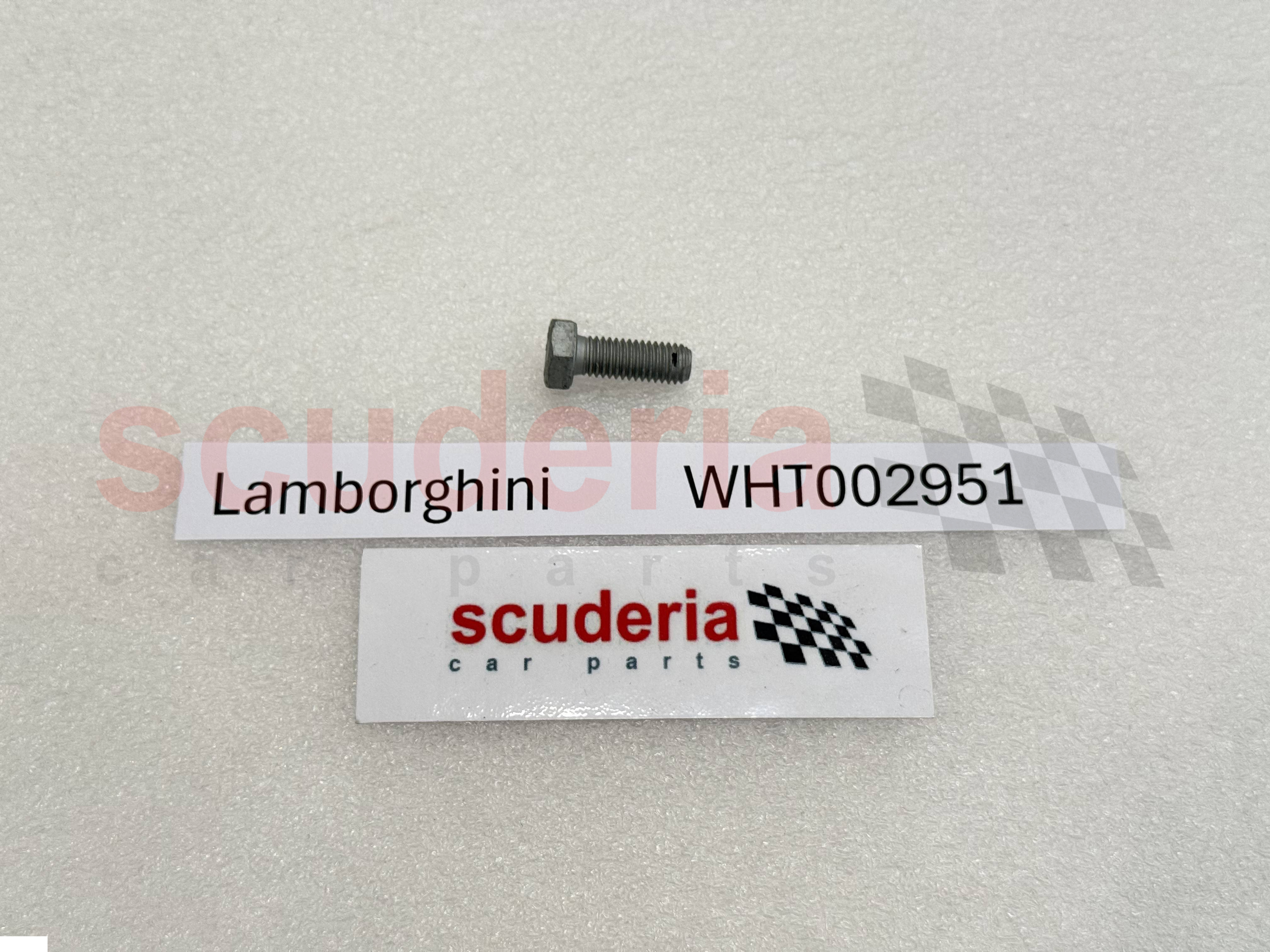

020	WHT002951	Hexagon Head Bolt M8x1.25x23 IN STOCK	WHT002951 Hexagon Head Bolt M8x1.25x23 IN STOCK	$18.27	8
021	WHT002944	STUD BOLT M8X50	WHT002944 STUD BOLT M8X50	$15.63	2
022	WHT003166	STUD BOLT M8X40	WHT003166 STUD BOLT M8X40	$47.17	1
023	86141671L	Thrust Bearing IN STOCK	86141671L Thrust Bearing Valid for E-Gear IN STOCK	$1,833.27	1
024	WHT002218	O-RING IN STOCK	WHT002218 O-RING IN STOCK	$3.90 MSRP: ~~7.30~~ (46.6% off)	1
025	86141131	O-RING	86141131 O-RING	$21.43	1
026	86311819	SEAL RING	86311819 SEAL RING	$51.30	1
027	WHT003580	SEAL RING IN STOCK	WHT003580 SEAL RING IN STOCK	$14.19	1
028	410911085A	BRACKET	410911085A BRACKET	$25.26	1
029	86323179A	HYDRAULIC CLUTCH PIPE	86323179A HYDRAULIC CLUTCH PIPE	$213.08	1
030	191611715	HOSE BRACKET	191611715 HOSE BRACKET	$1.93 MSRP: ~~7.14~~ (73% off)	1
033	86325274A	CONNECTOR	86325274A CONNECTOR	$1,712.02	1
034	86141305	SUPPORT IN STOCK	86141305 SUPPORT IN STOCK	$54.06	1
035	86141297	Clutch Sensor	86141297 Clutch Sensor	$1,445.95	1
036	N10421101	PIN IN STOCK	N10421101 PIN IN STOCK	$0.32 MSRP: ~~7.35~~ (95.6% off)	2
037	N10295402	SCREW M5X20 IN STOCK	N10295402 SCREW M5X20 IN STOCK	$2.50 MSRP: ~~7.09~~ (64.7% off)	2
038	N90659905	SCREW HEX SOCKET M4 X 16 ARRIVING SOON	N90659905 SCREW HEX SOCKET M4 X 16 ARRIVING SOON	$9.28	2
039	410972846	SUPPORT	410972846 SUPPORT	$1.56 MSRP: ~~7.12~~ (78.1% off)	2
040	86323131A	BRACKET	86323131A BRACKET	$54.12	1
041	N91065401	SCREW M8X14 IN STOCK	N91065401 SCREW M8X14 IN STOCK	$2.38 MSRP: ~~7.22~~ (67% off)	2
043	N10124306	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N10124306 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$1.74	3
044	86323961	PLUG	86323961 PLUG	$45.94	1
045	N160276	PLUG	N160276 PLUG	-	1	Enquire
046	N138302	WASHER	N138302 WASHER	-	1	Enquire
047	N138494	WASHER	N138494 WASHER	-	1	Enquire
