Clutch (manual) of Lamborghini Lamborghini Murcielago LP670

View All

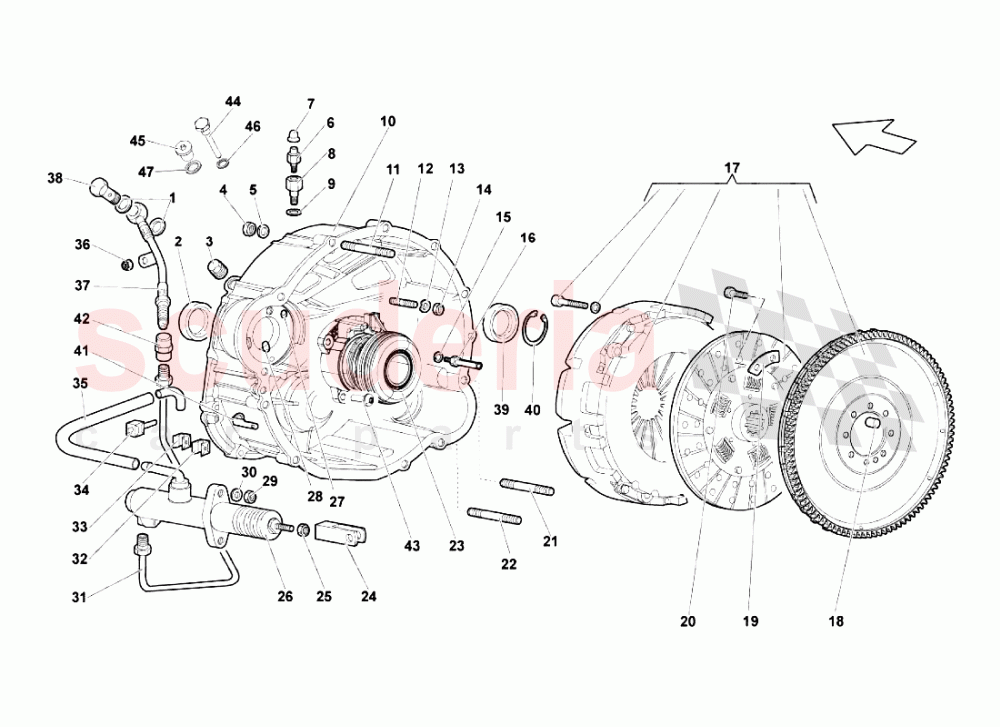

Lamborghini Murcielago LP670 - Clutch (manual)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N138131	WASHER	N138131 WASHER	-	2	Enquire
004	N1100845	NUT M8X1,25X6,5	N1100845 NUT M8X1,25X6,5	-	12	Enquire
005	WHT000771	WASHER IN STOCK	WHT000771 WASHER IN STOCK	$1.11	12
006	86301138	BLEEDER SCREW	86301138 BLEEDER SCREW	$23.97	1
007	86301147	DUST CAP IN STOCK	86301147 DUST CAP IN STOCK	$0.86 MSRP: ~~7.25~~ (88.1% off)	1
008	86323173B	CONNECTOR	86323173B CONNECTOR	$123.63	1
009	N91014802	SEAL RING	N91014802 SEAL RING	$11.04	1
010	86323209K	CLUTCH HOUSING	86323209K CLUTCH HOUSING	$3,046.98	1
011	WHT003027	STUD BOLT M8X35	WHT003027 STUD BOLT M8X35	$8.65	11
012	WHT002942	STUD BOLT	WHT002942 STUD BOLT	$10.30	3
013	WHT003213	WASHER	WHT003213 WASHER	$1.25 MSRP: ~~7.15~~ (82.5% off)	3
014	N1100637	NUT M6	N1100637 NUT M6	-	2	Enquire
017	7M105269	Balanced Mechanism Clutch	7M105269 Balanced Mechanism Clutch	$8,180.58	1
018	WHT003078	DOWEL	WHT003078 DOWEL	$41.20	1
019	410141179	Retaining Plate	410141179 Retaining Plate	$59.70	4
020	WHT002951	Hexagon Head Bolt M8x1.25x23 IN STOCK	WHT002951 Hexagon Head Bolt M8x1.25x23 IN STOCK	$18.33	8
021	WHT002944	STUD BOLT M8X50	WHT002944 STUD BOLT M8X50	$15.68	2
022	WHT003166	STUD BOLT M8X40	WHT003166 STUD BOLT M8X40	$47.33	1
023	86141671M	Thrust Bearing IN STOCK	86141671M Thrust Bearing IN STOCK	$1,025.99	1
024	410721213A	FORK	410721213A FORK	$138.57	1
025	N1100845	NUT M8X1,25X6,5	N1100845 NUT M8X1,25X6,5	-	1	Enquire
026	410721401A	CLUTCH PUMP	410721401A CLUTCH PUMP	$375.48	1
027	N90039604	O-RING 9.25 X 1.78 IN STOCK	N90039604 O-RING 9.25 X 1.78 IN STOCK	$10.94	1
028	WHT012530	O-RING 12.42X1.78-N IN STOCK	WHT012530 O-RING 12.42X1.78-N IN STOCK	$1.28	1
029	N1100845	NUT M8X1,25X6,5	N1100845 NUT M8X1,25X6,5	-	2	Enquire
030	N152785	WASHER 8.4	N152785 WASHER 8.4	-	2	Enquire
031	414721461B	PIPE	414721461B PIPE	$486.51	1
032	400611799F	CLAMP ( - 8)	400611799F CLAMP ( - 8)	$0.75	8
033	400971848	BRACKET 0 6 MM IN STOCK	400971848 BRACKET 0 6 MM IN STOCK	$0.60 MSRP: ~~7.29~~ (91.8% off)	2
034	400611757	JOURNAL IN STOCK	400611757 JOURNAL IN STOCK	$1.94 MSRP: ~~7.04~~ (72.4% off)	1
035	414721465	PIPE	414721465 PIPE	$21.21	1
036	WHT003226	NUT M12X1X7 IN STOCK	WHT003226 NUT M12X1X7 IN STOCK	$58.18	1
037	410721462B	HOSE	410721462B HOSE	$183.07	1
038	N210717	SCREW WITH HOLE	N210717 SCREW WITH HOLE	-	1	Enquire
039	86311819	SEAL RING	86311819 SEAL RING	$51.47	1
040	WHT003580	SEAL RING IN STOCK	WHT003580 SEAL RING IN STOCK	$14.24	1
041	410911085A	BRACKET	410911085A BRACKET	$25.34	1
042	410721419A	CONNECTOR	410721419A CONNECTOR	$327.26	1
043	N10124306	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N10124306 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$1.75	3
044	86323961	PLUG	86323961 PLUG	$46.10	1
045	N160276	PLUG	N160276 PLUG	-	1	Enquire
046	N138302	WASHER	N138302 WASHER	-	1	Enquire
047	N138494	WASHER	N138494 WASHER	-	1	Enquire
