Lamborghini Murcielago LP670 - Manual Pedal Cluster

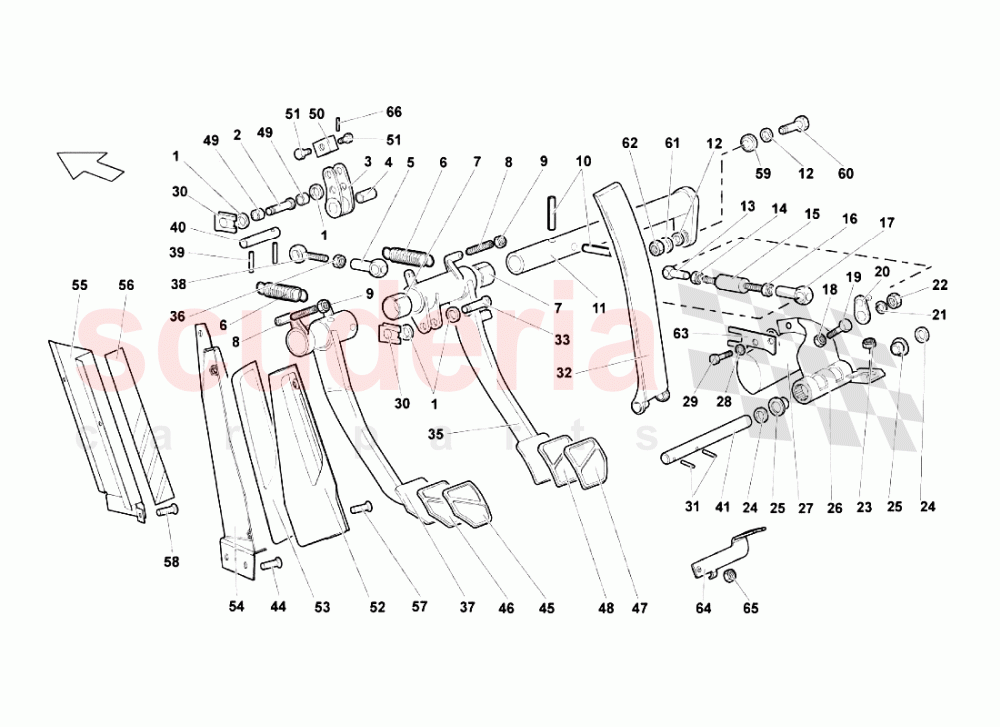

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N1152722	WASHER 10,5X21X2	N1152722 WASHER 10,5X21X2	-	4	Enquire
002	410721966	JOURNAL	410721966 JOURNAL	$189.13	1
003	410721385	LEVER	410721385 LEVER	$108.97	1
004	410721164A	BUSHING	410721164A BUSHING	$12.35	1
005	410721993	BALL JOINT COUPLING	410721993 BALL JOINT COUPLING	$71.26	1
006	410721363	SPRING	410721363 SPRING	$164.71	2
007	410721443	BUSHING	410721443 BUSHING	$226.09	2
008	410721671	ADJUSTING SLEEVE	410721671 ADJUSTING SLEEVE	$22.56	2
009	N1100637	NUT M6	N1100637 NUT M6	-	2	Enquire
010	WHT003109	PIN IN STOCK	WHT003109 PIN IN STOCK	$1.16 MSRP: ~~7.20~~ (83.9% off)	2
011	414721325	JOURNAL	414721325 JOURNAL	$3,250.31	1
012	WHT002631	WASHER 8X12X1	WHT002631 WASHER 8X12X1	$30.51	2
013	400721214E	BALL JOINT HEAD (LEFT HAND THREAD)	400721214E BALL JOINT HEAD (LEFT HAND THREAD)	$59.69	1
014	N10690001	NUT (LEFT HAND THREAD)	N10690001 NUT (LEFT HAND THREAD)	$491.09	1
015	400721743A	SHAFT	400721743A SHAFT	$37.57	1
016	N10689901	NUT M5	N10689901 NUT M5	$0.07 MSRP: ~~7.38~~ (99.1% off)	1
017	400721214D	BALL JOINT HEAD	400721214D BALL JOINT HEAD	$40.83	1
018	N1100845	NUT M8X1,25X6,5	N1100845 NUT M8X1,25X6,5	-	1	Enquire
019	N1033520	SCREW M8X35	N1033520 SCREW M8X35	-	1	Enquire
020	400721728C	LEVER	400721728C LEVER	$198.57	1
022	N2300212	NUT M6	N2300212 NUT M6	-	1	Enquire
023	N10609202	HEXAGON COLLAR NUT IN STOCK	N10609202 HEXAGON COLLAR NUT IN STOCK	$0.35	2
024	WHT000697	WASHER	WHT000697 WASHER	$0.91 MSRP: ~~7.24~~ (87.4% off)	2
025	410721543	BUSHING	410721543 BUSHING	$29.43	2
026	400721651A	SUPPORT	400721651A SUPPORT	$1,104.73	1
027	400907475A	POTENTIOMETER	400907475A POTENTIOMETER	$1,741.02	1
028	N115578	WASHER 6X12X1	N115578 WASHER 6X12X1	-	2	Enquire
029	N10546402	HEXAGON SOCKET HEAD BOLT	N10546402 HEXAGON SOCKET HEAD BOLT	$1.33 MSRP: ~~7.30~~ (81.8% off)	2
030	N126483	CLIP	N126483 CLIP	-	2	Enquire
031	N10206801	PIN	N10206801 PIN	$0.62 MSRP: ~~7.29~~ (91.5% off)	2
032	400721507A	ACCELERATOR PEDAL	400721507A ACCELERATOR PEDAL	$2,273.34	1
033	410721147	JOURNAL	410721147 JOURNAL	$267.43	1
035	414721145B	BRAKE PEDAL	414721145B BRAKE PEDAL	$581.18	1
036	N10155210	NUT IN STOCK	N10155210 NUT IN STOCK	$2.01 MSRP: ~~7.24~~ (72.2% off)	1
037	414721321A	CLUTCH PEDAL	414721321A CLUTCH PEDAL	$581.18	1
038	410721645	TIE ROD	410721645 TIE ROD	$76.15	1
039	N133481	SPRING PIN	N133481 SPRING PIN	-	2	Enquire
040	410721965	JOURNAL	410721965 JOURNAL	$28.00	1
041	400721157	JOURNAL	400721157 JOURNAL	$30.90	1
045	400721779	COVER	400721779 COVER	$574.92	1
046	400721173	COVER	400721173 COVER	$32.32	1
048	400721174C	COVER	400721174C COVER	$323.80	1
050	410721255	BLOCK	410721255 BLOCK	$62.07	1
051	410721379	SCREW	410721379 SCREW	$288.09	2
055	414864420A	FOOTREST DRIVER SIDE	414864420A FOOTREST DRIVER SIDE	$130.26	1
056	414864432	COVER	414864432 COVER	$198.53	1
058	N90780901	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N90780901 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$2.89 MSRP: ~~7.38~~ (60.8% off)	3
059	410721427	BALL JOINT	410721427 BALL JOINT	$84.31	1
060	WHT003270	JOURNAL	WHT003270 JOURNAL	$43.98	1
061	N90179103	WASHER 18X8,4X2,5 IN STOCK	N90179103 WASHER 18X8,4X2,5 IN STOCK	$1.44	1
062	N1118410	NUT M8	N1118410 NUT M8	-	1	Enquire
063	410971806	SUPPORT	410971806 SUPPORT	$32.07	1
064	414971362	SUPPORT	414971362 SUPPORT	$53.22	1
065	N1508213	NUT M6	N1508213 NUT M6	-	1	Enquire
066	N133311	PIN 2.0X12.0	N133311 PIN 2.0X12.0	-	2	Enquire
