Rear Differential Gearbox Control Tower of Lamborghini Lamborghini Diablo SV (1999)

View All

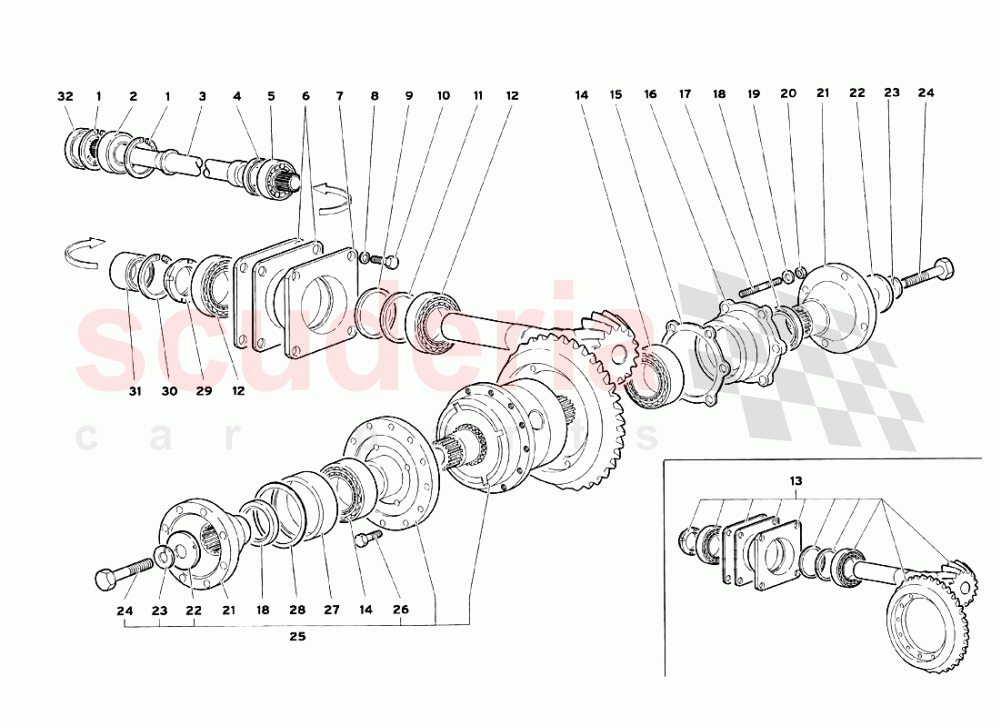

Lamborghini Diablo SV (1999) - Rear Differential Gearbox Control Tower

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8575501	RETAINING RING	8575501 RETAINING RING ANELLO RITEGNO	$1.23 MSRP: ~~7.13~~ (82.7% off)	2
002	410103520	BEARING	410103520 BEARING CUSCINETTO	$65.04	1
003	2330969	SHAFT	2330969 SHAFT ALBERO TRASMISSIONE	$1,595.49	1
004	8613510	SEAL	8613510 SEAL ANELLO TENUTA	$43.05 MSRP: ~~48.50~~ (11.2% off)	1
005	8503010	BEARING	8503010 BEARING CUSCINETTO	$20.33 MSRP: ~~22.80~~ (10.8% off)	1
006	2324939	SHIM	2324939 SHIM SPESSORE Dl REGISTRO	$40.71	1
007	2324938	FLANGE	2324938 FLANGE FLANGIA	$749.96 MSRP: ~~835.00~~ (10.2% off)	1
008	8410822	WASHER	8410822 WASHER RONDELLA	$0.33 MSRP: ~~7.33~~ (95.5% off)	4
009	2330697	SHIM	2330697 SHIM SPESSORE Dl REGISTRO 0,15 MM	$22.90 MSRP: ~~25.65~~ (10.7% off)	1
009	2330695	SHIM	2330695 SHIM SPESSORE Dl REGISTRO 0,25 MM	$37.98	1
009	2330696	SHIM	2330696 SHIM SPESSORE Dl REGISTRO 0,2 MM	$37.98	1
009	2330693	SHIM	2330693 SHIM SPESSORE Dl REGISTRO 0,5 MM	$22.90 MSRP: ~~25.65~~ (10.7% off)	1
009	2330694	SHIM	2330694 SHIM SPESSORE Dl REGISTRO 0,3 MM	$37.98	1
010	8100821	SCREW	8100821 SCREW VITE	$1.20	4
011	2328764	SPACER	2328764 SPACER DISTANZIALE	$57.84 MSRP: ~~62.80~~ (7.9% off)	1
012	8545004	BEARING	8545004 BEARING CUSCINETTO	$145.41	2
013	2337199	BEVEL SET	2337199 BEVEL SET COPPIA CONICA	$3,871.90	1
014	8545002	BEARING	8545002 BEARING CUSCINETTO	$555.11	2
015	2324942	SHIM	2324942 SHIM SPESSORE Dl REGISTRO	$51.30	1
016	2324452	FLANGE	2324452 FLANGE FLANGIA PORTACUSCINETTO	$236.02 MSRP: ~~257.00~~ (8.2% off)	1
017	8301022	STUD	8301022 STUD PRIGIONIERO	$11.21 MSRP: ~~12.55~~ (10.7% off)	6
018	8614507	SEAL	8614507 SEAL ANELLO TENUTA	$46.28	2
019	WHT000768	WASHER IN STOCK	WHT000768 WASHER IN STOCK	$1.82 MSRP: ~~7.28~~ (75% off)	6
020	N10155210	NUT IN STOCK	N10155210 NUT DADO IN STOCK	$2.00 MSRP: ~~7.24~~ (72.4% off)	6
021	2333623	FLANGE	2333623 FLANGE FLANGIA PORTA SEMIASSE	$339.31 MSRP: ~~368.00~~ (7.8% off)	2
022	2332653	WASHER	2332653 WASHER RONDELLA	$113.90	2
023	2332652	WASHER	2332652 WASHER RONDELLA	$9.00 MSRP: ~~9.85~~ (8.6% off)	2
024	2332651	SCREW	2332651 SCREW VITE	$20.90 MSRP: ~~23.35~~ (10.5% off)	2
025	2332210	KIT DIFFERENTIAL	2332210 KIT DIFFERENTIAL KIT DIFFERENZIALE	-	1	Enquire
026	2332650	SCREW	2332650 SCREW VITE	$25.39 MSRP: ~~27.55~~ (7.8% off)	12
027	2324940	BEARING CASE	2324940 BEARING CASE ANELLO PORTACUSCINETTO	$1,216.91	1
028	2331918	SHIM	2331918 SHIM SPESSORE Dl REGISTRO 0,3 MM	$22.90 MSRP: ~~25.65~~ (10.7% off)	1
028	2331917	SHIM	2331917 SHIM SPESSORE Dl REGISTRO 0,5 MM	$26.73	1
028	2331920	SHIM	2331920 SHIM SPESSORE Dl REGISTRO 0,2 MM	$22.90 MSRP: ~~25.65~~ (10.7% off)	1
028	2331919	SHIM	2331919 SHIM SPESSORE Dl REGISTRO 0,25 MM	$22.90 MSRP: ~~25.65~~ (10.7% off)	1
028	2331921	SHIM	2331921 SHIM SPESSORE Dl REGISTRO 0,15 MM	$22.90 MSRP: ~~25.65~~ (10.7% off)	1
029	8254503	PLUG	8254503 PLUG GHIERA	$181.10	1
030	8575002	RETAINER RING	8575002 RETAINER RING ANELLO RITEGNO	$5.20 MSRP: ~~5.70~~ (8.8% off)	1
031	8524014	BEARING	8524014 BEARING CUSCINETTO	$190.44 MSRP: ~~213.50~~ (10.8% off)	1
032	86311819	SEAL RING	86311819 SEAL RING	$51.31	1
