Driven Shaft of Lamborghini Lamborghini Diablo SV (1999)

View All

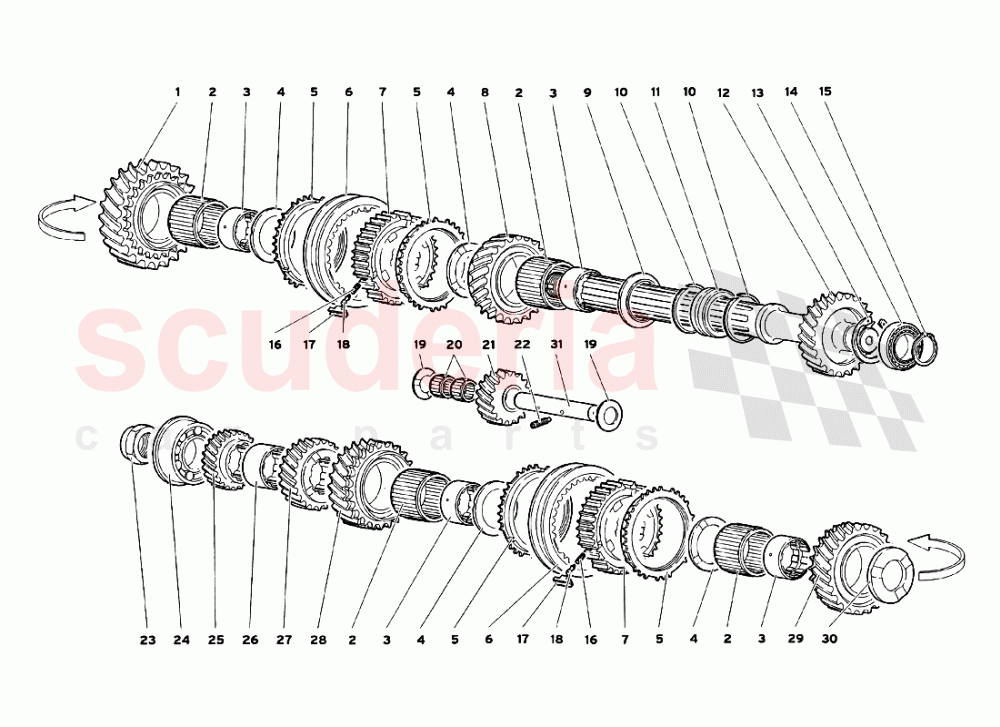

Lamborghini Diablo SV (1999) - Driven Shaft

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	2424886	GEAR	2424886 GEAR INGRANAGGIO 1 - MARCIA	$1,840.01 MSRP: ~~2,060.00~~ (10.7% off)	1
002	8524701	ROLLER CAGE	8524701 ROLLER CAGE GABBIA A RULLI	$44.47 MSRP: ~~50.10~~ (11.2% off)	4
003	2420124	SPLINED BUSHING	2420124 SPLINED BUSHING BOCCOLA DENTATA	$806.19	4
004	2424864	WASHER	2424864 WASHER RONDELLA	$1,520.84	4
005	2421416	FRICTION RING	2421416 FRICTION RING ANELLO SINCRONIZZATORE	$1,419.88	4
006	2425150	SLEEVE T/OBEARING	2425150 SLEEVE T/OBEARING MANICOTTO DISINNESTO	$1,286.28 MSRP: ~~1,395.00~~ (7.8% off)	2
007	2421680	SYNCHRONIZER	2421680 SYNCHRONIZER CORPO SINCRONIZZATORE	$301.09 MSRP: ~~326.00~~ (7.6% off)	2
008	2424891	GEAR	2424891 GEAR INGRANAGGIO R.M.	$415.29 MSRP: ~~451.00~~ (7.9% off)	1
009	2424860	SHIM	2424860 SHIM DISTANZIALE	$119.40 MSRP: ~~129.50~~ (7.8% off)	1
010	8576201	RETAINER RING	8576201 RETAINER RING ANELLO RITEGNO	$2.85 MSRP: ~~3.00~~ (5% off)	2
011	8524011	BEARING	8524011 BEARING CUSCINETTO	$138.64	1
012	2437436	COUNTERSHAFT	2437436 COUNTERSHAFT ALBERO SECONDARIO	$3,178.18 MSRP: ~~3,445.00~~ (7.7% off)	1
013	8576601	RETAINER RING	8576601 RETAINER RING ANELLO RITEGNO	$0.76 MSRP: ~~7.26~~ (89.5% off)	1
014	8523009	BEARING	8523009 BEARING CUSCINETTO	$62.46	1
015	8583001	RETAINER RING	8583001 RETAINER RING ANELLO RITEGNO	$8.99	1
016	2421418	SPRING	2421418 SPRING MOLLA	$62.86	6
017	2421420	BRAKE PAD	2421420 BRAKE PAD PATTING	$27.62	6
018	2421419	PIN	2421419 PIN PERNO	$32.37	6
019	2424862	WASHER	2424862 WASHER RONDELLA	$212.27 MSRP: ~~230.50~~ (7.9% off)	2
020	8522008	ROLLER CAGE	8522008 ROLLER CAGE GABBIA A RULLI	$25.21	2
021	2424869	GEAR	2424869 GEAR INGRANAGGIO R.M.	$226.12 MSRP: ~~245.50~~ (7.9% off)	1
022	8700649	SCREW	8700649 SCREW VITE	$7.38 MSRP: ~~8.25~~ (10.5% off)	1
023	2431824	NUT	2431824 NUT DADO	$250.35	1
024	8503006	BEARING	8503006 BEARING CUSCINETTO	$646.02	1
025	24001213	GEAR	24001213 GEAR INGRANAGGIO 5 - MARCIA	$238.81 MSRP: ~~260.00~~ (8.2% off)	1
026	24001451	SPLINED BUSHING	24001451 SPLINED BUSHING BOCCOLA DENTATA	$55.49 MSRP: ~~60.30~~ (8% off)	1
027	24001638	GEAR	24001638 GEAR INGRANAGGIO 4 - MARCIA	$246.30 MSRP: ~~267.00~~ (7.8% off)	1
028	2424888	GEAR	2424888 GEAR INGRANAGGIO 3 - MARCIA	$1,626.59 MSRP: ~~1,820.00~~ (10.6% off)	1
029	2427098	GEAR	2427098 GEAR INGRANAGGIO 2 - MARCIA	$4,649.97	1
030	2424863	WASHER	2424863 WASHER RONDELLA	$92.18 MSRP: ~~100.50~~ (8.3% off)	1
031	2424865	SMALL SHAFT	2424865 SMALL SHAFT ALBERINO	$105.38	1
