Pedals of Lamborghini Lamborghini Diablo SV (1999)

View All

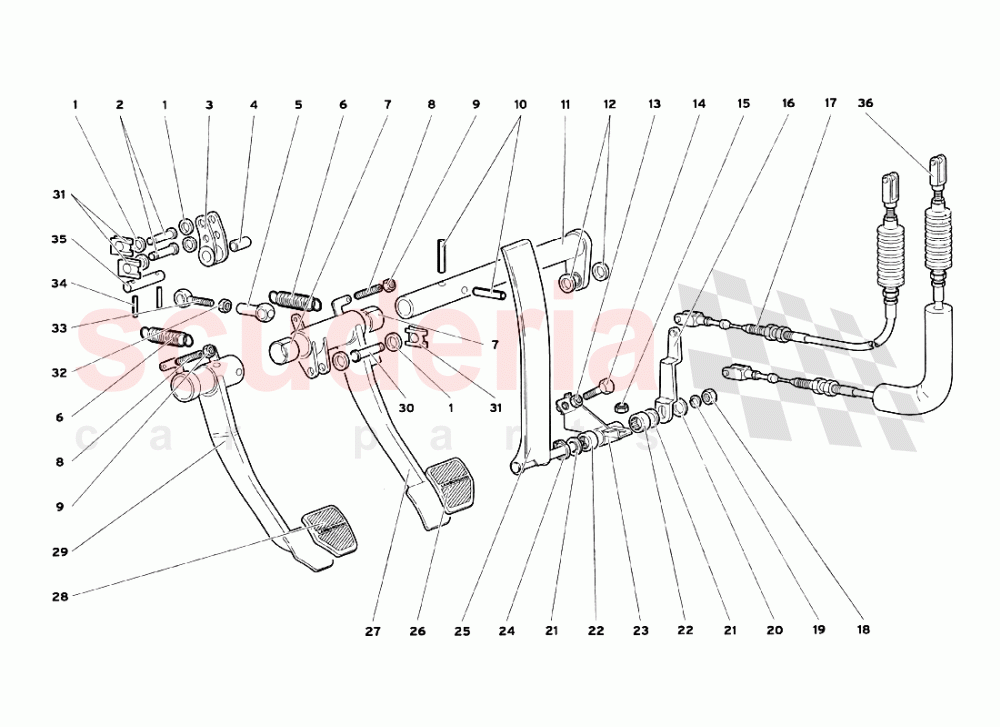

Lamborghini Diablo SV (1999) - Pedals

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8401007	WASHER	8401007 WASHER RONDELLA	$0.08 MSRP: ~~7.38~~ (98.9% off)	6
002	4232621	PIN	4232621 PIN PERNO	$34.96 MSRP: ~~39.30~~ (11% off)	2
003	4225060	ROCKER	4225060 ROCKER LEVA	$69.93 MSRP: ~~78.60~~ (11% off)	1
004	8801209	BUSHING	8801209 BUSHING BOCCOLA	$8.87 MSRP: ~~9.90~~ (10.4% off)	1
005	4225061	COUPLING	4225061 COUPLING TESTA A SNODO	$63.38 MSRP: ~~71.40~~ (11.2% off)	1
006	42004879	SPRING	42004879 SPRING MOLLA	-	2	Enquire
007	8802501	BUSHING	8802501 BUSHING BOCCOLA	$20.35 MSRP: ~~22.90~~ (11.1% off)	2
008	4210834	ADJUSTING SLEEVE	4210834 ADJUSTING SLEEVE TESTA REGISTRO	$4.22 MSRP: ~~4.70~~ (10.2% off)	2
009	N01100637	NUT M6 IN STOCK	N01100637 NUT M6 DADO IN STOCK	$0.30 MSRP: ~~7.29~~ (95.9% off)	2
010	8900803	PIN	8900803 PIN SA	$0.88 MSRP: ~~7.19~~ (87.8% off)	2
011	4225064	SHAFT	4225064 SHAFT ALBERO	-	1	Enquire
012	8400819	WASHER 8X12X1	8400819 WASHER 8X12X1 RONDELLA	$0.54 MSRP: ~~7.29~~ (92.6% off)	2
013	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.93	1
014	8100828	SCREW	8100828 SCREW VITE	$0.58 MSRP: ~~7.27~~ (92% off)	1
015	8200804	NUT M8 IN STOCK	8200804 NUT M8 DADO IN STOCK	$1.08 MSRP: ~~7.28~~ (85.2% off)	2
016	4238042	LEVER	4238042 LEVER LEVA	$31.63 MSRP: ~~35.60~~ (11.2% off)	1
017	4230089	GAS CABLE	4230089 GAS CABLE TIRANTE ACCEtEMf^K	$1,064.48	1
018	N0111849	NUT IN STOCK	N0111849 NUT DADO IN STOCK	$2.12 MSRP: ~~7.25~~ (70.8% off)	1
019	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.44	1
020	8400801	WASHER	8400801 WASHER RONDELLA	$0.63	1
021	8401220	WASHER	8401220 WASHER RONDELLA	$5.56 MSRP: ~~6.15~~ (9.6% off)	2
022	8521205	BEARING	8521205 BEARING CUSCINETTO	$10.25 MSRP: ~~11.45~~ (10.5% off)	2
023	4231811	SUPPORT - SUPPORTO	4231811 SUPPORT - SUPPORTO O	$233.28 MSRP: ~~262.00~~ (11% off)	1
024	8581101	RETAINER RING	8581101 RETAINER RING ANELLO RITEGNO	$5.41 MSRP: ~~6.00~~ (9.8% off)	1
025	4230143	GAS PEDAL	4230143 GAS PEDAL PEDALE ACCELERATORE	$508.05 MSRP: ~~571.00~~ (11% off)	1
026	4228351	PEDAL PAD	4228351 PEDAL PAD COPRIPEDALE COMMA	$69.09	1
027	42001105	BRAKE PEDAL	42001105 BRAKE PEDAL PEDALE FRENO	$362.88 MSRP: ~~408.00~~ (11.1% off)	1
028	4228349	PEDAL PAD	4228349 PEDAL PAD COPRIPEDALE COMMA	$43.81	1
029	4235355	CLUTCH PEDAL	4235355 CLUTCH PEDAL PEDALE FRIZIONE	$362.88 MSRP: ~~408.00~~ (11.1% off)	1
030	4232622	PIN	4232622 PIN PERNO	$24.68 MSRP: ~~26.80~~ (7.9% off)	1
031	8581004	CLIP	8581004 CLIP MOLLETTA	$8.70 MSRP: ~~9.70~~ (10.3% off)	1
032	N10155210	NUT IN STOCK	N10155210 NUT DADO IN STOCK	$2.00 MSRP: ~~7.24~~ (72.4% off)	1
033	4225062	TIE ROD	4225062 TIE ROD TIRANTE	$60.82 MSRP: ~~68.50~~ (11.2% off)	1
034	8900305	PIN - SPINA	8900305 PIN - SPINA SA	$0.25 MSRP: ~~7.35~~ (96.6% off)	2
035	4225074	PIN	4225074 PIN PERNO	-	1	Enquire
036	4236013	TIE ROD	4236013 TIE ROD (Valid for CANADA - July 1999) TIRANTE ACCELERATORE	$144.58 MSRP: ~~161.50~~ (10.5% off)	1
036	4236013	TIE ROD	4236013 TIE ROD (Valid for USA - July 1999) TIRANTE ACCELERATORE	$144.58 MSRP: ~~161.50~~ (10.5% off)	1
