Main Shaft of Lamborghini Lamborghini Diablo SV (1999)

View All

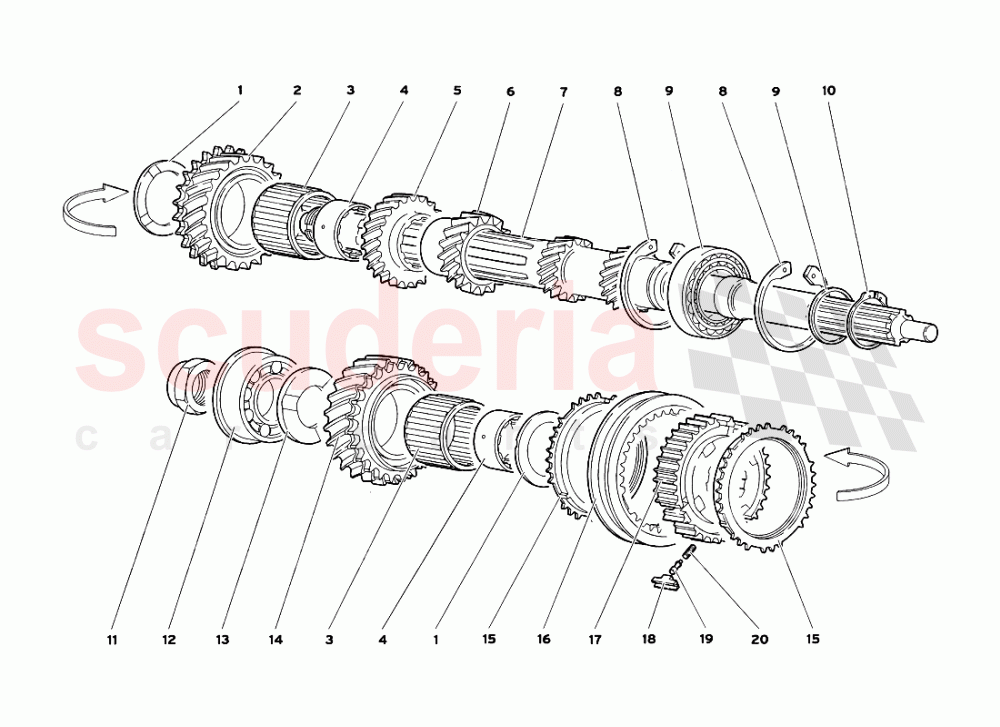

Lamborghini Diablo SV (1999) - Main Shaft

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	2424864	WASHER	2424864 WASHER DISTANZIALE	$1,523.36	2
002	24001637	GEAR	24001637 GEAR INGRANAGGIO 4 - MARCIA	-	1	Enquire
003	8524701	ROLLER CAGE	8524701 ROLLER CAGE GABBIA A RULLI	$44.54 MSRP: ~~50.10~~ (11.1% off)	2
004	2420124	SPLINED BUSHING	2420124 SPLINED BUSHING BOCCOLA DENTATA	$807.52	2
005	2424873	GEAR	2424873 GEAR INGRANAGGIO 3 - MARCIA	$238.04 MSRP: ~~259.00~~ (8.1% off)	1
006	2427097	GEAR	2427097 GEAR INGRANAGGIO 2 - MARCIA	$233.99 MSRP: ~~254.00~~ (7.9% off)	1
007	2430938	MAIN SHAFT	2430938 MAIN SHAFT ALBERO PRIMARIO	$989.12 MSRP: ~~1,075.00~~ (8% off)	1
008	8578001	RETAINER RING	8578001 RETAINER RING ANELLO RITEGNO	$6.16	2
009	8524010	BEARING	8524010 BEARING CUSCINETTO	-	1	Enquire
010	2424859	RING	2424859 RING ANELLO	$22.03 MSRP: ~~23.90~~ (7.8% off)	1
011	2431824	NUT	2431824 NUT DADO	$250.76	1
012	8503006	BEARING	8503006 BEARING CUSCINETTO	$647.09	1
013	2424861	SPACER	2424861 SPACER DISTANZIALE	$136.84	1
014	24001212	GEAR	24001212 GEAR INGRANAGGIO 5 - MARCIA	$406.75 MSRP: ~~441.00~~ (7.8% off)	1
015	2421416	FRICTION RING	2421416 FRICTION RING ANELLO SINCRONIZZATORE	$1,422.23	2
016	2425150	SLEEVE T/OBEARING	2425150 SLEEVE T/OBEARING ANELLO INNESTO	$1,288.41 MSRP: ~~1,395.00~~ (7.6% off)	1
017	2421680	SYNCHRONIZER	2421680 SYNCHRONIZER CORPO SINCRONIZZATORE	$301.59 MSRP: ~~326.00~~ (7.5% off)	1
018	2421420	BRAKE PAD	2421420 BRAKE PAD PATTING	$27.66	3
019	2421419	PIN	2421419 PIN PERNO	$32.42	3
020	2421418	SPRING	2421418 SPRING MOLLA	$62.96	3
