Oil Sump

Lamborghini Diablo SV (1999)

Find Your Part

Lamborghini Diablo SV (1999) - Oil Sump

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

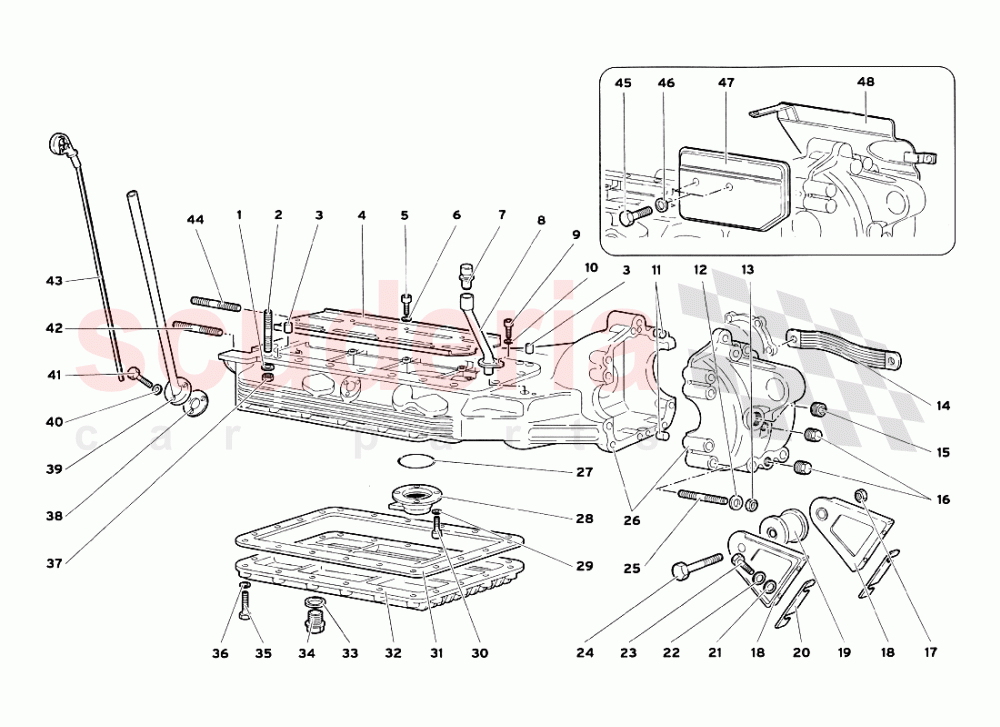

Oil Sump of Lamborghini Lamborghini Diablo SV (1999) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 WHT000771
WASHER
RONDELLA
IN STOCK 		$1.10 18
002 8300897
STUD
PRIGIONIERO 106 MM 		$13.82 (10.8% off) 4
002 8300806
STUD
PRIGIONIERO 70 MM 		$5.17 (9.3% off) 6
002 WHT003031
STUD BOLT
PRIGIONIERO 28 MM 		$9.04 8
003 8850806
DOWEL
GRANO 		- 2 Enquire
004 1827775
PLATE
PARATIA ANTISBATTIMENTO 		$79.19 (8.3% off) 1
005 8700644
SCREW
VITE 		$0.34 (95.4% off) 8
006 8410602
WASHER
RONDELLA
IN STOCK 		$41.56 8
007 B9507141
OIL BREATHER PIPE
SFIATO OLIO 		$64.59 1
008 23001636
PIPE
TUBO 		$81.23 (8.2% off) 1
009 8700547
SCREW
VITE
IN STOCK 		$0.15 (98% off) 1
010 8410503
WASHER
RONDELLA 		$0.18 (97.6% off) 1
011 8850806
DOWEL
GRANO 		- 2 Enquire
012 WHT000768
WASHER
IN STOCK 		$1.82 (75% off) 10
013 N10155210
NUT
DADO
IN STOCK 		$2.00 (72.4% off) 10
014 1604328
GROUND CABLE
CAVO MASSA 		- 2 Enquire
015 8932602
PLUG
TAPPO 		$3.28 (10.1% off) 1
016 86301141A
MAGNETIC PLUG
TAPPO MAGNETICO 		$34.75 2
017 8201416
NUT
DADO 		$1.61 1
018 4126765
BRACKET
STAFFA 		$253.97 (11.5% off) 2
019 B9501144
support mount
IN STOCK 		$186.13 (2.3% off) 1
020 4126766
SPACER
SPESSORE DI REGISTRO 		- 1 Enquire
021 8400801
WASHER
RONDELLA 		$0.63 4
022 N0152785
WASHER
RONDELLA
IN STOCK 		$0.44 4
023 8100862
SCREW
VITE 		$0.59 4
024 8101430
SCREW
VITE 		$3.28 (10.1% off) 1
025 18001643
STUD
PRIGIONIERO 		$11.96 (8.4% off) 10
026 450132001
OIL SUMP
COPPA OLIO 		$8,520.58 (8.1% off) 1
027 8609302
SEAL
ANELLO TENUTA 		- 1 Enquire
028 1832017
FLANGE
FLANGIA 		$303.37 (8.1% off) 1
029 8410602
WASHER
RONDELLA
IN STOCK 		$41.56 4
030 8700644
SCREW
VITE 		$0.34 (95.4% off) 4
031 1826521
GASKET
GUARNIZIONE 		$115.48 1
032 1831852
LOWER COVER
COPERCHIOINFERIORE 		$513.45 1
033 8402202
WASHER
RONDELLA
IN STOCK 		$3.98 (10.6% off) 1
034 8932211
Drain Plug
TAPPO Dl SCARICO 		$23.93 1
035 8100603
SCREW
VITE 		$1.28 (82.6% off) 20
036 8410602
WASHER
RONDELLA
IN STOCK 		$41.56 20
037 N01100845
HEXAGON NUT
DADO
IN STOCK 		$1.93 18
038 1830006
GASKET
GUARNIZIONE 		$7.79 1
039 1837263
PIPE
TUBO PORTA ASTA 		$96.08 (8.5% off) 1
040 8410602
WASHER
RONDELLA
IN STOCK 		$41.56 3
041 8100601
SCREW
VITE 		$0.25 3
042 8300808
STUD BOLT
use : WHT003027 		$5.63 2
043 1837261
LEVEL ROD
ASTA LIVELLO 		$321.75 1
044 WHT003028
THREADED PIN
PRIGIONIERO 		$20.65 1
045 N0124032
SCREW
(Valid for CANADA - July 1999) VITE 		- 2 Enquire
045 N0124032
SCREW
(Valid for USA - July 1999) VITE 		- 2 Enquire
046 8400801
WASHER
(Valid for USA - July 1999) RONDELLA 		$0.63 2
046 8400801
WASHER
(Valid for CANADA - July 1999) RONDELLA 		$0.63 2
047 1836047
PLATE
(Valid for USA - July 1999) PARATIA 		$372.32 (8.5% off) 1
047 1836047
PLATE
(Valid for CANADA - July 1999) PARATIA 		$372.32 (8.5% off) 1
048 1836048
PLATE
(Valid for USA - July 1999) PARATIA 		$372.32 (8.5% off) 1
048 1836048
PLATE
(Valid for CANADA - July 1999) PARATIA 		$372.32 (8.5% off) 1
