Accessories for Right Cylinder Head 2 of Lamborghini Lamborghini Diablo SV (1999)

View All

Lamborghini Diablo SV (1999) - Accessories for Right Cylinder Head 2

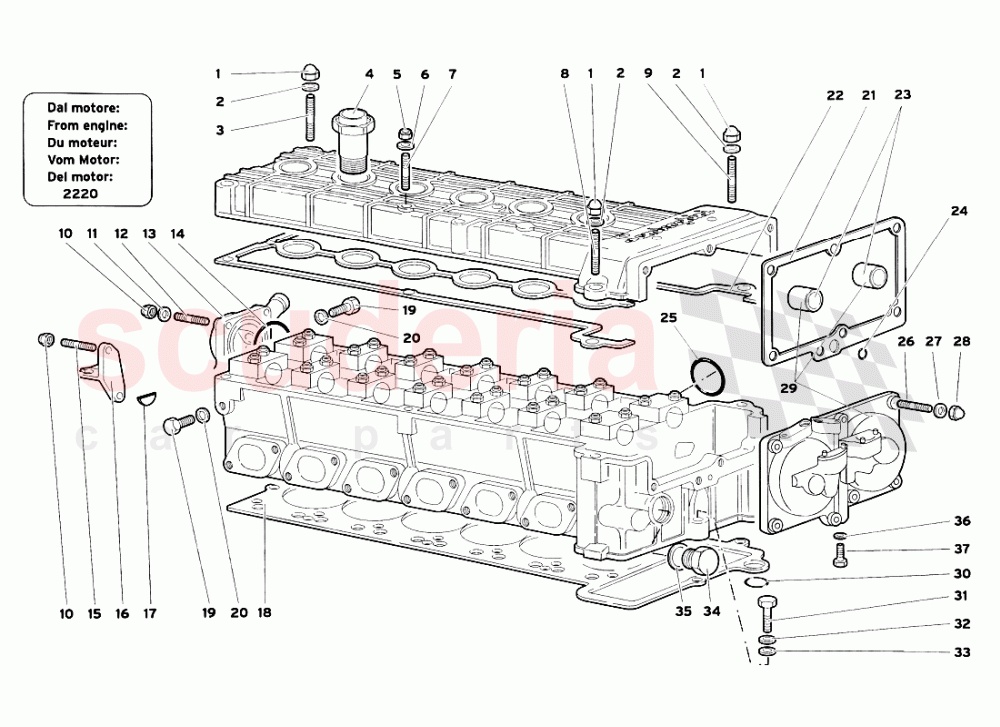

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.86	3
002	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	3
003	8300649	STUD BOLT	8300649 STUD BOLT PRIGIONIERO	$8.86 MSRP: ~~9.85~~ (10.1% off)	1
004	1134281	UNION	1134281 UNION BOCCHETTONE	$190.43 MSRP: ~~206.50~~ (7.8% off)	6
005	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.08	1
006	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	1
007	8300613	STUD BOLT	8300613 STUD BOLT PRIGIONIERO	$4.63 MSRP: ~~5.10~~ (9.2% off)	1
008	8300651	STUD BOLT	8300651 STUD BOLT PRIGIONIERO	$11.08 MSRP: ~~12.30~~ (9.9% off)	1
009	8300637	STUD BOLT	8300637 STUD BOLT PRIGIONIERO	$13.39 MSRP: ~~15.00~~ (10.7% off)	1
010	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.86	8
011	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.87	6
012	8300601	STUD BOLT	8300601 STUD BOLT PRIGIONIERO	$8.04	4
013	1133383	VENT PIPE	1133383 VENT PIPE COPERCHIO - SFIATO	$162.06 MSRP: ~~176.00~~ (7.9% off)	1
014	8606205	O-Ring	8606205 O-Ring ANELLO TENUTA	$4.01	1
015	8300613	STUD BOLT	8300613 STUD BOLT PRIGIONIERO	$4.63 MSRP: ~~5.10~~ (9.2% off)	2
016	11003953	SUPPORT	11003953 SUPPORT FERMAGUAINA	$42.77 MSRP: ~~46.25~~ (7.5% off)	1
017	11003411	COVER	11003411 COVER COPERCHIO	-	1	Enquire
018	11000987	GASKET	11000987 GASKET GUARNIZIONE	$366.04	1
019	8100839	SCREW	8100839 SCREW VITE	$0.43 MSRP: ~~7.31~~ (94.1% off)	3
020	8400818	WASHER	8400818 WASHER RONDELLA	-	3	Enquire
021	11003889	GASKET	11003889 GASKET GUARNIZIONE	$30.19	1
022	11003696	GASKET	11003696 GASKET GUARNIZIONE	$120.40	1
023	11000038	BUSHING	11000038 BUSHING BOCCOLA	$52.14	2
024	8600906	SEAL	8600906 SEAL ANELLO TENUTA	-	1	Enquire
025	8604703	SEAL RING	8604703 SEAL RING ANELLO TENUTA	$7.62 MSRP: ~~8.45~~ (9.8% off)	6
026	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO	$20.81	7
027	WHT000771	WASHER IN STOCK	WHT000771 WASHER RONDELLA IN STOCK	$1.11	7
028	8200816	NUT	8200816 NUT DADO	$4.80	7
029	11006398	COVER	11006398 COVER COPERCHIO COMPLETO	$789.55 MSRP: ~~853.00~~ (7.4% off)	1
030	8601203	SEAL	8601203 SEAL ANELLO TENUTA	$0.82	1
031	8100807	SCREW	8100807 SCREW VITE	$0.78 MSRP: ~~7.27~~ (89.3% off)	1
032	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.44	1
033	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.44 MSRP: ~~7.15~~ (79.9% off)	1
034	7M103035	PLUG	7M103035 PLUG	$59.32	1
035	8402609	WASHER	8402609 WASHER RONDELLA	-	1	Enquire
036	WHT003041	WASHER IN STOCK	WHT003041 WASHER RONDELLA IN STOCK	$0.83 MSRP: ~~7.31~~ (88.6% off)	1
037	8100631	SCREW	8100631 SCREW VITE	$0.11 MSRP: ~~7.37~~ (98.5% off)	1
