Accessories for Left Cylinder Head 2 of Lamborghini Lamborghini Diablo SV (1999)

View All

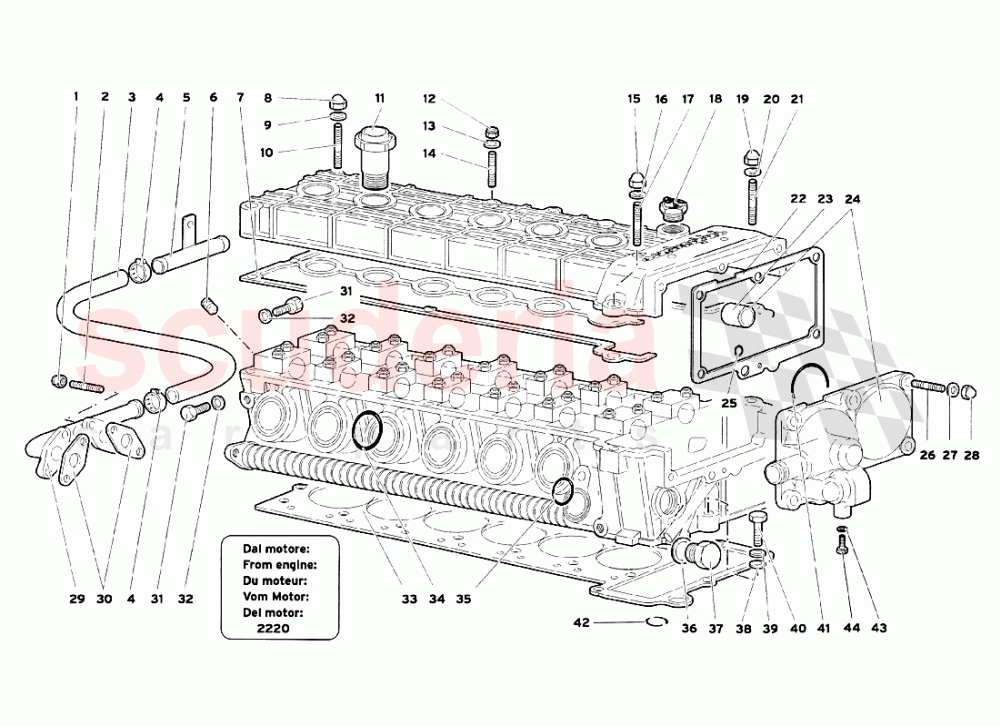

Lamborghini Diablo SV (1999) - Accessories for Left Cylinder Head 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.86	4
002	8300610	STUD BOLT	8300610 STUD BOLT PRIGIONIERO	$22.97 MSRP: ~~25.65~~ (10.4% off)	4
003	410819370	Sleeve for Auxiliary Water Pump IN STOCK	410819370 Sleeve for Auxiliary Water Pump TUBO IN STOCK	$61.12	1
004	8832003	CLAMP IN STOCK	8832003 CLAMP FASCETTA IN STOCK	$41.15	2
005	1730064	CONNECTION	1730064 CONNECTION GIUNZIONE INTERMEDIA	$22.03 MSRP: ~~23.90~~ (7.8% off)	1
006	8700644	SCREW	8700644 SCREW TAPPO	$0.35 MSRP: ~~7.34~~ (95.2% off)	1
007	1103695	GASKET	1103695 GASKET GUARNIZIONE	-	1	Enquire
008	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.86	1
009	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.87	1
010	8300650	STUD BOLT	8300650 STUD BOLT PRIGIONIERO	$11.24 MSRP: ~~12.55~~ (10.4% off)	1
011	1134281	UNION	1134281 UNION BOCCHETTONE	$190.43 MSRP: ~~206.50~~ (7.8% off)	6
012	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.08	1
013	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	1
014	8300613	STUD BOLT	8300613 STUD BOLT PRIGIONIERO	$4.63 MSRP: ~~5.10~~ (9.2% off)	1
015	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.86	1
016	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.87	1
017	8300637	STUD BOLT	8300637 STUD BOLT PRIGIONIERO	$13.39 MSRP: ~~15.00~~ (10.7% off)	1
018	1136032	CAP	1136032 CAP TAPPO INTRODUZIOWt	$13.02 MSRP: ~~14.15~~ (8% off)	1
019	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.86	1
020	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.87	1
021	8300651	STUD BOLT	8300651 STUD BOLT PRIGIONIERO	$11.08 MSRP: ~~12.30~~ (9.9% off)	1
022	11004551	GASKET	11004551 GASKET GUARNIZIONE	$33.45	1
023	11000038	BUSHING	11000038 BUSHING BOCCOLA	$52.14	1
024	11006399	VENT PIPE - COVER	11006399 VENT PIPE - COVER COPERCHIO - SFIATO COMPLETO	$691.15 MSRP: ~~747.00~~ (7.5% off)	1
025	8600906	SEAL	8600906 SEAL ANELLO TENUTA	-	1	Enquire
026	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO	$20.81	7
027	WHT000771	WASHER IN STOCK	WHT000771 WASHER RONDELLA IN STOCK	$1.11	7
028	8200816	NUT	8200816 NUT DADO	$4.80	7
029	1734153	PIPE	1734153 PIPE RACCORDO	$692.89	1
030	1121254	GASKET	1121254 GASKET GUARNIZIONE	$8.71	2
031	8100839	SCREW	8100839 SCREW VITE	$0.43 MSRP: ~~7.31~~ (94.1% off)	2
032	8400818	WASHER	8400818 WASHER RONDELLA	-	2	Enquire
033	11000988	Gasket	11000988 Gasket GUARNIZIONE	$378.07	1
034	8604703	SEAL RING	8604703 SEAL RING ANELLO TENUTA	$7.62 MSRP: ~~8.45~~ (9.8% off)	6
035	8603503	SEAL RING	8603503 SEAL RING ANELLO TENUTA	$3.88	2
036	8402609	WASHER	8402609 WASHER RONDELLA	-	1	Enquire
037	7M103035	PLUG	7M103035 PLUG	$59.32	1
038	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.44 MSRP: ~~7.15~~ (79.9% off)	1
039	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.44	1
040	8100807	SCREW	8100807 SCREW VITE	$0.78 MSRP: ~~7.27~~ (89.3% off)	1
041	8606205	O-Ring	8606205 O-Ring ANELLO TENUTA	$4.01	3
042	8601203	SEAL	8601203 SEAL ANELLO TENUTA	$0.82	1
043	WHT003041	WASHER IN STOCK	WHT003041 WASHER RONDELLA IN STOCK	$0.83 MSRP: ~~7.31~~ (88.6% off)	1
044	8100631	SCREW	8100631 SCREW VITE	$0.11 MSRP: ~~7.37~~ (98.5% off)	1
