Accessories for Right Cylinder Head 1 of Lamborghini Lamborghini Diablo SV (1999)

View All

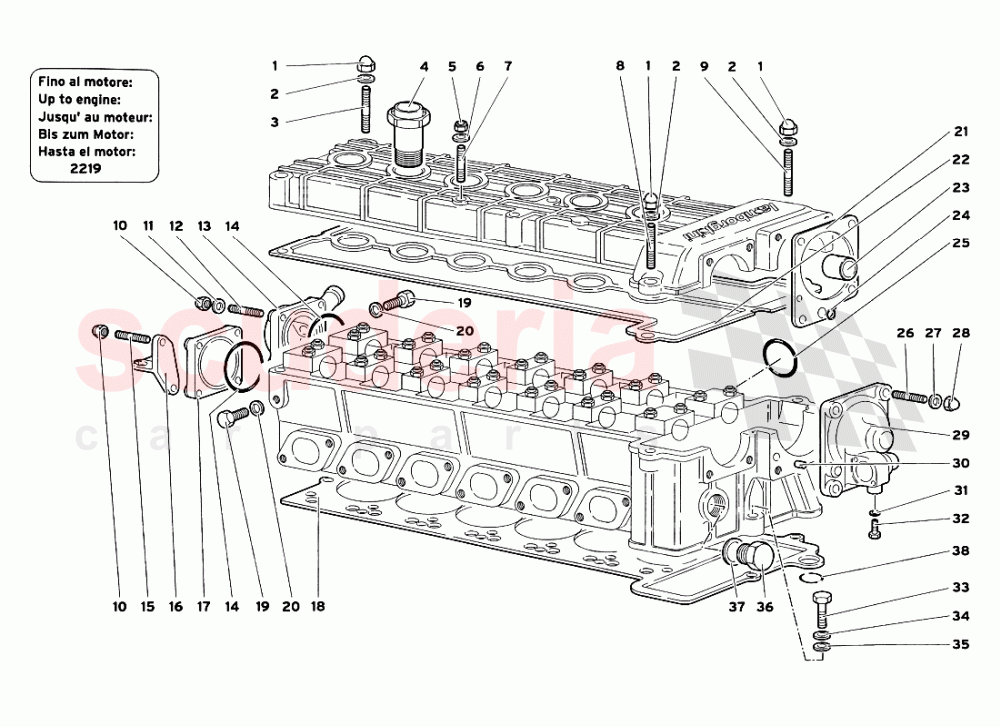

Lamborghini Diablo SV (1999) - Accessories for Right Cylinder Head 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.86	3
002	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	3
003	8300649	STUD BOLT	8300649 STUD BOLT PRIGIONIERO	$8.86 MSRP: ~~9.85~~ (10.1% off)	1
004	1134281	UNION	1134281 UNION BOCCHETTONE	$190.43 MSRP: ~~206.50~~ (7.8% off)	6
005	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.08	1
006	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	1
007	8300613	STUD BOLT	8300613 STUD BOLT PRIGIONIERO	$4.63 MSRP: ~~5.10~~ (9.2% off)	1
008	8300651	STUD BOLT	8300651 STUD BOLT PRIGIONIERO	$11.08 MSRP: ~~12.30~~ (9.9% off)	1
009	8300637	STUD BOLT	8300637 STUD BOLT PRIGIONIERO	$13.39 MSRP: ~~15.00~~ (10.7% off)	1
010	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.86	8
011	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.87	6
012	8300601	STUD BOLT	8300601 STUD BOLT PRIGIONIERO	$8.04	6
013	1133383	VENT PIPE	1133383 VENT PIPE COPERCHIO - SFIATO	$162.06 MSRP: ~~176.00~~ (7.9% off)	1
014	8606205	O-Ring	8606205 O-Ring ANELLO TENUTA	$4.01	3
015	8300615	STUD	8300615 STUD PRIGIONIERO	$18.88 MSRP: ~~21.05~~ (10.3% off)	2
016	1131708	BRACKET	1131708 BRACKET FERMAGUAINA	$137.19 MSRP: ~~153.50~~ (10.6% off)	1
017	1114502	COVER	1114502 COVER COPERCHIO	$176.55 MSRP: ~~191.00~~ (7.6% off)	2
018	11000987	GASKET	11000987 GASKET GUARNIZIONE	$366.04	1
019	8100839	SCREW	8100839 SCREW VITE	$0.43 MSRP: ~~7.31~~ (94.1% off)	2
020	8400818	WASHER	8400818 WASHER RONDELLA	-	2	Enquire
021	11001010	GASKET	11001010 GASKET GUARNIZIONE	$41.74 MSRP: ~~46.75~~ (10.7% off)	1
022	11001011	GASKET	11001011 GASKET GUARNIZIONE	$66.24	1
023	11000038	BUSHING	11000038 BUSHING BOCCOLA	$52.14	1
024	8600905	SEAL RING	8600905 SEAL RING ANELLO TENUTA	$8.86 MSRP: ~~9.85~~ (10.1% off)	1
025	8604703	SEAL RING	8604703 SEAL RING ANELLO TENUTA	$7.62 MSRP: ~~8.45~~ (9.8% off)	6
026	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO	$20.81	4
027	WHT000771	WASHER IN STOCK	WHT000771 WASHER RONDELLA IN STOCK	$1.11	4
028	8200816	NUT	8200816 NUT DADO	$4.80	4
029	11001006	COVER	11001006 COVER COPERCHIO	$402.87 MSRP: ~~436.00~~ (7.6% off)	1
030	8850616	DOWEL	8850616 DOWEL GRANO	-	2	Enquire
031	WHT003041	WASHER IN STOCK	WHT003041 WASHER RONDELLA IN STOCK	$0.83 MSRP: ~~7.31~~ (88.6% off)	1
032	8100631	SCREW	8100631 SCREW VITE	$0.11 MSRP: ~~7.37~~ (98.5% off)	1
033	8100807	SCREW	8100807 SCREW VITE	$0.78 MSRP: ~~7.27~~ (89.3% off)	1
034	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.44	1
035	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.44 MSRP: ~~7.15~~ (79.9% off)	1
036	7M103035	PLUG	7M103035 PLUG	$59.32	1
037	8402609	WASHER	8402609 WASHER RONDELLA	-	1	Enquire
038	8601203	SEAL	8601203 SEAL ANELLO TENUTA	$0.82	1
