Left Cylinder Head 2 of Lamborghini Lamborghini Diablo SV (1999)

View All

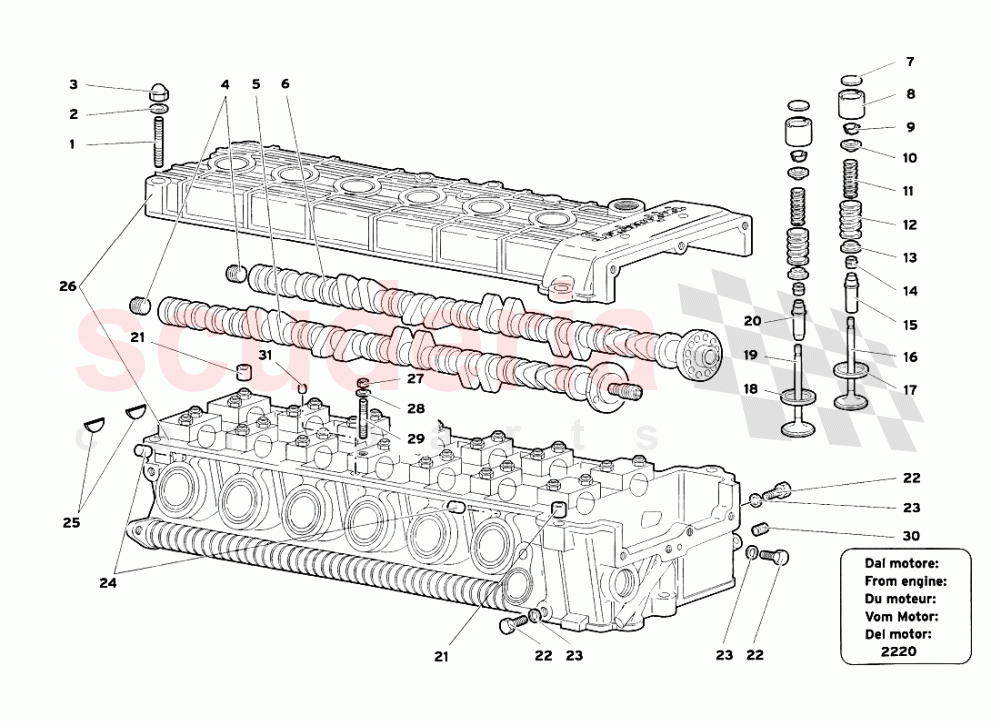

Lamborghini Diablo SV (1999) - Left Cylinder Head 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8300649	STUD BOLT	8300649 STUD BOLT PRIGIONIERO	$8.86 MSRP: ~~9.85~~ (10.1% off)	1
002	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.87	1
003	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.86	1
004	8931409	PLUG	8931409 PLUG TAPPO	$11.53 MSRP: ~~12.85~~ (10.3% off)	2
005	12001311	CAMSHAFT	12001311 CAMSHAFT ASSE A CAMME ASP. TESTA SX	-	1	Enquire
006	1232711	CAMSHAFT	1232711 CAMSHAFT ASSE A CAMME SCARICO TESTA SX	$10,309.23	1
007	7M109320N	3.90 MM ADJUSTMENT SHIM	7M109320N 3.90 MM ADJUSTMENT SHIM SPESSORE Dl REGISTRO 3.90 MM	$52.56	24
007	1220900	SHIM	1220900 SHIM SPESSORE Dl REGISTRO 4.40 MM	-	24	Enquire
007	1220899	SHIM	1220899 SHIM SPESSORE Dl REGISTRO 4.35 MM	-	24	Enquire
007	7M109320L	3.80 MM ADJUSTMENT SHIM	7M109320L 3.80 MM ADJUSTMENT SHIM SPESSORE Dl REGISTRO 3.80 MM	$52.56	24
007	7M109320M	3.85 MM ADJUSTMENT SHIM	7M109320M 3.85 MM ADJUSTMENT SHIM SPESSORE Dl REGISTRO 3.85 MM	$10.59	24
007	1220877	SHIM	1220877 SHIM SPESSORE Dl REGISTRO 3.25 MM	-	24	Enquire
007	1220898	SHIM	1220898 SHIM SPESSORE Dl REGISTRO 4.30 MM	-	24	Enquire
007	1220896	SHIM	1220896 SHIM SPESSORE Dl REGISTRO 4.20 MM	-	24	Enquire
007	1220897	SHIM	1220897 SHIM SPESSORE Dl REGISTRO 4.25 MM	-	24	Enquire
007	1220892	Valve shims	1220892 Valve shims 4.00 MM	-	24	Enquire
007	7M109320S	4.10 MM ADJUSTMENT SHIM	7M109320S 4.10 MM ADJUSTMENT SHIM SPESSORE Dl REGISTRO 4.10 MM	$52.56	24
007	1220891	SHIM	1220891 SHIM SPESSORE Dl REGISTRO 3.95 MM	-	24	Enquire
007	1220886	SHIM	1220886 SHIM SPESSORE Dl REGISTRO 3.70 MM	-	24	Enquire
007	1220895	SHIM	1220895 SHIM SPESSORE Dl REGISTRO 4.15 MM	-	24	Enquire
007	1220879	SHIM	1220879 SHIM SPESSORE Dl REGISTRO 3.35 MM	-	24	Enquire
007	1220902	SHIM	1220902 SHIM SPESSORE Dl REGISTRO 4.50 MM	-	24	Enquire
007	1220878	SHIM	1220878 SHIM SPESSORE Dl REGISTRO 3.30 MM	-	24	Enquire
007	1220893	SHIM	1220893 SHIM SPESSORE Dl REGISTRO 4.05 MM	-	24	Enquire
007	1220880	SHIM	1220880 SHIM SPESSORE Dl REGISTRO 3.40 MM	-	24	Enquire
007	1220905	SHIM	1220905 SHIM SPESSORE Dl REGISTRO 4.65 MM	-	24	Enquire
007	1220903	SHIM	1220903 SHIM SPESSORE Dl REGISTRO 4.55 MM	-	24	Enquire
007	1220904	SHIM	1220904 SHIM SPESSORE Dl REGISTRO 4.60 MM	-	24	Enquire
007	1220906	SHIM	1220906 SHIM SPESSORE Dl REGISTRO 4.70 MM	-	24	Enquire
007	1220883	SHIM	1220883 SHIM SPESSORE Dl REGISTRO 3.55 MM	-	24	Enquire
007	1220882	SHIM	1220882 SHIM SPESSORE Dl REGISTRO 3.50 MM	-	24	Enquire
007	1220901	SHIM	1220901 SHIM SPESSORE Dl REGISTRO 4.45 MM	-	24	Enquire
007	1220881	SHIM	1220881 SHIM SPESSORE Dl REGISTRO 3.45 MM	-	24	Enquire
007	1220887	SHIM	1220887 SHIM SPESSORE Dl REGISTRO 3.75 MM	-	24	Enquire
007	1220884	SHIM	1220884 SHIM SPESSORE Dl REGISTRO 3.60 MM	-	24	Enquire
007	1220885	SHIM	1220885 SHIM SPESSORE Dl REGISTRO 3.65 MM	-	24	Enquire
008	7M109309	VALVE CONTROL TAPPET	7M109309 VALVE CONTROL TAPPET PUNTERIA	$34.62	24
009	1235955	TAPPET LOCK CONE	1235955 TAPPET LOCK CONE SEMICONO PUNTERIE	-	48	Enquire
010	7M109641	TAPPET UPPER PLATE	7M109641 TAPPET UPPER PLATE	$17.99	24
011	7M109633A	INNER SPRING	7M109633A INNER SPRING MOLLA INTERNA	$5.85	24
012	7M109623A	OUTER SPRING	7M109623A OUTER SPRING MOLLA ESTERNA	$18.06	24
013	1220993	TAPPET PLATE	1220993 TAPPET PLATE PIATTELLO PUNTERIA INFERIORE	-	24	Enquire
014	7M109675	SEAL RING	7M109675 SEAL RING	$14.88	48
015	1238320	EXHAUST VALVE GUIDE	1238320 EXHAUST VALVE GUIDE GUIDA VALVOLA SCARICO	$81.05	12
016	7M109611	EXHAUST VALVE	7M109611 EXHAUST VALVE VALVOLA SCARICO	$98.19	12
017	1234791	VALVE SEAT	1234791 VALVE SEAT SEDE VALVOLA SCARICO	-	12	Enquire
018	1234790	VALVE SEAT	1234790 VALVE SEAT SEDE VALVOLA ASPIRAZIONE	-	12	Enquire
019	7M109601	INTAKE VALVE	7M109601 INTAKE VALVE VALVOLA ASPIRAZIONE	$68.47	12
020	1238321	INTAKE VALVE GUIDE	1238321 INTAKE VALVE GUIDE GUIDA VALVOLA ASPIRAZIONE	$66.02	12
021	8800604	BUSHING	8800604 BUSHING BOCCOLA	-	2	Enquire
022	8100631	SCREW	8100631 SCREW VITE	$0.11 MSRP: ~~7.37~~ (98.5% off)	3
023	WHT003041	WASHER IN STOCK	WHT003041 WASHER RONDELLA IN STOCK	$0.83 MSRP: ~~7.31~~ (88.6% off)	3
024	1122089	DOWEL	1122089 DOWEL GRAND	$15.68 MSRP: ~~17.60~~ (10.9% off)	2
025	11003411	COVER	11003411 COVER COPERCHIO	-	2	Enquire
026	460132007	CYLINDER HEAD	460132007 CYLINDER HEAD TESTA CILINDRI SX	$18,813.78	1
027	N01100637	NUT M6 IN STOCK	N01100637 NUT M6 DADO IN STOCK	$0.30 MSRP: ~~7.29~~ (95.9% off)	28
028	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.87	28
029	8300666	STUD BOLT	8300666 STUD BOLT PRIGIONIERO	$39.47 MSRP: ~~44.20~~ (10.7% off)	28
030	8840802	HELI-COIL	8840802 HELI-COIL	$3.02 MSRP: ~~3.25~~ (7.1% off)	12
031	8850302	PIN - SPINA	8850302 PIN - SPINA GRAND	-	2	Enquire
