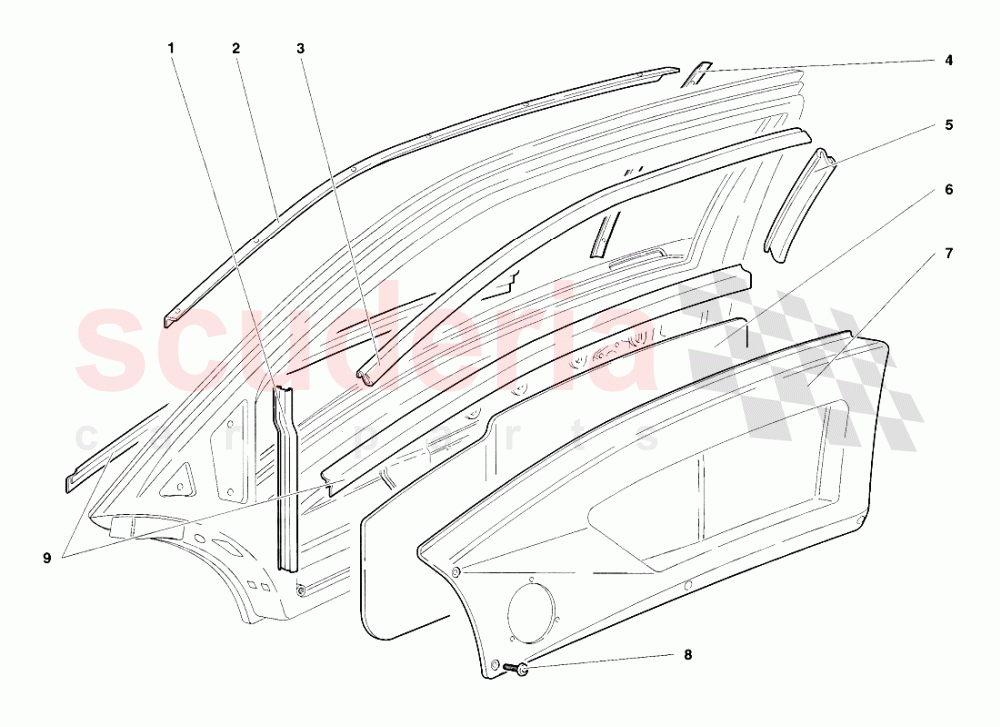

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9421716	GASKET	9421716 GASKET GUARNIZIONE	$22.30	2
002	9421402	RIGHT CHANNEL	9421402 RIGHT CHANNEL PROFILATO DX	$515.75	1
002	9421403	LEFT CHANNEL	9421403 LEFT CHANNEL PROFILATO SX	$515.75	1
003	9421714	GASKET	9421714 GASKET GUARNIZIONE	$445.45	2
004	9421404	RIGHT CHANNEL	9421404 RIGHT CHANNEL PROFILATO DX	$418.91	1
004	9421405	LEFT CHANNEL	9421405 LEFT CHANNEL PROFILATO SX	$201.36	1
005	9421715	GASKET	9421715 GASKET GUARNIZIONE	$181.59	2
006	9421535	SHIELD	9421535 SHIELD PROTEZIONE	$41.46	2
007	9421557	RIGHT PANEL	9421557 RIGHT PANEL PANNELLO DX	-	1	Enquire
007	9421558	LEFT PANEL	9421558 LEFT PANEL PANNELLO SX	-	1	Enquire
008	8740685	SCREW IN STOCK	8740685 SCREW VITE IN STOCK	$19.98	8
009	9421700	GASKET	9421700 GASKET GUARNIZIONE	$1,066.60	4
