Doors 1 of Lamborghini Lamborghini Diablo SV (1998)

View All

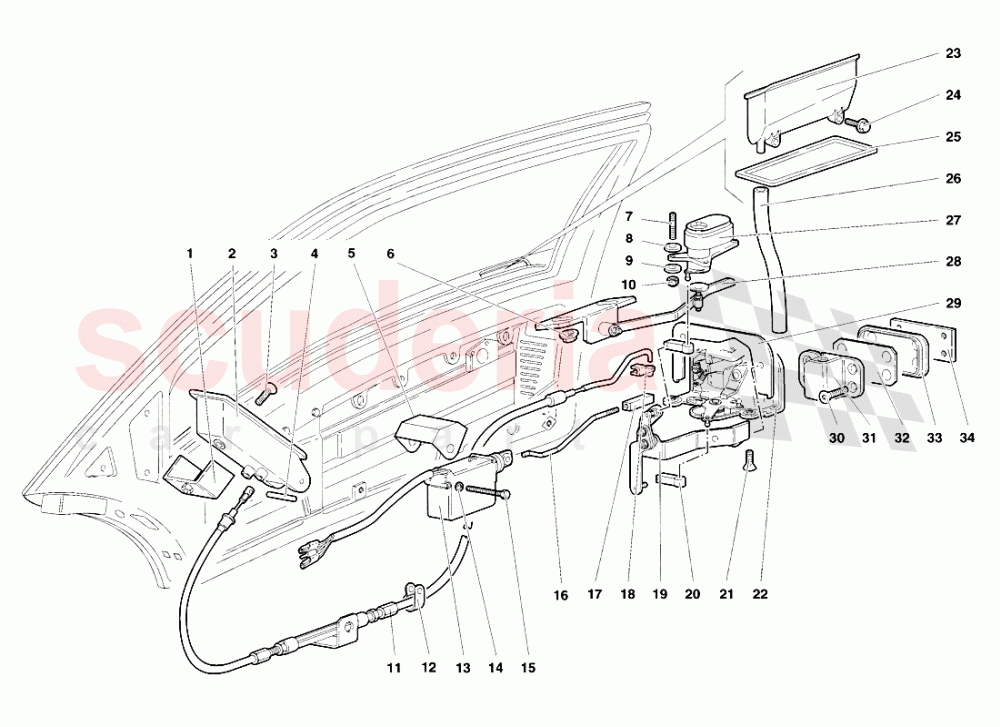

Lamborghini Diablo SV (1998) - Doors 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9421274	BRACKET	9421274 BRACKET CAVALLOTTO	$66.58	2
002	410823537	DOOR OPENING INTERIOR HANDLE ASSEMBLY IN STOCK	410823537 DOOR OPENING INTERIOR HANDLE ASSEMBLY IN STOCK	$1,227.76	2
003	8700539	SCREW	8700539 SCREW VITE	-	2	Enquire
004	8850304	PIN - SPINA	8850304 PIN - SPINA PERNO	$1.86 MSRP: ~~2.00~~ (7% off)	2
005	9921112	RIGHT SHIELD	9921112 RIGHT SHIELD PROTEZIONE DX	$79.70 MSRP: ~~86.40~~ (7.8% off)	1
005	9921113	LEFT SHIELD	9921113 LEFT SHIELD PROTEZIONE SX	$14.57 MSRP: ~~15.80~~ (7.8% off)	1
006	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT DADO IN STOCK	$0.19	4
007	9921221	STUD	9921221 STUD PRIGIONIERO(L=18MM)	$4.00 MSRP: ~~4.40~~ (9.1% off)	2
007	8300403	STUD	8300403 STUD PRIGIONIERO (L=21 MM)	$24.58 MSRP: ~~27.55~~ (10.8% off)	4
008	8400401	WASHER	8400401 WASHER RONDELLA (DISTANZIALE)	$0.12	1
009	8400401	WASHER	8400401 WASHER RONDELLA	$0.12	6
010	WHT002959	CLAMPING NUT IN STOCK	WHT002959 CLAMPING NUT DADO IN STOCK	$0.78 MSRP: ~~7.26~~ (89.3% off)	6
011	9421051	LEFT CABLE	9421051 LEFT CABLE CAVO SX	$126.05 MSRP: ~~136.00~~ (7.3% off)	1
011	9421052	RIGHT CABLE	9421052 RIGHT CABLE CAVO DX	$272.34 MSRP: ~~306.00~~ (11% off)	1
012	8830907	STRAP IN STOCK	8830907 STRAP FASCETTA IN STOCK	$0.46 MSRP: ~~7.30~~ (93.7% off)	6
013	R1320008	RHS door actuator	R1320008 RHS door actuator	$437.14	1
013	R1320007	LHS door actuator	R1320007 LHS door actuator	$921.49	1
014	8400401	WASHER	8400401 WASHER RONDELLA	$0.12	4
015	8100404	SCREW	8100404 SCREW VITE	$0.60	4
016	9921211	LEFT TIE ROD	9921211 LEFT TIE ROD TIRANTE SX	$20.54 MSRP: ~~22.25~~ (7.7% off)	1
016	9921204	RIGHT TIE ROD	9921204 RIGHT TIE ROD TIRANTE DX	$20.54 MSRP: ~~22.25~~ (7.7% off)	1
017	7021016	PAWL	7021016 PAWL NOTTOLINO	-	2	Enquire
018	9421251	CLIP	9421251 CLIP MOLLETTA Dl AGGANCIO	-	2	Enquire
019	9921225	RIGHT IDLE LEVER	9921225 RIGHT IDLE LEVER RINVIO A LEVA DX	$337.24	1
019	9921226	LEFT IDLE LEVER	9921226 LEFT IDLE LEVER RINVIOALEVASX	$227.25 MSRP: ~~246.50~~ (7.8% off)	1
020	9421214	COUPLING	9421214 COUPLING TESTINA	-	4	Enquire
021	8700610	SCREW IN STOCK	8700610 SCREW VITE IN STOCK	$0.62 MSRP: ~~7.29~~ (91.5% off)	8
022	410837016	RIGHT LOCK	410837016 RIGHT LOCK SERRATURA SX	$599.97	1
022	410837015	LEFT LOCK	410837015 LEFT LOCK SERRATURA DX	$599.97	1
023	9421200	RIGHT HANDLE	9421200 RIGHT HANDLE MANIGLIA DX	$320.44	1
023	9421201	LEFT HANDLE	9421201 LEFT HANDLE MANIGLIA SX	$335.96	1
024	N10718801	HEX COLLARED BOLT IN STOCK	N10718801 HEX COLLARED BOLT VITE IN STOCK	$1.69	4
025	9421713	LEFT GASKET	9421713 LEFT GASKET GUARNIZIONE SX	$12.33	1
025	9421712	RIGHT GASKET	9421712 RIGHT GASKET GUARNIZIONE DX	$5.10 MSRP: ~~5.55~~ (8.1% off)	1
026	9421245	PIPE	9421245 PIPE TUBO	$16.67 MSRP: ~~18.05~~ (7.6% off)	2
027	9421267	RIGHT BUTTON	9421267 RIGHT BUTTON PULSANTE DX	-	1	Enquire
027	9421268	LEFT BUTTON	9421268 LEFT BUTTON PULSANTE SX	-	1	Enquire
028	9921223	RIGHT IDLE LEVER	9921223 RIGHT IDLE LEVER RINVIO A LEVA DX	$227.25 MSRP: ~~246.50~~ (7.8% off)	1
028	9921224	LEFT IDLE LEVER	9921224 LEFT IDLE LEVER RINVIOALEVASX	$227.25 MSRP: ~~246.50~~ (7.8% off)	1
029	9421272	LEFT GASKET	9421272 LEFT GASKET GUARNIZIONE SX	-	1	Enquire
029	9421273	RIGHT GASKET	9421273 RIGHT GASKET GUARNIZIONE DX	-	1	Enquire
030	8700610	SCREW IN STOCK	8700610 SCREW VITE IN STOCK	$0.62 MSRP: ~~7.29~~ (91.5% off)	8
031	410831408A	Hinge Half Right hand	410831408A Hinge Half Right hand RISCONTRO DX	$811.65	1
031	410831407A	Hinge Half Left Hand IN STOCK	410831407A Hinge Half Left Hand RISCONTRO SX IN STOCK	$322.43 MSRP: ~~407.00~~ (20.8% off)	1
032	410837964	SPACER	410837964 SPACER DISTANZIALE	$14.86	4
032	410837963	SPACER IN STOCK	410837963 SPACER DISTANZIALE IN STOCK	$15.22	4
033	410837899	ORNAMENT IN STOCK	410837899 ORNAMENT IN STOCK	$14.96	2
034	7021253	PLATE	7021253 PLATE PIASTRA	$666.09	2
