Rear Wheel And Hub Carrier

Lamborghini Diablo SV (1998)

Find Your Part

Lamborghini Diablo SV (1998) - Rear Wheel and Hub Carrier

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

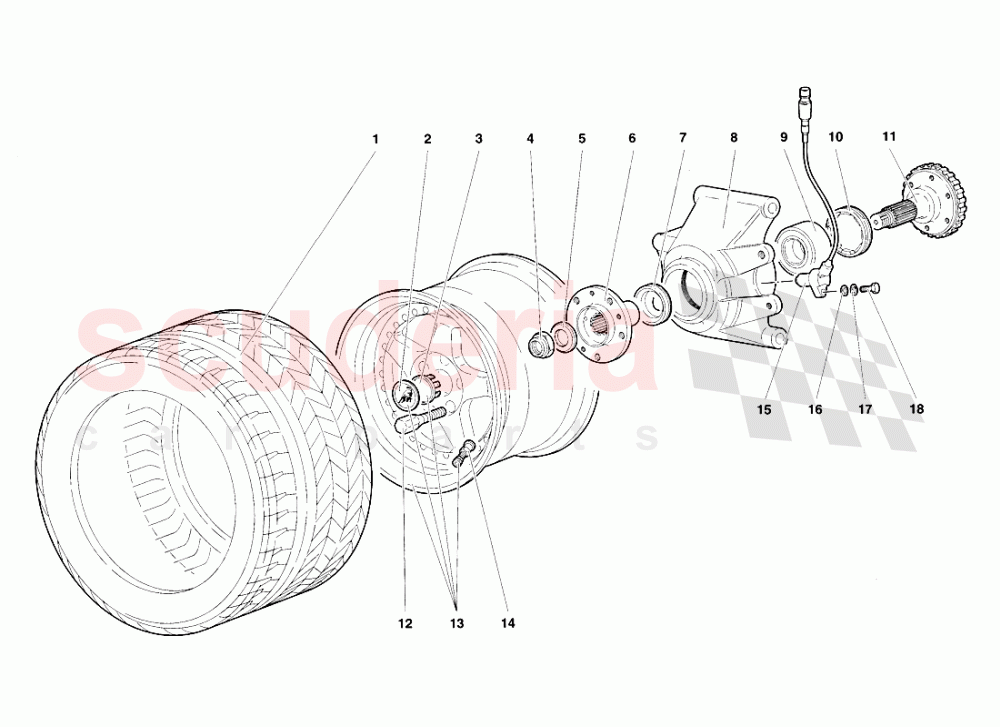

Rear Wheel and Hub Carrier of Lamborghini Lamborghini Diablo SV (1998) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 5334365
REAR TYRE
PNEUMATICO POST. 335/30 ZR 18 		- 2 Enquire
002 5236291
ORNAMENT
FREGIO -USE: 0052006285 		$32.48 2
003 5236290
PLUG - PLUG - USE: 0052006285
- USE: 0052006285 		$67.71 2
003 52006285
WHEEL BADGE - COMPLETE WHEEL BADGE
COMPLETE 		$102.78 2
004 5231418
NUT
DADO 		$938.53 2
005 8403103
WASHER
RONDELLA 		$137.17 2
006 52001022
HUB
MOZZO 		$401.64 (7.9% off) 2
007 5238073
SPACER
DISTANZIALE 		$379.66 (7.4% off) 2
008 52000979
LEFT HUB HOUSING
PORTAMOZZO SX 		$1,302.17 (7.3% off) 1
008 52000980
RIGHT HUB HOUSING
PORTAMOZZO DX 		$13,744.94 1
009 8514501
BEARING
CUSCINETTO 		$107.88 (10.8% off) 2
010 5233369
PLUG
GHIERA 		$223.98 (10.8% off) 2
011 52002593
FLANGE
FLANGIA 		$2,531.96 2
012 51001075LB
LOCKING WHEEL BOLT SET
(includes 1 bolt for each wheel and removal tool) 		- 1 Enquire
012 51001075
STUD
COLONNETTA 		$30.74 (10.8% off) 10
013 52001074
REAR RIM
CERCHIO RUOTA POSTERIORE 		$2,291.78 2
014 5330906
VALVE
VALVOLA 		$47.75 2
015 51001139
TYRE REVOLUT. SENS.
SENSORE GIRI RUOTA LAVOR. 		$235.55 2
016 N01152427
WASHER
RONDELLA
IN STOCK 		$0.28 2
017 WHT002963
WASHER
RONDELLA
IN STOCK 		$0.12 (98.4% off) 2
018 8100603
SCREW
VITE 		$1.29 (82.4% off) 2
