Body Elements - Left Flank of Lamborghini Lamborghini Diablo SV (1998)

View All

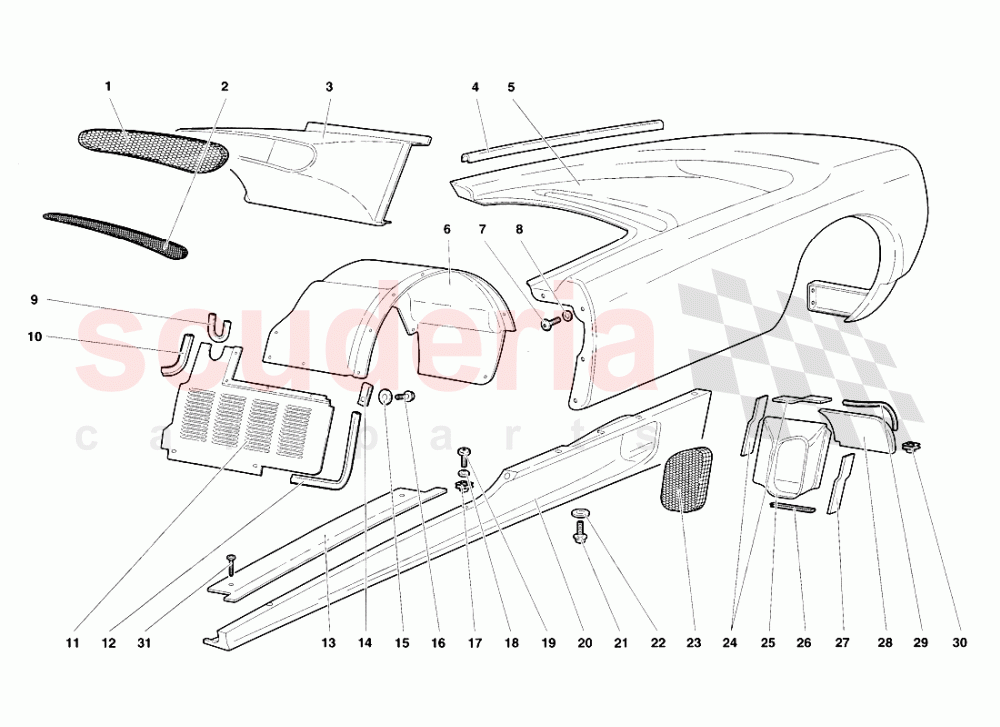

Lamborghini Diablo SV (1998) - Body Elements - Left Flank

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9430125	NET	9430125 NET (L.H.S.) RETE	$377.52	1
002	9430127	NET	9430127 NET (L.H.S.) RETE	$232.04	1
003	9453147	CONVEYOR	9453147 CONVEYOR (L.H.S.) CONVOGLIATORE	$798.02 MSRP: ~~869.00~~ (8.2% off)	1
004	9490113	GASKET	9490113 GASKET (L.H.S.) GUARNIZIONE	$31.58 MSRP: ~~32.55~~ (3% off)	1
005	9410003	REAR MUDGUARD FEN.	9410003 REAR MUDGUARD FEN. (L.H.S.) PARAFANGO POST.	-	1	Enquire
006	9911501	REAR WHEELBOX	9911501 REAR WHEELBOX (L.H.S.) PASSARUOTA POST.	$933.88	1
007	8740685	SCREW IN STOCK	8740685 SCREW (L.H.S.) VITE IN STOCK	$19.88	11
008	8400624	WASHER	8400624 WASHER (L.H.S.) RONDELLA	$4.44	11
009	9411513	GASKET	9411513 GASKET (L.H.S.) GUARNIZIONE	$169.96	1
010	9411512	GASKET	9411512 GASKET (L.H.S.) GUARNIZIONE	$63.16	1
011	9411526	PROTECTION	9411526 PROTECTION (L.H.S.) PARASASSI	$537.37	1
012	9411511	GASKET	9411511 GASKET (L.H.S.) GUARNIZIONE	$101.92	1
013	9458607	DOORSILL MOULDING	9458607 DOORSILL MOULDING (L.H.S.) BATTICALCAGNO	$184.26	1
014	WHT000916A	CLIP	WHT000916A CLIP (L.H.S.) MOLLETTA	$14.42	17
015	N91109201	WASHER IN STOCK	N91109201 WASHER (L.H.S.) RONDELLA IN STOCK	$1.61 MSRP: ~~5.85~~ (72.5% off)	17
016	8700449	SCREW IN STOCK	8700449 SCREW (L.H.S.) VITE IN STOCK	$2.77 MSRP: ~~7.37~~ (62.4% off)	17
017	N90327506	SPEED NUT IN STOCK	N90327506 SPEED NUT (L.H.S.) MOLLETTA IN STOCK	$1.23	6
018	8400624	WASHER	8400624 WASHER (L.H.S.) RONDELLA	$4.44	3
019	8740685	SCREW IN STOCK	8740685 SCREW (L.H.S.) VITE IN STOCK	$19.88	3
020	9410305	SIDE PANEL	9410305 SIDE PANEL (L.H.S.) BRANCARDO SX	$4,203.06 MSRP: ~~4,735.00~~ (11.2% off)	1
021	N10718801	HEX COLLARED BOLT IN STOCK	N10718801 HEX COLLARED BOLT (L.H.S.) VITE IN STOCK	$1.68	8
022	WHT002961	WASHER IN STOCK	WHT002961 WASHER (L.H.S.) RONDELLA IN STOCK	$0.39	3
023	9430170	NET	9430170 NET (L.H.S.) RETE	$79.70	1
024	9453125	GASKET	9453125 GASKET (L.H.S.) GUARNIZIONE	$4.95 MSRP: ~~5.45~~ (9.2% off)	2
025	9453155	CONVEYOR	9453155 CONVEYOR (L.H.S.) CONVOGLIATORE	-	1	Enquire
026	9411512	GASKET	9411512 GASKET (L.H.S.) GUARNIZIONE	$63.16	1
027	9453126	GASKET	9453126 GASKET (L.H.S.) GUARNIZIONE	$3.74 MSRP: ~~4.15~~ (9.9% off)	1
028	9453142	CONVEYOR	9453142 CONVEYOR (L.H.S.) CONVOGLIATORE	$100.76 MSRP: ~~113.50~~ (11.2% off)	1
029	9490200	GASKET IN STOCK	9490200 GASKET (L.H.S.) GUARNIZIONE IN STOCK	$126.67	1
030	N90327506	SPEED NUT IN STOCK	N90327506 SPEED NUT (L.H.S.) MOLLETTA IN STOCK	$1.23	2
031	8700334	SCREW	8700334 SCREW (L.H.S.) VITE	$0.65 MSRP: ~~7.25~~ (91% off)	2
