Lamborghini Diablo SV (1998) - Lights

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

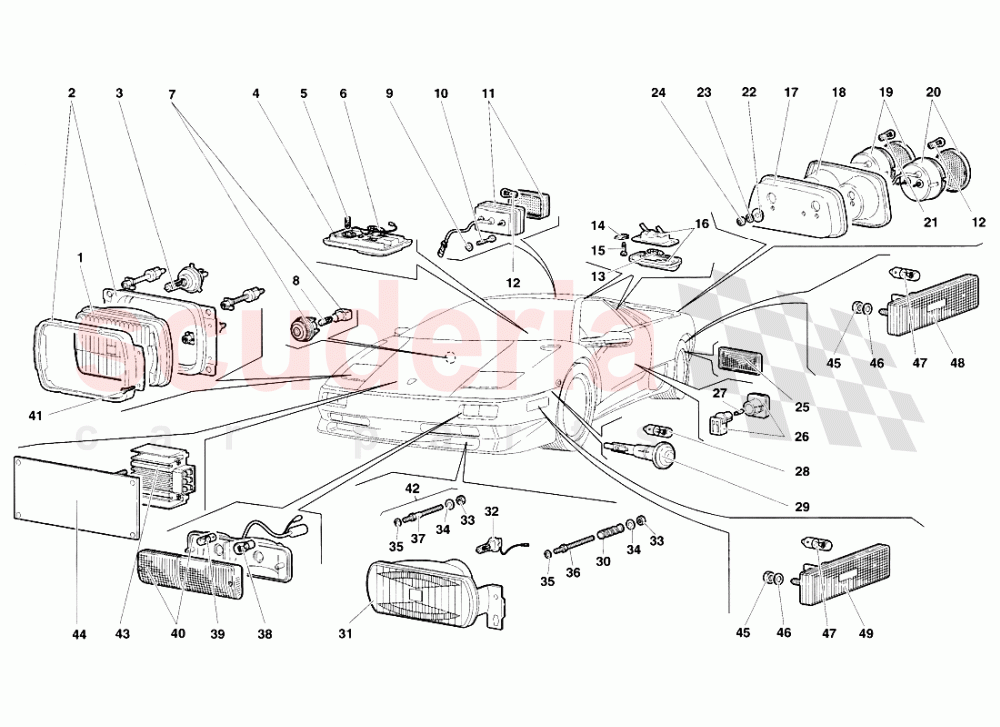

Lights of Lamborghini Lamborghini Diablo SV (1998) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 6331203
HEADLAMP
(Valid for USA - November 1998) PROIETTORE
IN STOCK 		$205.43 2
001 6331753
HEADLAMP
PROIETTORE 		$193.18 2
001 6330898
HEADLAMP
(Valid for JAPAN - November 1998) PROIETTORE 		- 2 Enquire
001 6331203
HEADLAMP
(Valid for CANADA - November 1998) PROIETTORE
IN STOCK 		$205.43 2
001 6332365
HEADLAMP
(Valid for GB - November 1998) PROIETTORE 		$323.14 2
002 6331631
FRAME
CORNICE 		$91.86 2
003 6329694
BULB
LAMPADA 		$50.90 2
004 6337294
CEILING LAMP
PLAFONIERA 		$66.47 1
005 6329698
BULB
LAMPADA 		$7.21 (8.2% off) 1
006 6338122
BULB
LAMPADA 		$3.19 1
007 6337066
LAMP
PLAFONIERA 		$15.81 (22.5% off) 1
008 N0177522
LAMP 12V/3W
LAMPADA
IN STOCK 		$1.93 (72.8% off) 1
009 WHT001187
WASHER
RONDELLA
IN STOCK 		$0.76 (89.5% off) 4
010 8700502
SCREW
VITE 		$0.07 4
011 63001281
REVERSE LAMP
FANALE RETROMARCIA 		$81.05 1
011 63001282
Rear Fog Light
RETRONEBBIA
IN STOCK 		$78.82 (7.8% off) 1
012 6617094
LAMP BA 15S 21W
LAMPADA 		$7.91 (2.3% off) 4
013 6617095
LAMP SV8,5-8 5W
LAMPADA 		$8.89 (1.2% off) 2
014 WHT003424
CLIP
MOLLETTA
IN STOCK 		$0.83 (88.6% off) 4
015 8700445
SCREW
VITE 		$0.64 (91.3% off) 4
016 6328344
LICENCE PLATE LAMP
FANALE TARGA 		$42.30 (7.6% off) 2
016 6331461
LICENCE PLATE LAMP
(Valid for USA - November 1998) FANALE TARGA 		$66.03 2
016 6331461
LICENCE PLATE LAMP
(Valid for CANADA - November 1998) FANALE TARGA 		$66.03 2
017 9911300
RIGHT PANEL
PANNELLO DX 		$935.95 (7.8% off) 1
017 9911301
LEFT PANEL
PANNELLO SX 		$935.95 (7.8% off) 1
018 9444006
LEFT FRAME
CORNICE SX 		$221.58 1
018 9444005
RIGHT FRAME
CORNICE DX 		$258.53 1
019 6329828
TAIL LAMP / BRAKE L.
FANALE POST. (POSIZIONE E STOP) 		$132.15 2
020 6329829
TURNING LIGHT
INDICATORE Dl DIREZIONE 		$71.56 (7.7% off) 2
021 6617091
LAMP 15D 32220 5/21W
LAMPADA 		$10.85 (1.8% off) 2
022 WHT002961
WASHER
RONDELLA
IN STOCK 		$0.39 8
023 WHT002963
WASHER
RONDELLA
IN STOCK 		$0.12 (98.4% off) 8
024 N01100632
NUT M6
DADO 		$4.20 (42.7% off) 8
025 6319022
REFLEX/REFLECTOR
CATADIOTTRO 		$155.53 2
026 410947413
DOOR LAMP
PLAFONIERA PORTA 		$81.25 (35.8% off) 2
027 6338123
BULB
LAMPADA 		$2.65 (10.2% off) 2
028 6329897
BULB
LAMPADA
IN STOCK 		$2.38 (6.7% off) 2
029 R1050004
KIT 2 DIRECTION INDICATORS
use (0R1050004 - sets of 2 pieces) 		$162.74 (10.6% off) 2
030 2403369
SPRING
MOLLA 		$30.71 4
031 6336822
LEFT FLASH LIGHT
FLASH DIURNO SX 		$401.15 1
031 6336821
RIGHT FLASH LIGHT
FLASH DIURNO DX 		$401.15 1
032 6329695
BULB
LAMPADA 		$15.45 (8% off) 4
033 N0211963
NUT
DADO
IN STOCK 		$0.72 6
034 WHT003040
WASHER 5.3X1.5X15 (For Becker Radio System)
RONDELLA 		$7.06 8
035 8100508
SCREW
RONDELLA 		$5.42 6
036 6337296
STUD
COLONNETTA 		$15.17 6
037 6337297
STUD
COLONNETTA 		$15.17 6
038 6617094
LAMP BA 15S 21W
LAMPADA 		$7.91 (2.3% off) 2
039 6329696
BULB
LAMPADA 		$2.65 (10.2% off) 2
040 6331779
LEFT FRONT LAMP
LUCE POSIZIONE - INDIC. DIREZ. SX 		$100.55 1
040 6331780
RIGHT FRONT LAMP
LUCE POSIZIONE - INDIC. DIREZ. DX 		$100.55 1
041 8700304
SCREW
VITE 		$0.06 (99.2% off) 8
042 6336823
SCREW KIT
KIT VITI REG. FARI PROFONDITA 		$98.84 1
043 1627472
DIM-DIP E.C.U.
(Valid for GB - November 1998) CENTRALINA DIM-DIP 		$125.21 (7.9% off) 1
044 6132696
SUPPORT - (Valid for R.H.D. version - April 1994) SUPPORTO
(Valid for GB - November 1998) O 		$31.11 (7.8% off) 1
045 N0211963
NUT
(Valid for USA - November 1998) DADO
IN STOCK 		$0.72 8
045 N0211963
NUT
(Valid for CANADA - November 1998) DADO
IN STOCK 		$0.72 8
046 8400501
WASHER
(Valid for USA - November 1998) RONDELLA
IN STOCK 		$0.18 (97.6% off) 8
046 8400501
WASHER
(Valid for CANADA - November 1998) RONDELLA
IN STOCK 		$0.18 (97.6% off) 8
047 N0177522
LAMP 12V/3W
(Valid for USA - November 1998) LAMPADA
IN STOCK 		$1.93 (72.8% off) 4
047 N0177522
LAMP 12V/3W
(Valid for CANADA - November 1998) LAMPADA
IN STOCK 		$1.93 (72.8% off) 4
048 6331782
SIDE MARKER IN RED
(Valid for USA - November 1998) SIDEMARKER POST. (ROSSO) 		$64.17 (7.7% off) 2
048 6331782
SIDE MARKER IN RED
(Valid for CANADA - November 1998) SIDEMARKER POST. (ROSSO) 		$64.17 (7.7% off) 2
049 6331781
F. SIDEMAR. (ORANGE)
(Valid for USA - November 1998) SIDEMARKER ANT. (ARANCIO) 		$58.29 (16.1% off) 2
049 6331781
F. SIDEMAR. (ORANGE)
(Valid for CANADA - November 1998) SIDEMARKER ANT. (ARANCIO) 		$58.29 (16.1% off) 2
