Engine Hood of Lamborghini Lamborghini Diablo SV (1995-1997)

View All

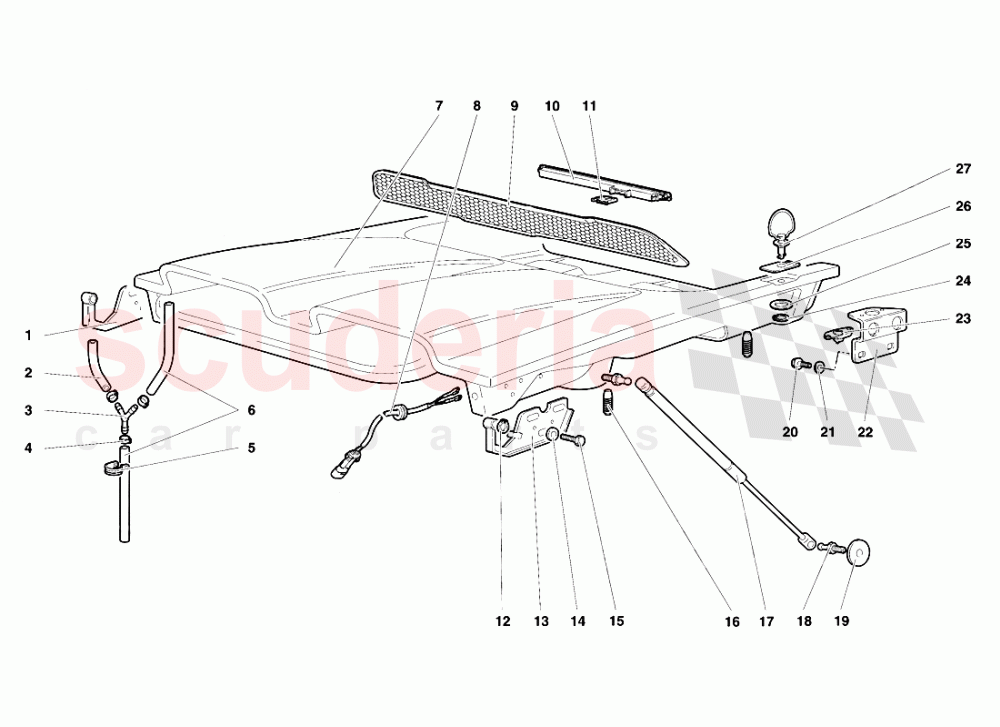

Lamborghini Diablo SV (1995-1997) - Engine Hood

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	9460322	RIGHT HINGE	9460322 RIGHT HINGE CERNIERA DX	$65.02 MSRP: ~~70.30~~ (7.5% off)	1
002	9490116	PIPE	9490116 PIPE TUBO	$13.13	2
003	6108392	CONNECTION	6108392 CONNECTION RACCORDO 3 VIE	$1.04	2
004	8831528	CLAMP	8831528 CLAMP FASCETTA	$8.78	6
005	8831515	CLAMP	8831515 CLAMP FASCETTA	$9.34	2
006	9490115	PIPE	9490115 PIPE TUBO	$12.50	4
007	9460015	ENGINE BONNET	9460015 ENGINE BONNET COFANO MOTORE	$5,831.10	1
008	6135191	ELECT CABLET-	6135191 ELECT CABLET- CABLAGGIO	$25.28	1
009	9430172	NET	9430172 NET RETE	$614.33	1
010	410945249A	High Mount Brake Light	410945249A High Mount Brake Light	$174.82	1
010	410945249A	High Mount Brake Light	410945249A High Mount Brake Light use part number: 0R1470010	$174.82	1
011	6132280	CONNECTOR	6132280 CONNECTOR CONNESSIONE	$9.55 MSRP: ~~10.60~~ (9.9% off)	1
012	8580801	RETAINER RING IN STOCK	8580801 RETAINER RING ANELLO RITEGNO IN STOCK	$0.06 MSRP: ~~7.39~~ (99.2% off)	2
013	9460323	LEFT HINGE	9460323 LEFT HINGE CERNIERA SX	$120.55	1
014	8400626	WASHER	8400626 WASHER RONDELLA	$35.88	6
015	8100656	SCREW	8100656 SCREW VITE	$4.06 MSRP: ~~4.55~~ (10.8% off)	6
016	9460214	RUBBER BUMPER IN STOCK	9460214 RUBBER BUMPER PARACOLPI GOMMA IN STOCK	$8.11	4
017	92004388	ENGINE COVER STRUT IN STOCK	92004388 ENGINE COVER STRUT MARTINETTO IN STOCK	$203.06	2
018	9459305	BALL PIN IN STOCK	9459305 BALL PIN PERNO GIUNTO SFERICO IN STOCK	$2.65	4
019	WHT001942	WASHER IN STOCK	WHT001942 WASHER RONDELLA IN STOCK	$3.08	2
020	8100601	SCREW	8100601 SCREW VITE	$0.25	4
021	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.84	4
022	9460219	SUPPORT - (Valid for cars with fast closing hood) SUPPORTO	9460219 SUPPORT - (Valid for cars with fast closing hood) SUPPORTO O	$105.41	2
023	9411615	CLIP	9411615 CLIP FERMAGLIO	$31.64 MSRP: ~~34.25~~ (7.6% off)	2
024	8581101	RETAINER RING	8581101 RETAINER RING ANELLO RITEGNO	$5.43 MSRP: ~~6.00~~ (9.5% off)	2
025	3230722	WASHER	3230722 WASHER RONDELLA	$1.04	2
027	9460018	LOCK	9460018 LOCK CHIUSURA RAPIDA	$41.55	2
