Doors 1

Lamborghini Diablo SV (1995-1997)

Find Your Part

Lamborghini Diablo SV (1995-1997) - Doors 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

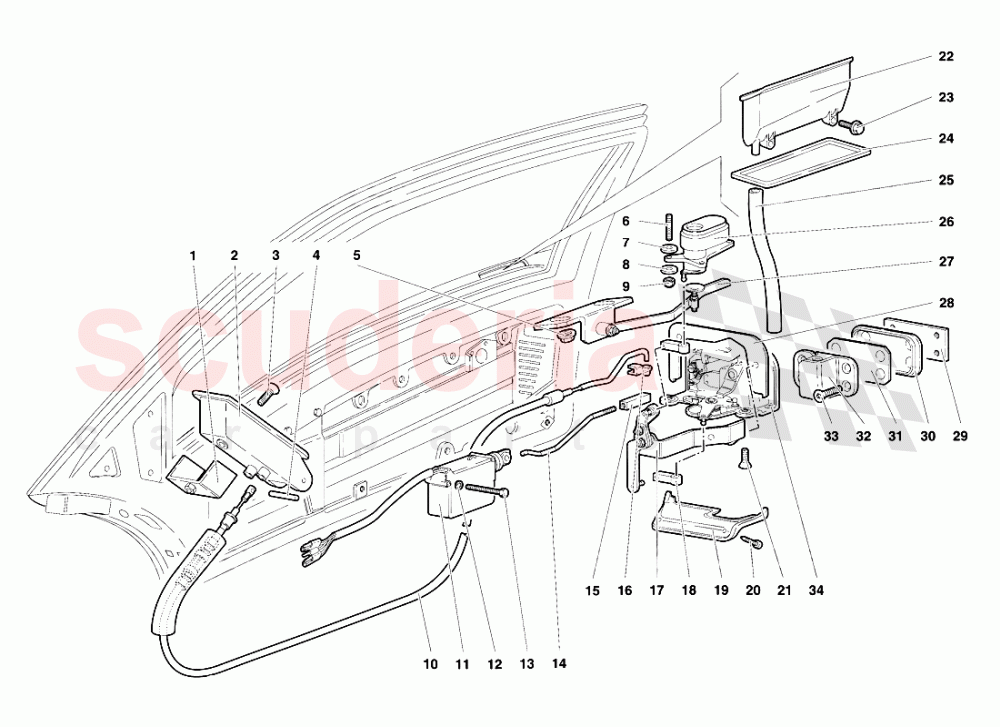

Doors 1 of Lamborghini Lamborghini Diablo SV (1995-1997) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 9421274
BRACKET
CAVALLOTTO 		$66.70 2
002 410823537
DOOR OPENING INTERIOR HANDLE ASSEMBLY
IN STOCK 		$1,229.82 2
003 8700539
SCREW
VITE 		- 2 Enquire
004 8850304
PIN - SPINA
PERNO 		$1.86 (7% off) 2
005 N01508213
HEXAGON COLLAR NUT
DADO
IN STOCK 		$0.19 4
006 8300403
STUD
PRIGIONIERO (L=21 MM) 		$24.62 (10.6% off) 4
006 9921221
STUD
PRIGIONIERO(L=18MM) 		$4.01 (8.9% off) 2
007 8400401
WASHER
RONDELLA (DISTANZIALE) 		$0.12 4
008 8400401
WASHER
RONDELLA 		$0.12 6
009 WHT002959
CLAMPING NUT
DADO
IN STOCK 		$0.78 (89.3% off) 6
010 9921011
LEFT CABLE
CAVO SX 		$90.28 1
010 9921010
RIGHT CABLE
CAVO DX 		$90.28 1
011 R1320007
LHS door actuator 		$923.04 1
011 R1320008
RHS door actuator 		$437.87 1
012 8400401
WASHER
RONDELLA 		$0.12 4
013 8100404
SCREW
VITE 		$0.60 4
014 9921211
LEFT TIE ROD
(From car VLA12719 with ''turned locks'') TIRANTE SX 		$20.57 (7.6% off) 1
014 9921204
RIGHT TIE ROD
(From car VLA12719 with ''turned locks'') TIRANTE DX 		$20.57 (7.6% off) 1
015 7021016
PAWL
NOTTOLINO 		- 2 Enquire
016 9921251
CLIP
MOLLETTA 		- 2 Enquire
017 9921225
RIGHT IDLE LEVER
(From car VLA12719 with ''turned locks'') RINVIO A LEVA DX 		$337.80 1
017 9921226
LEFT IDLE LEVER
(From car VLA12719 with ''turned locks'') RINVIO A LEVA SX 		$227.63 (7.7% off) 1
018 9421214
COUPLING
TESTINA 		- 4 Enquire
019 410837119
LEFT SHIELD
(From car VLA12719 with ''turned locks'') PROTEZIONE SX 		$54.90 1
019 410837120
RIGHT SHIELD
(From car VLA12719 with ''turned locks'') PROTEZIONE DX 		$54.90 1
020 8700332
SCREW
VITE
IN STOCK 		$0.37 4
021 WHT003068
COUNTERSUNK BOLT
VITE
IN STOCK 		$1.33 (81.5% off) 8
022 9421276
LEFT HANDLE
MANIGLIA SX 		$36.21 1
022 9421275
RIGHT HANDLE
MANIGLIA DX 		$36.21 1
023 N10718801
HEX COLLARED BOLT
VITE
IN STOCK 		$1.69 4
024 9421713
LEFT GASKET
GUARNIZIONE SX 		$12.35 1
024 9421712
RIGHT GASKET
GUARNIZIONE DX 		$5.10 (8.1% off) 1
025 9421245
PIPE
TUBO 		$16.70 (7.5% off) 2
026 9421268
LEFT BUTTON
PULSANTE SX 		- 1 Enquire
026 9421267
RIGHT BUTTON
PULSANTE DX 		- 1 Enquire
027 9921224
LEFT IDLE LEVER
(From car VLA12719 with ''turned locks'') RINVIO A LEVA SX 		$227.63 (7.7% off) 1
027 9921223
RIGHT IDLE LEVER
(From car VLA12719 with ''turned locks'') RINVIO A LEVA DX 		$227.63 (7.7% off) 1
028 9421273
RIGHT GASKET
(From car VLA12719 with ''turned locks'') GUARNIZIONE DX 		- 1 Enquire
028 9421272
LEFT GASKET
(From car VLA12719 with ''turned locks'') GUARNIZIONE SX 		- 1 Enquire
029 7021253
PLATE
PLATE 		$667.22 2
030 410837899
ORNAMENT
IN STOCK 		$14.98 2
031 410837964
SPACER
SPACER 		$14.88 1
031 410837963
SPACER
SPACER
IN STOCK 		$15.25 1
032 410831408A
Hinge Half Right hand
(From car VLA12719 with ''turned locks'') RIGHT LOCK STRIKER 		$813.02 1
032 410831407A
Hinge Half Left Hand
(From car VLA12719 with ''turned locks'') LEFT LOCK STRIKER
IN STOCK 		$322.98 (20.6% off) 1
033 8700610
SCREW
SCREW
IN STOCK 		$0.62 (91.5% off) 8
034 410837015
LEFT LOCK
(From car VLA12719 with ''turned locks'') RIGHT LOCK 		$600.98 1
034 410837016
RIGHT LOCK
(From car VLA12719 with ''turned locks'') LEFT LOCK 		$600.98 1
