Lights

Lamborghini Diablo SV (1995-1997)

Find Your Part

Lamborghini Diablo SV (1995-1997) - Lights

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

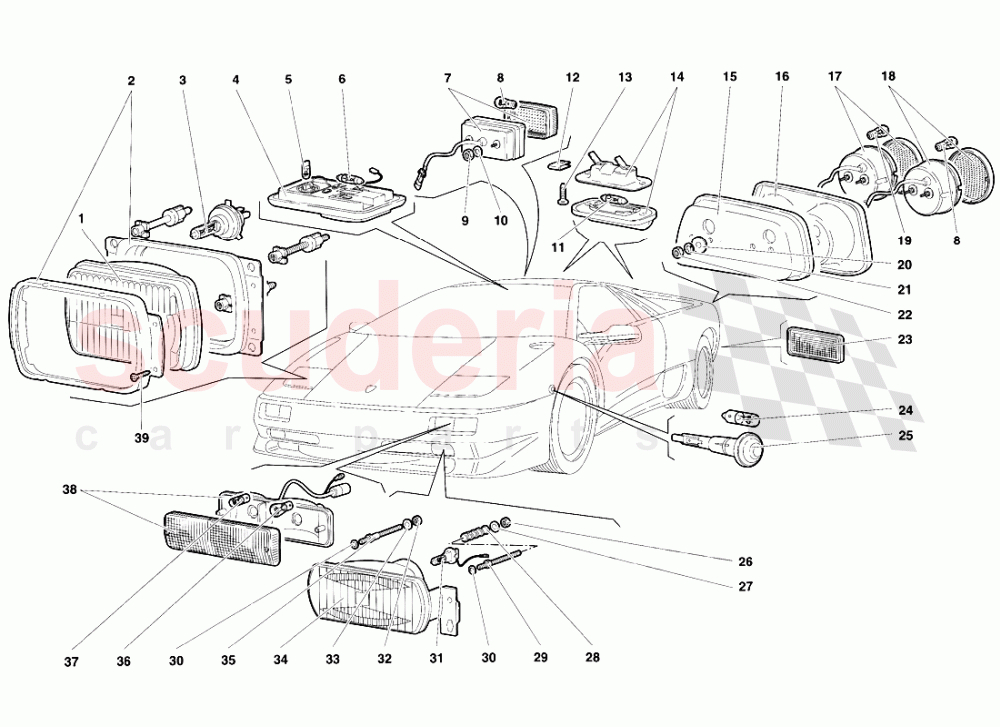

Lights of Lamborghini Lamborghini Diablo SV (1995-1997) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 6331753
HEADLAMP
PROIETTORE 		$193.58 2
002 6331631
FRAME
CORNICE 		$92.05 2
003 6329694
BULB
LAMPADA 		$51.01 2
004 6334454
CEILING LAMP
PLAFONIERA 		$2,212.70 1
005 N0177522
LAMP 12V/3W
LAMPADA
IN STOCK 		$1.94 (72.6% off) 1
006 6617095
LAMP SV8,5-8 5W
LAMPADA 		$8.90 (1.1% off) 1
007 6337097
REAR FOG LIGHT
RETRONEBBIA 		$111.29 1
007 6337098
REVERSE LAMP
FANALE RETROMARCIA 		- 1 Enquire
008 6617094
LAMP BA 15S 21W
LAMPADA 		$7.92 (2.2% off) 4
009 N0211963
NUT
DADO
IN STOCK 		$0.72 4
010 WHT003040
WASHER 5.3X1.5X15 (For Becker Radio System)
RONDELLA 		$7.08 4
011 6617095
LAMP SV8,5-8 5W
LAMPADA 		$8.90 (1.1% off) 2
012 WHT003424
CLIP
MOLLETTA
IN STOCK 		$0.83 (88.6% off) 4
013 8700445
SCREW
VITE 		$0.64 (91.3% off) 4
014 6328344
LICENCE PLATE LAMP
FANALE TARGA 		$42.39 (7.4% off) 2
015 9911300
RIGHT PANEL
PANNELLO DX 		$937.90 (7.6% off) 1
015 9911301
LEFT PANEL
PANNELLO SX 		$937.90 (7.6% off) 1
016 9444005VSN
RIGHT FRAME
CORNICE DX 		$401.30 1
016 9444006VSN
LEFT FRAME
CORNICE SX 		$398.98 1
017 6329828
TAIL LAMP / BRAKE L.
FANALE POST. (POSIZIONE E STOP) 		$132.42 2
018 6329829
TURNING LIGHT
INDICATORE Dl DIREZIONE 		$71.71 (7.5% off) 2
019 6617091
LAMP 15D 32220 5/21W
LAMPADA 		$10.87 (1.6% off) 2
020 WHT002961
WASHER
RONDELLA
IN STOCK 		$0.39 8
021 WHT002963
WASHER
RONDELLA
IN STOCK 		$0.12 (98.4% off) 8
022 N01100632
NUT M6
DADO 		$4.21 (42.6% off) 8
023 6319022
REFLEX/REFLECTOR
CATADIOTTRO 		$155.85 2
024 6329897
BULB
LAMPADA
IN STOCK 		$2.38 (6.7% off) 2
025 R1050004
KIT 2 DIRECTION INDICATORS
use (0R1050004 - sets of 2 pieces) 		$163.08 (10.4% off) 2
026 N0211963
NUT
DADO
IN STOCK 		$0.72 6
027 WHT003040
WASHER 5.3X1.5X15 (For Becker Radio System)
RONDELLA 		$7.08 6
028 2403369
SPRING
MOLLA 		$30.77 4
029 6337296
STUD
COLONNETTA 		$15.21 6
030 8410508
WASHER
RONDELLA 		$0.04 (99.5% off) 6
031 6329695
BULB
LAMPADA 		$15.48 (7.9% off) 2
032 N0211963
NUT
DADO
IN STOCK 		$0.72 6
033 WHT003040
WASHER 5.3X1.5X15 (For Becker Radio System)
RONDELLA 		$7.08 8
034 6336822
LEFT FLASH LIGHT
FLASH DIURNO SX 		$401.99 1
034 6336821
RIGHT FLASH LIGHT
FLASH DIURNO DX 		$401.99 1
035 6337297
STUD
STUD 		$15.21 6
036 6617094
LAMP BA 15S 21W
BULB 		$7.92 (2.2% off) 2
037 6329696
BULB
BULB 		$2.66 (9.8% off) 2
038 6331780
RIGHT FRONT LAMP
RIGHT FRONT LAMP 		$100.76 1
038 6331779
LEFT FRONT LAMP
LEFT FRONT LAMP 		$100.76 1
039 8700304
SCREW
SCREW 		$0.06 (99.2% off) 8
