Front Hood of Lamborghini Lamborghini Diablo SV (1995-1997)

View All

Lamborghini Diablo SV (1995-1997) - Front Hood

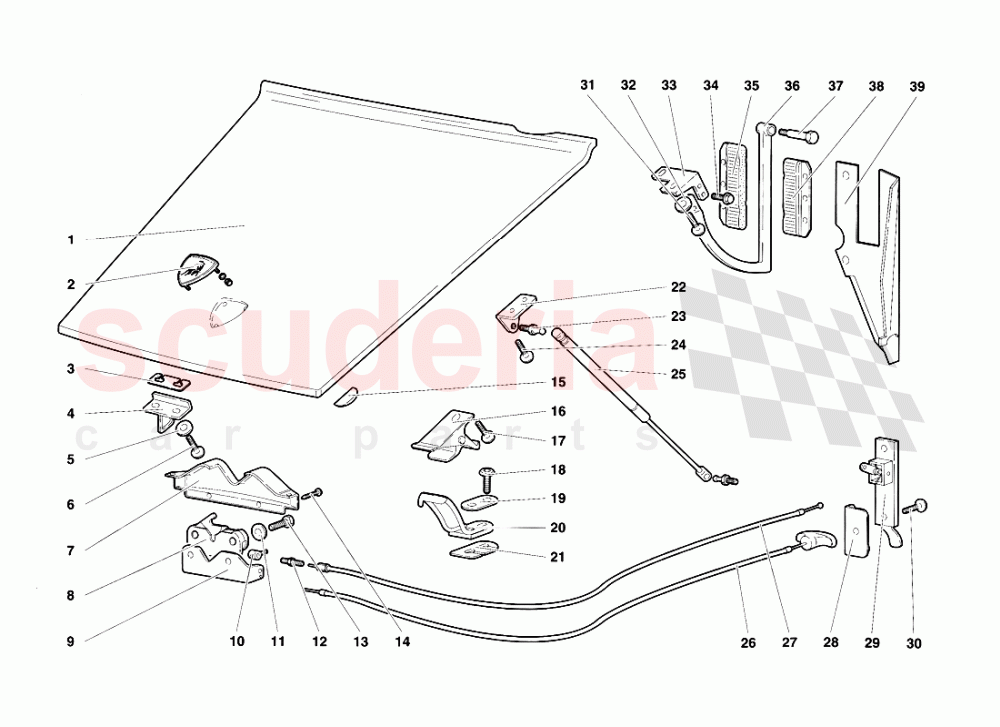

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9459010	FRONT BONNET	9459010 FRONT BONNET COFANO ANTERIORE	$1,774.10 MSRP: ~~1,935.00~~ (8.3% off)	1
002	6127985	ORNAMENT	6127985 ORNAMENT SCUDO LAMBORGHINI	$422.79	1
003	9459228	SHIM	9459228 SHIM SPESSORE	$16.18	2
004	9459227	LOCK STRIKER	9459227 LOCK STRIKER RISCONTRO	$118.10	1
005	8400627	WASHER	8400627 WASHER RONDELLA	$20.40 MSRP: ~~22.95~~ (11.1% off)	2
006	8700665	SCREW	8700665 SCREW VITE	$46.96 MSRP: ~~53.00~~ (11.4% off)	2
007	9459230	COVERING	9459230 COVERING RIVESTIMENTO	$38.77 MSRP: ~~42.05~~ (7.8% off)	1
008	9459216	LOCK	9459216 LOCK SERRATURA	$177.41	1
009	9459213	SPACER	9459213 SPACER DISTANZIALE	$20.68 MSRP: ~~22.50~~ (8.1% off)	1
010	9459217	CLAMP	9459217 CLAMP MORSETTO	-	1	Enquire
011	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.39	2
012	9460213	ADJ/SCREW	9460213 ADJ/SCREW VITE REGISTRO	-	1	Enquire
013	8100623	SCREW	8100623 SCREW VITE	$0.33	2
014	WHT003065	SCREW (2,9X16) IN STOCK	WHT003065 SCREW (2,9X16) VITE IN STOCK	$1.24 MSRP: ~~7.18~~ (82.7% off)	2
015	9459109	LEFT ELASTIC PAD	9459109 LEFT ELASTIC PAD TASSELLO SX	$32.45 MSRP: ~~36.45~~ (11% off)	1
015	9459108	RIGHT ELASTIC PAD	9459108 RIGHT ELASTIC PAD TASSELLO DX	$32.45 MSRP: ~~36.45~~ (11% off)	1
016	9459208	HOOK	9459208 HOOK GANCIO	$106.82 MSRP: ~~116.00~~ (7.9% off)	1
017	8700665	SCREW	8700665 SCREW VITE	$46.96 MSRP: ~~53.00~~ (11.4% off)	1
018	8700665	SCREW	8700665 SCREW VITE	$46.96 MSRP: ~~53.00~~ (11.4% off)	2
019	9459226	PLATE	9459226 PLATE PIASTRINA	$28.05	1
020	9459224	LOCK STRIKER	9459224 LOCK STRIKER RISCONTRO	$158.59	1
021	9459225	SHIM	9459225 SHIM SPESSORE Dl REGISTRO	$14.75 MSRP: ~~16.50~~ (10.6% off)	1
022	9459309	BRACKET	9459309 BRACKET STAFFA	$35.48 MSRP: ~~40.00~~ (11.3% off)	2
023	9459305	BALL PIN IN STOCK	9459305 BALL PIN PERNO IN STOCK	$2.63	4
024	8700665	SCREW	8700665 SCREW VITE	$46.96 MSRP: ~~53.00~~ (11.4% off)	4
025	79004387	SHOCK ABSORBER	79004387 SHOCK ABSORBER MARTI NETTO	$129.98	2
026	9459003	CABLE	9459003 CABLE CAVO EMERGENZA	-	1	Enquire
027	9459001	CABLE	9459001 CABLE CAVO APERTURA COFANO	$21.12	1
028	9459223	PLATE	9459223 PLATE PIASTRINA	$13.15 MSRP: ~~14.75~~ (10.8% off)	1
029	9459200	HANDLE	9459200 HANDLE MANIGLIA APERTURA COFANO	$481.56	1
030	8700544	SCREW	8700544 SCREW VITE	$1.61	2
031	8740685	SCREW IN STOCK	8740685 SCREW VITE IN STOCK	$19.89	4
032	8400627	WASHER	8400627 WASHER RONDELLA	$20.40 MSRP: ~~22.95~~ (11.1% off)	4
033	9459322	LEFT SUPPORT	9459322 LEFT SUPPORT SUPPORTO SX	$46.96 MSRP: ~~53.00~~ (11.4% off)	1
033	9459321	RIGHT SUPPORT	9459321 RIGHT SUPPORT SUPPORTO DX	$46.96 MSRP: ~~53.00~~ (11.4% off)	1
034	8700674	SCREW	8700674 SCREW VITE	-	4	Enquire
035	9459310	BRUSH	9459310 BRUSH SPAZZOLA	$70.27	2
036	9459325	RIGHT HINGE	9459325 RIGHT HINGE CERNIERA DX	$253.97	1
036	9459320	LEFT HINGE	9459320 LEFT HINGE CERNIERASX	-	1	Enquire
037	9459323	PIN	9459323 PIN PERNO	$50.55	2
038	9459311	BRUSH	9459311 BRUSH SPAZZOLA	$70.27	2
039	9459317	LEFT PLATE	9459317 LEFT PLATE PIASTRA SX	$43.14	1
039	9459316	RIGHT PLATE	9459316 RIGHT PLATE PIASTRA DX	$176.26	1
