Doors 2 of Lamborghini Lamborghini Diablo SV (1995-1997)

View All

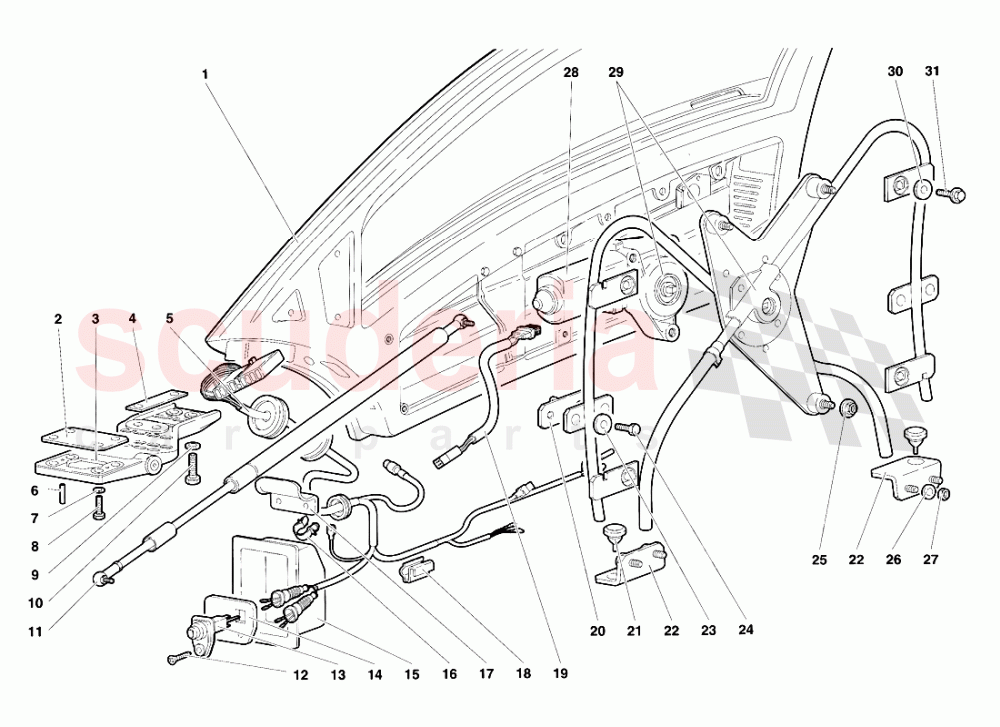

Lamborghini Diablo SV (1995-1997) - Doors 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9421055	RIGHT DOOR	9421055 RIGHT DOOR PORTA DX	$8,052.78 MSRP: ~~8,745.00~~ (7.9% off)	1
001	9421056	LEFT DOOR	9421056 LEFT DOOR PORTA SX	$8,052.78 MSRP: ~~8,745.00~~ (7.9% off)	1
002	4132054	SHIM	4132054 SHIM SPESSORE 1,5 MM	-	1	Enquire
002	4132053	SHIM	4132053 SHIM SPESSORE 1,2 MM	-	1	Enquire
002	4132051	SHIM	4132051 SHIM SPESSORE 0,8 MM	-	1	Enquire
002	4132052	SHIM	4132052 SHIM SPESSORE 1 MM	-	1	Enquire
003	9421030	LH HINGE	9421030 LH HINGE CERNIERASX	$1,187.47 MSRP: ~~1,335.00~~ (11.1% off)	1
003	410831402	RH HINGE	410831402 RH HINGE CERNIERA DX	$1,082.60	1
004	9421380	SHIM	9421380 SHIM SPESSORE 1 MM	-	1	Enquire
004	9421381	SHIM	9421381 SHIM SPESSORE 1,5 MM	$26.24 MSRP: ~~29.45~~ (10.9% off)	1
005	6136333	RIGHT ELECT CABLE	6136333 RIGHT ELECT CABLE CABLAGGIO DX	$151.61	1
005	6136334	LEFT ELECT CABLE	6136334 LEFT ELECT CABLE CABLAGGIO SX	$162.58	1
006	8900401	PIN IN STOCK	8900401 PIN SA ELASTICA IN STOCK	$0.23 MSRP: ~~7.35~~ (96.9% off)	4
007	8400801	WASHER	8400801 WASHER RONDELLA	$0.64	8
008	8100821	SCREW	8100821 SCREW VITE	$1.20	8
009	8411015	WASHER	8411015 WASHER RONDELLA	$10.51 MSRP: ~~11.70~~ (10.2% off)	8
010	8101008	SCREW	8101008 SCREW VITE	$15.01	8
011	9421031	DOOR STRUT	9421031 DOOR STRUT MARTINETTO	$119.97	2
012	WHT003304	SCREW IN STOCK	WHT003304 SCREW VITE IN STOCK	$0.57 MSRP: ~~7.28~~ (92.2% off)	2
013	5934450	SWITCH	5934450 SWITCH INTERRUTTORE	$19.95 MSRP: ~~21.75~~ (8.3% off)	2
014	5934447	PLATE	5934447 PLATE PIASTRINA	$69.17 MSRP: ~~77.80~~ (11.1% off)	2
015	5934453	SHIELD	5934453 SHIELD PROTEZIONE	$40.24 MSRP: ~~45.25~~ (11.1% off)	2
016	8830411	STRAP IN STOCK	8830411 STRAP FASCETTA IN STOCK	$1.20 MSRP: ~~7.09~~ (83.1% off)	2
017	9421613	BRACKET	9421613 BRACKET STAFFA	$32.75	2
018	8830302	CLAMP	8830302 CLAMP FASCETTA	$4.10	10
019	9421606	ELECT CABLE	9421606 ELECT CABLE CABLAGGIO	$23.41 MSRP: ~~26.25~~ (10.8% off)	2
020	9421607	BRACKET	9421607 BRACKET STAFFA	$55.07	4
021	9421408	RUBBER BUMPER	9421408 RUBBER BUMPER PARACOLPI COMMA	$21.12	4
022	9421407	LEFT DOOR PLATE	9421407 LEFT DOOR PLATE PIASTRINA PORTA SX	$8.88 MSRP: ~~9.70~~ (8.5% off)	2
022	9421406	RIGHT DOOR PLATE	9421406 RIGHT DOOR PLATE PIASTRINA PORTA DX	$44.84 MSRP: ~~50.50~~ (11.2% off)	2
023	8400501	WASHER IN STOCK	8400501 WASHER RONDELLA IN STOCK	$0.18 MSRP: ~~7.36~~ (97.6% off)	8
024	N01020717	SCREW M5X12 IN STOCK	N01020717 SCREW M5X12 VITE IN STOCK	$1.24 MSRP: ~~7.31~~ (83% off)	8
025	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT DADO IN STOCK	$0.19	6
026	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System) RONDELLA	$7.05	8
027	N0211963	NUT IN STOCK	N0211963 NUT DADO IN STOCK	$0.72	8
028	9421605	LEFT ELECT MOTOR	9421605 LEFT ELECT MOTOR MOTORING SX	$454.25 MSRP: ~~494.00~~ (8% off)	1
028	9421604	RIGHT ELECT MOTOR	9421604 RIGHT ELECT MOTOR MOTORING DX	$454.25 MSRP: ~~494.00~~ (8% off)	1
029	9421600	RIGHT KIT WIND. REGUL	9421600 RIGHT KIT WIND. REGUL KIT ALZACRISTALLO DX	$1,358.16	1
029	9421601	LEFT KIT WINDOW REGUL.	9421601 LEFT KIT WINDOW REGUL. KIT ALZACRISTALLO SX	$2,145.30	1
030	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.39	8
031	N90319404	SCREW IN STOCK	N90319404 SCREW VITE IN STOCK	$2.07	8
