Air Filters of Lamborghini Lamborghini Diablo SV (1995-1997)

View All

Lamborghini Diablo SV (1995-1997) - Air Filters

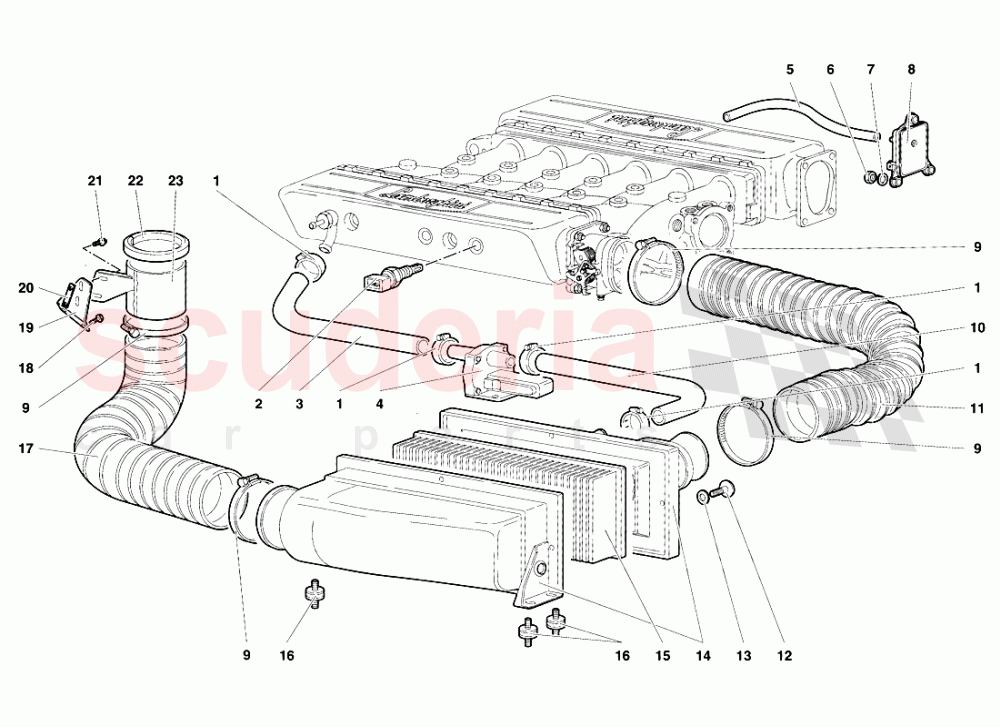

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	8832003	CLAMP IN STOCK	8832003 CLAMP FASCETTA IN STOCK	$41.16	8
002	7M919529	Air Temperature Sensor	7M919529 Air Temperature Sensor	$267.86	2
003	1330524	LEFT PIPE	1330524 LEFT PIPE TUBO SINISTRO	$195.90	1
003	1330525	RIGHT PIPE IN STOCK	1330525 RIGHT PIPE TUBO DESTRO IN STOCK	$133.14	1
004	2021139	VALVE	2021139 VALVE VALVOLA ARIA ADDIZIONALE	$4,288.68	2
005	1330454	PIPE	1330454 PIPE TUBO	$132.03 MSRP: ~~147.50~~ (10.5% off)	2
006	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.08	6
007	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.39	6
008	7M919529A	PRESSURE SENSOR	7M919529A PRESSURE SENSOR SENSORE PRESSIONE ASSOLUTA	$415.17	2
009	8838701	STRAP IN STOCK	8838701 STRAP FASCETTA IN STOCK	$6.63 MSRP: ~~7.30~~ (9.2% off)	8
010	1334382	PIPE	1334382 PIPE TUBO SINISTRO	$92.03	1
010	1334383	PIPE	1334383 PIPE TUBO DESTRO	$87.70	1
011	1331286	RIGHT FLEX. HOSE	1331286 RIGHT FLEX. HOSE TUBO FLESSIBILE DESTRO	$106.77 MSRP: ~~115.50~~ (7.6% off)	1
011	1333774	LEFT FLEX. HOSE IN STOCK	1333774 LEFT FLEX. HOSE TUBO FLESSIBILE SINISTRO IN STOCK	$185.23 MSRP: ~~209.00~~ (11.4% off)	1
012	8700671	SCREW	8700671 SCREW VITE	$3.94	8
013	N91115501	WASHER	N91115501 WASHER RONDELLA	$1.16 MSRP: ~~7.33~~ (84.2% off)	8
014	1335516	RIGHT CASE	1335516 RIGHT CASE SCATOLA FILTRO ARIA DESTRO	$629.58	1
014	1335520	LEFT CASE	1335520 LEFT CASE SCATOLA FILTRO ARIA SINISTRO	$1,238.64	1
015	7M133843	Air Filter IN STOCK	7M133843 Air Filter IN STOCK	$26.25	2
016	9411508	ELASTIC SUPPORT	9411508 ELASTIC SUPPORT SUPPORTO ELASTICO	$29.61	6
017	1337438	PIPE	1337438 PIPE TUBO FLESSIBILE	$357.97	2
018	N10718801	HEX COLLARED BOLT IN STOCK	N10718801 HEX COLLARED BOLT VITE IN STOCK	$1.69	4
019	9453169	LEFT BRACKET	9453169 LEFT BRACKET STAFFA SX	$55.47	1
019	9453168	RIGHT BRACKET	9453168 RIGHT BRACKET STAFFA DX	$55.47	1
020	9453172	BRACKET	9453172 BRACKET STAFFA	$8.36	2
021	N10718801	HEX COLLARED BOLT IN STOCK	N10718801 HEX COLLARED BOLT VITE IN STOCK	$1.69	4
022	9453162	GASKET	9453162 GASKET GUARNIZIONE	$29.52	2
023	9453171	LEFT SUPPORT	9453171 LEFT SUPPORT SUPPORTO SX	$248.40	1
023	9453170	RIGHT SUPPORT	9453170 RIGHT SUPPORT SUPPORTO DX	$248.40	1
