Oil Sump of Lamborghini Lamborghini Diablo SV (1995-1997)

View All

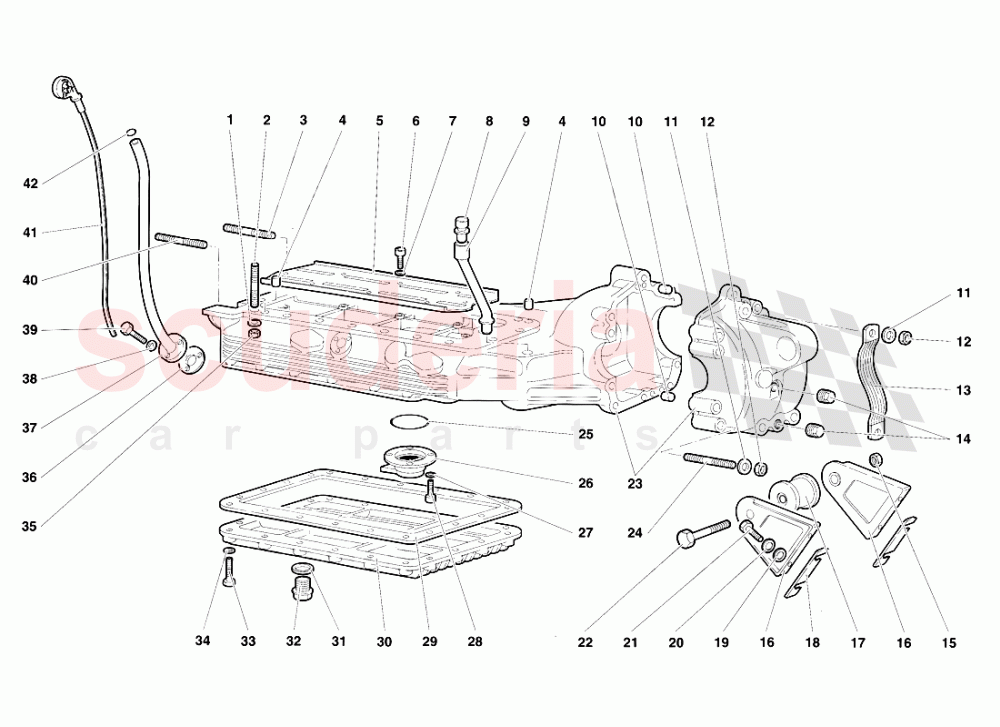

Lamborghini Diablo SV (1995-1997) - Oil Sump

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	WHT000771	WASHER IN STOCK	WHT000771 WASHER RONDELLA IN STOCK	$1.10	18
002	8300806	STUD	8300806 STUD PRIGIONIERO 70 MM	$5.19 MSRP: ~~5.70~~ (8.9% off)	6
002	8300897	STUD	8300897 STUD PRIGIONIERO106MM	$13.85 MSRP: ~~15.50~~ (10.6% off)	4
002	WHT003031	STUD BOLT	WHT003031 STUD BOLT PRIGIONIERO28MM	$9.06	8
003	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO	$20.71	1
004	8850806	DOWEL	8850806 DOWEL GRANO	-	2	Enquire
005	1827775	PLATE	1827775 PLATE PARATIA ANTISBATTIMENTO	$79.39 MSRP: ~~86.40~~ (8.1% off)	1
006	8700646	SCREW IN STOCK	8700646 SCREW VITE IN STOCK	$0.15 MSRP: ~~7.37~~ (98% off)	8
007	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.66	8
008	B9507141	OIL BREATHER PIPE	B9507141 OIL BREATHER PIPE SFIATO OLIO	$64.76	1
009	2334402	PIPE	2334402 PIPE TUBO	$253.44	1
010	8850806	DOWEL	8850806 DOWEL GRANO	-	2	Enquire
011	WHT000768	WASHER IN STOCK	WHT000768 WASHER IN STOCK	$1.82 MSRP: ~~7.28~~ (75% off)	10
012	N10155210	NUT IN STOCK	N10155210 NUT DADO IN STOCK	$2.00 MSRP: ~~7.24~~ (72.4% off)	10
013	1604328	GROUND CABLE	1604328 GROUND CABLE CAVO MASSA	-	2	Enquire
014	86301141A	MAGNETIC PLUG	86301141A MAGNETIC PLUG TAPPO MAGNETICO	$34.83	2
015	8201416	NUT	8201416 NUT DADO	$1.61	1
016	4126765	BRACKET	4126765 BRACKET STAFFA	$254.61 MSRP: ~~287.00~~ (11.3% off)	2
017	B9501144	support mount IN STOCK	B9501144 support mount IN STOCK	$186.60 MSRP: ~~190.50~~ (2% off)	1
018	4126766	SPACER	4126766 SPACER SPESSORE Dl REGISTRO	-	1	Enquire
019	8400801	WASHER	8400801 WASHER RONDELLA	$0.63	4
020	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.44	4
021	8100862	SCREW	8100862 SCREW VITE	$0.59	4
022	8101430	SCREW	8101430 SCREW VITE	$3.28 MSRP: ~~3.65~~ (10.1% off)	1
023	453400100	OIL SUMP	453400100 OIL SUMP COPPA OLIO LAVORATA	-	1	Enquire
024	8301033	STUD	8301033 STUD PRIGIONIERO	$33.94	10
025	WHT002222	SEAL RING	WHT002222 SEAL RING	$12.31	1
026	1832017	FLANGE	1832017 FLANGE FLANGIA	$304.14 MSRP: ~~330.00~~ (7.8% off)	1
027	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.66	4
028	8700646	SCREW IN STOCK	8700646 SCREW VITE IN STOCK	$0.15 MSRP: ~~7.37~~ (98% off)	4
029	1826521	GASKET	1826521 GASKET GUARNIZIONE	$115.77	1
030	1831852	LOWER COVER	1831852 LOWER COVER COPERCHIO INFERIORE	$514.75	1
031	8402202	WASHER IN STOCK	8402202 WASHER RONDELLA IN STOCK	$3.99 MSRP: ~~4.45~~ (10.3% off)	1
032	8932211	Drain Plug	8932211 Drain Plug TAPPO Dl SCARICO	$23.99	1
033	8100603	SCREW	8100603 SCREW VITE	$1.28 MSRP: ~~7.35~~ (82.6% off)	20
034	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.66	20
035	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.93	18
036	1830006	GASKET	1830006 GASKET GUARNIZIONE	$7.81	1
037	1831138	PIPE	1831138 PIPE TUBO PORTA ASTA	$578.32	1
038	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.66	3
039	8100601	SCREW	8100601 SCREW VITE	$0.25	3
040	8300808	STUD BOLT	8300808 STUD BOLT use : WHT003027	$5.64	2
041	1831041	OIL LEVEL ROD	1831041 OIL LEVEL ROD ASTA LIVELLO	$321.90	1
042	WHT003057	SEAL RING IN STOCK	WHT003057 SEAL RING ANELLO TENUTA IN STOCK	$2.07 MSRP: ~~7.29~~ (71.6% off)	1
