Accessories for Right Cylinder Head of Lamborghini Lamborghini Diablo SV (1995-1997)

View All

Lamborghini Diablo SV (1995-1997) - Accessories for Right Cylinder Head

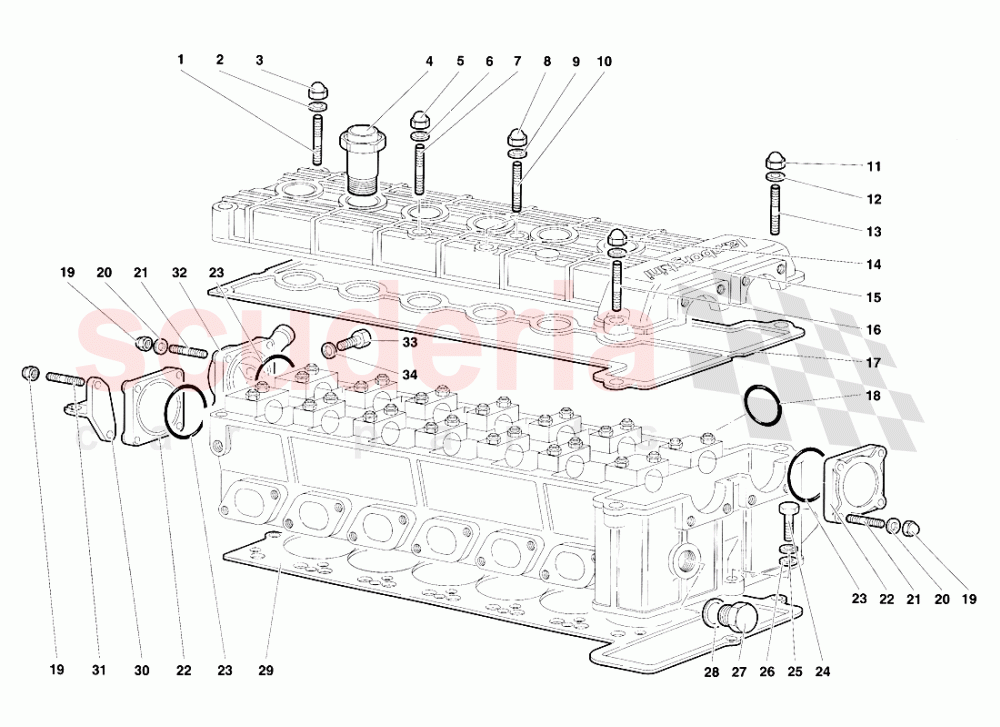

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8300649	STUD BOLT	8300649 STUD BOLT PRIGIONIERO	$8.85 MSRP: ~~9.85~~ (10.2% off)	1
002	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	1
003	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.85	1
004	1134281	UNION	1134281 UNION BOCCHETTONE	$190.18 MSRP: ~~206.50~~ (7.9% off)	6
005	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.85	1
006	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	1
007	8300613	STUD BOLT	8300613 STUD BOLT PRIGIONIERO	$4.62 MSRP: ~~5.10~~ (9.4% off)	1
008	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.85	2
009	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	2
010	8300610	STUD BOLT	8300610 STUD BOLT PRIGIONIERO	$22.94 MSRP: ~~25.65~~ (10.6% off)	2
011	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.85	1
012	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	1
013	8300637	STUD BOLT	8300637 STUD BOLT PRIGIONIERO	$13.37 MSRP: ~~15.00~~ (10.9% off)	1
014	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.85	1
015	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	1
016	8300651	STUD BOLT	8300651 STUD BOLT PRIGIONIERO	$11.06 MSRP: ~~12.30~~ (10.1% off)	1
017	1120811	CAM COVER GASKET	1120811 CAM COVER GASKET	$168.22	1
018	8604703	SEAL RING	8604703 SEAL RING ANELLO TENUTA	$7.62 MSRP: ~~8.45~~ (9.8% off)	6
019	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.85	12
020	8400620	WASHER	8400620 WASHER RONDELLA	$1.40 MSRP: ~~7.38~~ (81% off)	10
021	8300601	STUD BOLT	8300601 STUD BOLT PRIGIONIERO	$8.03	10
022	1114502	COVER	1114502 COVER COPERCHIO	$176.32 MSRP: ~~191.00~~ (7.7% off)	2
023	8606205	O-Ring	8606205 O-Ring ANELLO TENUTA	$4.00	3
024	8100807	SCREW	8100807 SCREW VITE	$0.78 MSRP: ~~7.27~~ (89.3% off)	1
025	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.44	1
026	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.44 MSRP: ~~7.15~~ (79.9% off)	1
027	7M103035	PLUG	7M103035 PLUG	$59.25	1
028	8402609	WASHER	8402609 WASHER RONDELLA	-	1	Enquire
029	1132416	GASKET	1132416 GASKET GUARNIZIONE	-	1	Enquire
030	1131708	BRACKET	1131708 BRACKET FERMA GUAINA	$137.02 MSRP: ~~153.50~~ (10.7% off)	1
031	8300615	STUD	8300615 STUD PRIGIONIERO	$18.86 MSRP: ~~21.05~~ (10.4% off)	2
032	1133383	VENT PIPE	1133383 VENT PIPE TUBO Dl SFIATO	$161.86 MSRP: ~~176.00~~ (8% off)	1
033	8100839	SCREW	8100839 SCREW VITE	$0.43 MSRP: ~~7.31~~ (94.1% off)	1
034	8400802	WASHER	8400802 WASHER RONDELLA	$1.40 MSRP: ~~7.27~~ (80.7% off)	1
