Intake Manifold 1 of Lamborghini Lamborghini Diablo SV (1995-1997)

View All

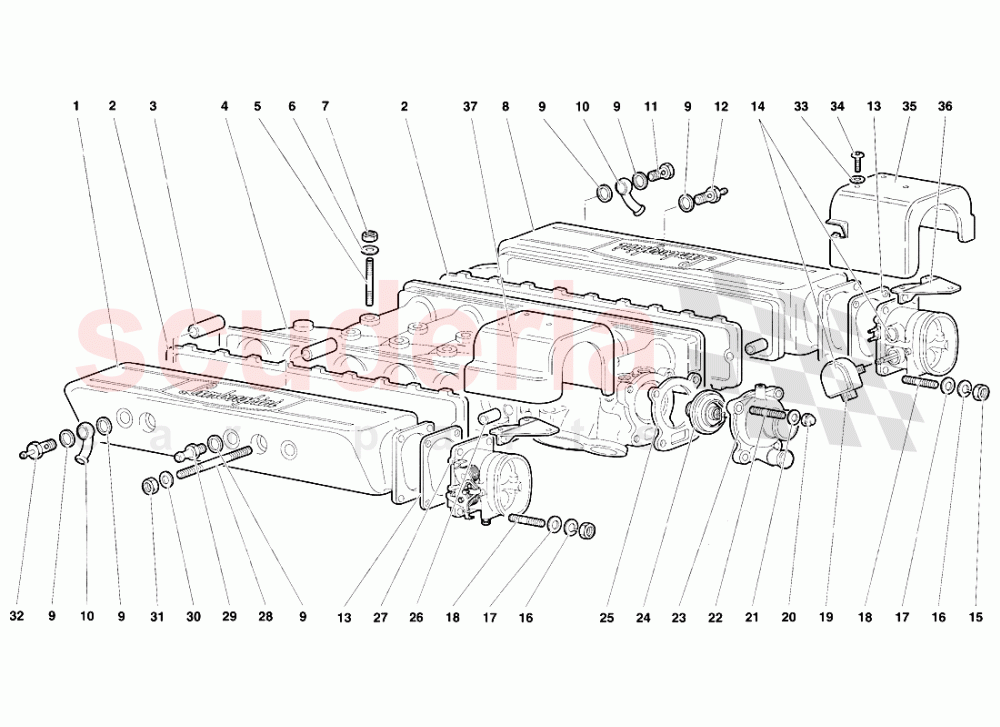

Lamborghini Diablo SV (1995-1997) - Intake Manifold 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1336445	COVER	1336445 COVER COPERCHIO DESTRO	-	1	Enquire
002	1323717	Gasket	1323717 Gasket GUARNIZIONE	$53.95	2
003	1336467	SPACER	1336467 SPACER DISTANZIALE	$104.38	4
004	1337469	INLET MANIFOLD	1337469 INLET MANIFOLD COLLETTORE ASPIRAZIONE	$4,611.48	1
005	8300613	STUD BOLT	8300613 STUD BOLT PRIGIONIERO	$4.61 MSRP: ~~5.10~~ (9.6% off)	10
006	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	6
007	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.84	10
008	1336446	COVER	1336446 COVER COPERCHIO SINISTRO	-	1	Enquire
009	3101513	WASHER IN STOCK	3101513 WASHER RONDELLA IN STOCK	$1.34 MSRP: ~~7.32~~ (81.7% off)	6
010	1328002	CONNECTION	1328002 CONNECTION RACCORDO	$54.59	2
011	3101941	SCREW	3101941 SCREW RACCORDO	$4.36	1
012	1330455	CONNECTION	1330455 CONNECTION RACCORDO	$30.80 MSRP: ~~33.45~~ (7.9% off)	1
013	1326311	GASKET	1326311 GASKET GUARNIZIONE	$68.13	2
014	1326293	THROTTLE HOLDER	1326293 THROTTLE HOLDER CORPO FARF. SX CON POTENZ.	$1,320.03 MSRP: ~~1,485.00~~ (11.1% off)	1
015	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.93	8
016	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.44	8
017	WHT002962	WASHER 14X8.4X1.5 IN STOCK	WHT002962 WASHER 14X8.4X1.5 RONDELLA IN STOCK	$0.32 MSRP: ~~7.35~~ (95.6% off)	8
018	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO	$20.72	8
019	1327641	POTENTIOMETER	1327641 POTENTIOMETER POTENZIOMETRO	$159.11 MSRP: ~~173.50~~ (8.3% off)	1
020	8200816	NUT	8200816 NUT DADO	$4.78	4
021	8410803	WASHER	8410803 WASHER RONDELLA	$0.07	4
022	8300803	STUD BOLT	8300803 STUD BOLT PRIGIONIERO	$12.59	4
023	1732806	COVER	1732806 COVER COPERCHIO	$998.39 MSRP: ~~1,125.00~~ (11.3% off)	1
024	17006576	THERMOSTAT	17006576 THERMOSTAT TERMOSTATO ACQUA	$504.39	1
025	1732808	GASKET	1732808 GASKET GUARNIZIONE	$27.27	1
026	WHT003577	DOWEL	WHT003577 DOWEL SA	$1.67 MSRP: ~~7.03~~ (76.2% off)	4
027	1326181	THROTTLE HOLDER	1326181 THROTTLE HOLDER CORPO FARFALLATO DESTRO	$1,213.22	1
028	8301030	STUD	8301030 STUD PRIGIONIERO	$32.51	4
029	1330882	CONNECTION	1330882 CONNECTION RACCORDO	-	1	Enquire
030	8401022	WASHER	8401022 WASHER RONDELLA	$0.25 MSRP: ~~7.35~~ (96.6% off)	4
031	8201006	NUT	8201006 NUT DADO	$7.04	4
032	1328722	CONNECTION	1328722 CONNECTION RACCORDO	$150.45	1
033	8400511	WASHER	8400511 WASHER RONDELLA	$0.30	6
034	8700544	SCREW	8700544 SCREW VITE	$1.62	6
035	1335305	LEFT SHIELD	1335305 LEFT SHIELD PROTEZIONE SX	$447.88	1
036	1335307	BRACKET	1335307 BRACKET STAFFA	$25.71	2
037	1335306	RIGHT SHIELD	1335306 RIGHT SHIELD PROTEZIONE DX	$340.09	1
