Gearbox Oil Pump of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

Lamborghini Diablo SE30 (1993-1995) - Gearbox Oil Pump

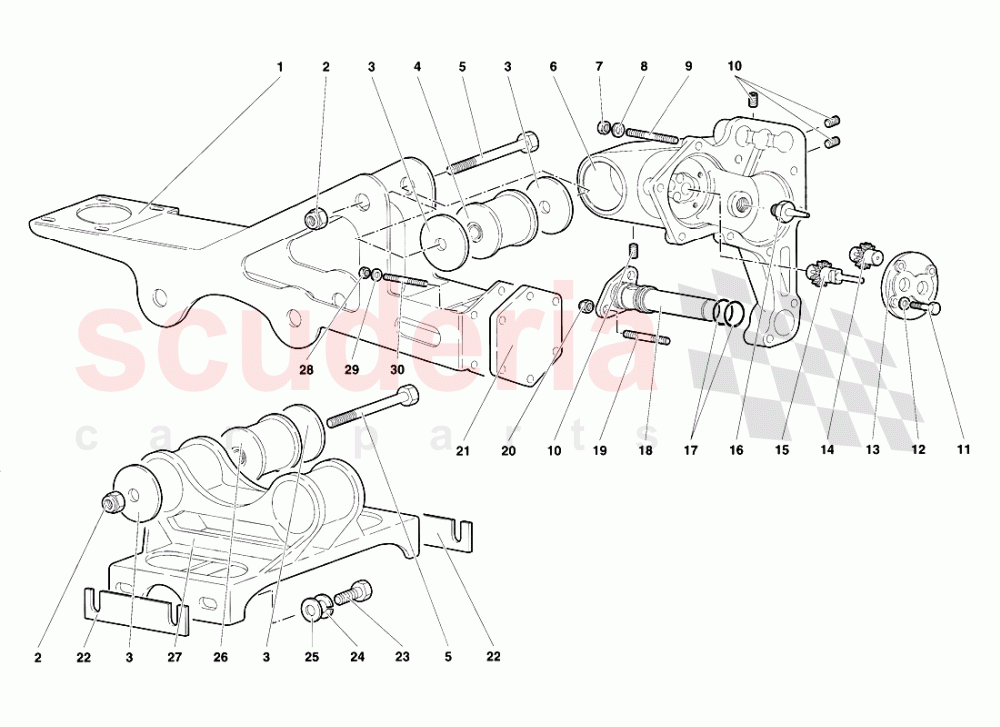

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	2431479	SUPPORT - SUPPORTO	2431479 SUPPORT - SUPPORTO O	$421.77	1
002	8201416	NUT	8201416 NUT DADO	$1.63	3
003	4130884	WASHER	4130884 WASHER RONDELLA	$39.67	2
004	B9501144	support mount IN STOCK	B9501144 support mount IN STOCK	$188.20 MSRP: ~~190.50~~ (1.2% off)	1
005	8101430	SCREW	8101430 SCREW VITE	$3.31 MSRP: ~~3.65~~ (9.3% off)	3
006	2431783	COVER	2431783 COVER COPERCHIO ANT. SCAT. CAMBIO	$2,399.33	1
007	8200806	NUT	8200806 NUT DADO	$0.35 MSRP: ~~7.33~~ (95.2% off)	8
008	WHT001514	WASHER IN STOCK	WHT001514 WASHER RONDELLA IN STOCK	$23.36 MSRP: ~~64.00~~ (63.5% off)	8
009	8300840	STUD	8300840 STUD PRIGIONIERO	$3.16 MSRP: ~~3.40~~ (7.1% off)	8
010	8701204	PLUG	8701204 PLUG VITE	$1.96 MSRP: ~~2.15~~ (8.8% off)	4
011	8100617	SCREW	8100617 SCREW VITE	$5.45 MSRP: ~~6.00~~ (9.2% off)	4
012	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$42.02	4
013	2431778	COVER	2431778 COVER COPERCHIO P.OLIO CAMBIO	$403.18 MSRP: ~~435.00~~ (7.3% off)	1
014	2425185	DRIVEN GEAR	2425185 DRIVEN GEAR INGRANAGGIO CONDOTTO	$1,044.33	1
015	2425184	GEAR	2425184 GEAR INGRANAGGIO	$928.36	1
016	2425259	JET	2425259 JET UGELLO	$19.17 MSRP: ~~21.35~~ (10.2% off)	1
017	8602301	SEAL	8602301 SEAL ANELLO TENUTA	$1.63 MSRP: ~~7.04~~ (76.8% off)	2
018	2425246	OIL FILTER	2425246 OIL FILTER FILTRO OLIO	$166.70	1
019	8300833	STUD BOLT	8300833 STUD BOLT PRIGIONIERO	$5.70 MSRP: ~~6.30~~ (9.5% off)	2
020	8200821	NUT	8200821 NUT DADO	$2.63 MSRP: ~~2.80~~ (6.1% off)	2
021	2425638	COVER	2425638 COVER FLANGIA	$59.38	1
022	4126766	SPACER	4126766 SPACER DISTANZIALE	-	1	Enquire
023	N01033520	SCREW M8X35 IN STOCK	N01033520 SCREW M8X35 VITE IN STOCK	$3.16 MSRP: ~~7.19~~ (56.1% off)	4
024	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.45	4
025	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.45 MSRP: ~~7.15~~ (79.7% off)	4
026	B9501144	support mount IN STOCK	B9501144 support mount IN STOCK	$188.20 MSRP: ~~190.50~~ (1.2% off)	2
027	4131478	SUPPORT - SUPPORTO	4131478 SUPPORT - SUPPORTO O	$424.21	1
028	N01100637	NUT M6 IN STOCK	N01100637 NUT M6 DADO IN STOCK	$0.31 MSRP: ~~7.29~~ (95.7% off)	6
029	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$42.02	6
030	8300602	STUD	8300602 STUD PRIGIONIERO	$6.28 MSRP: ~~6.95~~ (9.6% off)	6
