Gearbox of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

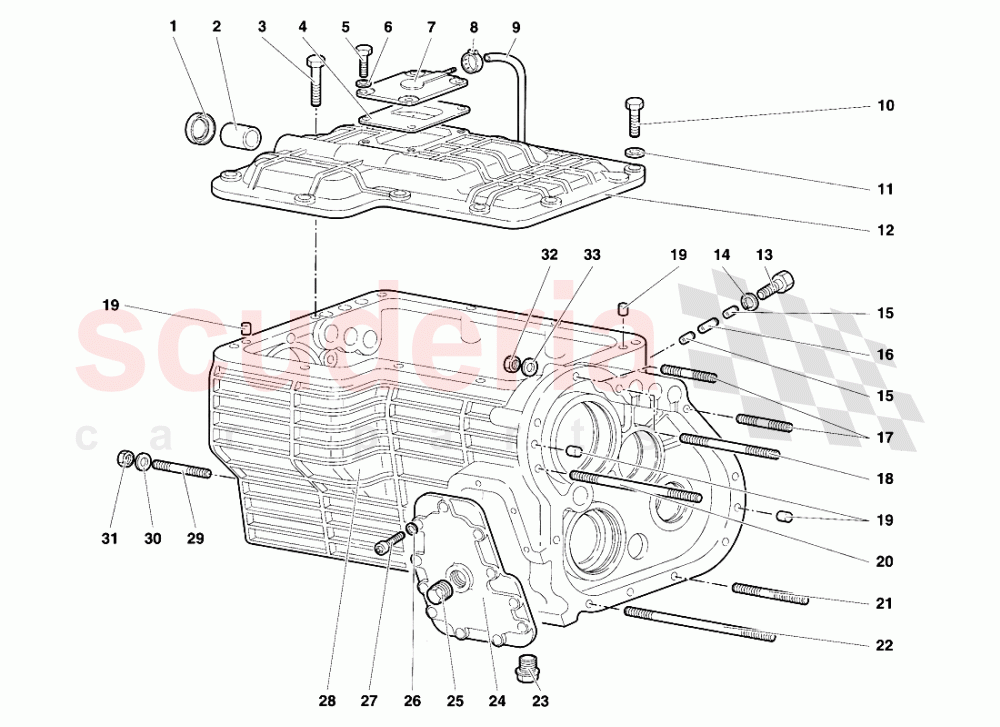

Lamborghini Diablo SE30 (1993-1995) - Gearbox

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8611605	SEAL	8611605 SEAL ANELLO TENUTA	$14.88 MSRP: ~~16.60~~ (10.4% off)	1
002	8801612	BUSHING	8801612 BUSHING BOCCOLA	-	1	Enquire
003	8100807	SCREW	8100807 SCREW VITE	$0.78 MSRP: ~~7.27~~ (89.3% off)	1
004	2428643	PAN	2428643 PAN VASCHETTA	$19.35 MSRP: ~~20.95~~ (7.6% off)	1
005	8100604	SCREW	8100604 SCREW VITE	$2.38	4
006	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.85	4
007	2428645	COVER	2428645 COVER COPERCHIO SFIATO	$118.64 MSRP: ~~128.50~~ (7.7% off)	1
008	8830128	CLAMP	8830128 CLAMP FASCETTA	$0.43	1
009	2428649	VENT PIPE	2428649 VENT PIPE TUBO Dl SFIATO	-	1	Enquire
010	8100803	SCREW M8X1,25X25	8100803 SCREW M8X1,25X25 VITE	$0.47 MSRP: ~~7.31~~ (93.6% off)	9
011	WHT001514	WASHER IN STOCK	WHT001514 WASHER RONDELLA IN STOCK	$23.27 MSRP: ~~64.00~~ (63.6% off)	10
012	2424900	COVER	2424900 COVER COPERCHIO SUPERIORE	$513.84 MSRP: ~~557.00~~ (7.7% off)	1
013	N01029315	SCREW (FROM VIN 5LA01545)	N01029315 SCREW (FROM VIN 5LA01545) VITE	$2.26 MSRP: ~~7.23~~ (68.7% off)	1
014	8400802	WASHER	8400802 WASHER RONDELLA	$1.40 MSRP: ~~7.27~~ (80.7% off)	1
015	2425223	ROD	2425223 ROD GRANO	$26.11 MSRP: ~~28.30~~ (7.7% off)	1
016	2425224	ROD	2425224 ROD PUNTALINO	$26.77 MSRP: ~~29.00~~ (7.7% off)	1
017	8300894	STUD	8300894 STUD PRIGIONIERO	$36.46	2
018	8300895	STUD	8300895 STUD PRIGIONIERO	$7.53 MSRP: ~~8.40~~ (10.4% off)	1
019	8850806	DOWEL	8850806 DOWEL GRANO	-	4	Enquire
020	8300896	STUD BOLT	8300896 STUD BOLT PRIGIONIERO	$25.33	1
021	8300892	STUD	8300892 STUD PRIGIONIERO	$32.05	7
022	8300889	STUD	8300889 STUD PRIGIONIERO	$27.02	1
023	86301141A	MAGNETIC PLUG	86301141A MAGNETIC PLUG TAPPO MAGNETICO	$34.99	1
024	2428586	SIDE COVER	2428586 SIDE COVER COPERCHIO LATERALE	$1,083.20	1
025	8931802	MAGNETIC PLUG	8931802 MAGNETIC PLUG TAPPO	$203.16	1
026	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.85	11
027	8700614	SCREW	8700614 SCREW VITE	$0.25	11
028	2429421	GEARBOX CASE	2429421 GEARBOX CASE SCATOLA CAMBIO	$3,836.30	1
029	8300602	STUD	8300602 STUD PRIGIONIERO	$6.25 MSRP: ~~6.95~~ (10.1% off)	6
030	WHT003052	WASHER 4,3 IN STOCK	WHT003052 WASHER 4,3 RONDELLA IN STOCK	$3.52 MSRP: ~~7.38~~ (52.3% off)	6
031	N01100637	NUT M6 IN STOCK	N01100637 NUT M6 DADO IN STOCK	$0.30 MSRP: ~~7.29~~ (95.9% off)	6
032	8200806	NUT	8200806 NUT DADO	$0.35 MSRP: ~~7.33~~ (95.2% off)	12
033	WHT001514	WASHER IN STOCK	WHT001514 WASHER RONDELLA IN STOCK	$23.27 MSRP: ~~64.00~~ (63.6% off)	12
