Main Shaft of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

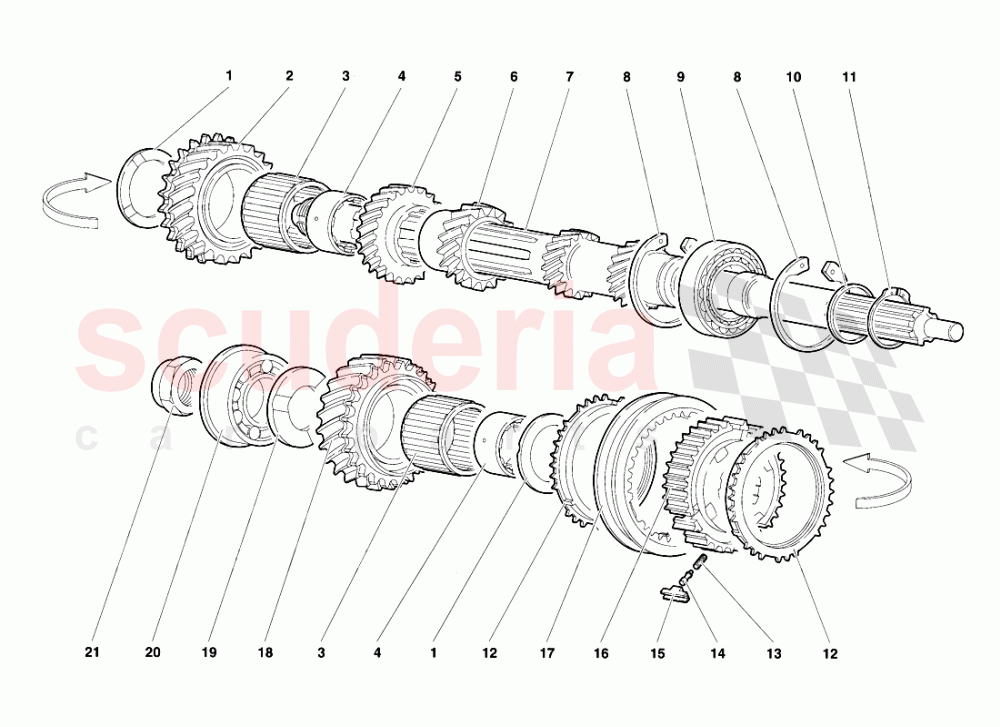

Lamborghini Diablo SE30 (1993-1995) - Main Shaft

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8584001	RETAINER RING	8584001 RETAINER RING ANELLO RITEGNO	$7.98 MSRP: ~~8.90~~ (10.3% off)	1
001	2424864	WASHER	2424864 WASHER RONDELLA	$1,522.32	2
002	2424889	GEAR	2424889 GEAR INGRANAGGIO 4 - MARCIA	$378.76	1
002	2421416	FRICTION RING	2421416 FRICTION RING ANELLO SINCRONIZZATORE	$1,421.26	2
003	8524701	ROLLER CAGE	8524701 ROLLER CAGE GABBIAARULLI	$44.51 MSRP: ~~50.10~~ (11.2% off)	2
004	2420124	SPLINED BUSHING	2420124 SPLINED BUSHING BOCCOLA DENTATA	$806.97	2
005	2424873	GEAR	2424873 GEAR INGRANAGGIO 3 - MARCIA	$237.88 MSRP: ~~259.00~~ (8.2% off)	1
006	2427097	GEAR	2427097 GEAR INGRANAGGIO 2 - MARCIA	$233.83 MSRP: ~~254.00~~ (7.9% off)	1
007	2428863	MAIN SHAFT	2428863 MAIN SHAFT ALBERO PRIMARIO	$16,442.34	1
008	8578001	RETAINER RING	8578001 RETAINER RING ANELLO RITEGNO	$6.15	2
009	8524010	BEARING	8524010 BEARING CUSCINETTO	-	1	Enquire
010	2424859	RING	2424859 RING ANELLO	$22.01 MSRP: ~~23.90~~ (7.9% off)	1
013	2421418	SPRING	2421418 SPRING MOLLA X PUNTALINO	$62.92	1
014	2421419	PIN	2421419 PIN PERNO	$32.40	1
015	2421420	BRAKE PAD	2421420 BRAKE PAD PATTING	$27.64	1
016	2420126	SYNCHRONIZER	2420126 SYNCHRONIZER CORPO SINCRONIZZATORE	$303.70	1
017	2425150	SLEEVE T/OBEARING	2425150 SLEEVE T/OBEARING ANELLO INNESTO MARGE	$1,287.53 MSRP: ~~1,395.00~~ (7.7% off)	1
018	2426702	GEAR	2426702 GEAR INGRANAGGIO 5 - MARCIA	$2,199.75	1
019	2424861	SPACER	2424861 SPACER DISTANZIALE	$136.74	1
020	8503006	BEARING	8503006 BEARING CUSCINETTO	$646.65	1
021	2431824	NUT	2431824 NUT DADO	$250.59	1
