Driven Shaft of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

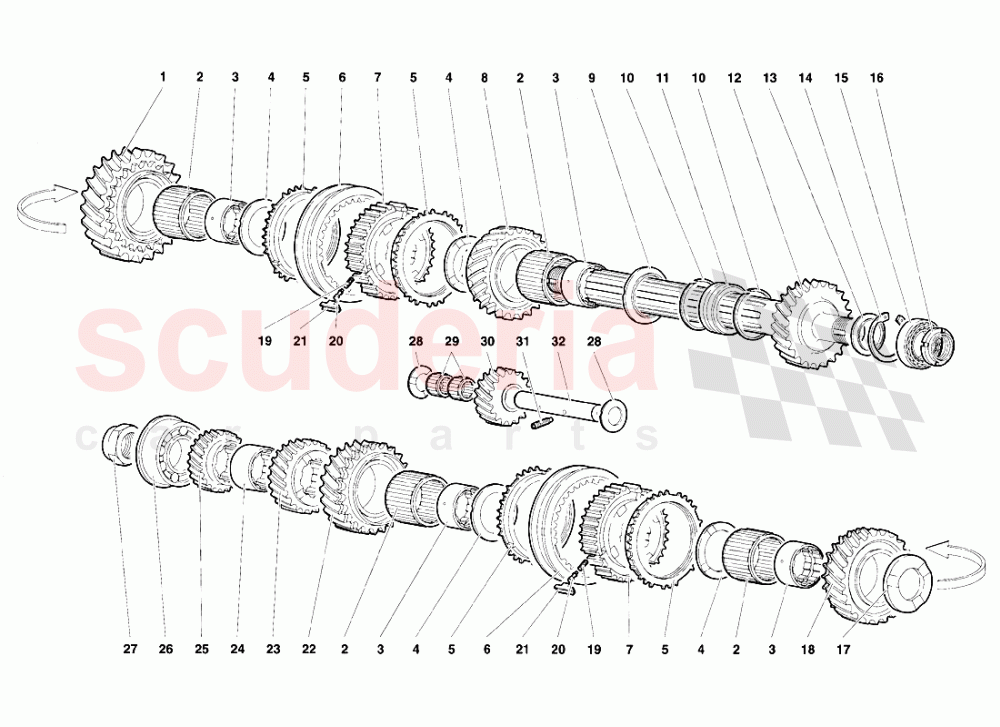

Lamborghini Diablo SE30 (1993-1995) - Driven Shaft

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	2424886	GEAR	2424886 GEAR INGRANAGGIO 1 - MARCIA	$1,843.80 MSRP: ~~2,060.00~~ (10.5% off)	1
002	8524701	ROLLER CAGE	8524701 ROLLER CAGE GABBIA A RULLI	$44.56 MSRP: ~~50.10~~ (11.1% off)	4
003	2420124	SPLINED BUSHING	2420124 SPLINED BUSHING BOCCOLA DENTATA	$807.85	4
004	2424864	WASHER	2424864 WASHER RONDELLA	$1,523.97	4
005	2421416	FRICTION RING	2421416 FRICTION RING ANELLO FRENANTE	$1,422.81	4
006	2425150	SLEEVE T/OBEARING	2425150 SLEEVE T/OBEARING MANICOTTO DISINNESTO	$1,288.93 MSRP: ~~1,395.00~~ (7.6% off)	2
007	2420126	SYNCHRONIZER	2420126 SYNCHRONIZER CORPO SINCRONIZZATORE	$304.03	2
008	2424891	GEAR	2424891 GEAR INGRANAGGIO RM	$416.15 MSRP: ~~451.00~~ (7.7% off)	1
009	2424860	SHIM	2424860 SHIM RONDELLA	$119.64 MSRP: ~~129.50~~ (7.6% off)	1
010	8576201	RETAINER RING	8576201 RETAINER RING ANELLO RITEGNO	$2.85 MSRP: ~~3.00~~ (5% off)	2
011	8524011	BEARING	8524011 BEARING CUSCINETTO	$138.93	1
012	2424915	COUNTERSHAFT	2424915 COUNTERSHAFT ALBERO SECONDARIO	$2,456.46	1
013	2431352	SPACER	2431352 SPACER DISTANZIALE	$92.58	1
014	8576601	RETAINER RING	8576601 RETAINER RING ANELLO RITEGNO	$0.76 MSRP: ~~7.26~~ (89.5% off)	1
015	8523009	BEARING	8523009 BEARING CUSCINETTO	$62.58	1
016	8253003	PLUG	8253003 PLUG GHIERA	$202.88	1
017	2424863	WASHER	2424863 WASHER RONDELLA	$92.37 MSRP: ~~100.50~~ (8.1% off)	1
018	2427098	GEAR	2427098 GEAR INGRANAGGIO 2 - MARCIA	$4,659.55	1
019	2421418	SPRING	2421418 SPRING MOLLA X PUNTALINO	$62.99	6
020	2421419	PIN	2421419 PIN PERNO	$32.43	6
021	2421420	BRAKE PAD	2421420 BRAKE PAD PATTINO	$27.67	6
022	2424888	GEAR	2424888 GEAR INGRANAGGIO 3 - MARCIA	$1,629.94 MSRP: ~~1,820.00~~ (10.4% off)	1
023	2424872	GEAR	2424872 GEAR INGRANAGGIO 4 - MARCIA	$744.45	1
024	2424866	SPLINED BUSHING	2424866 SPLINED BUSHING BOCCOLA DENTATA	$226.58	1
025	2426685	GEAR	2426685 GEAR INGRANAGGIO 5 - MARCIA	$693.59	1
026	8503006	BEARING	8503006 BEARING CUSCINETTO	$647.35	1
027	2431824	NUT	2431824 NUT DADO	$250.86	1
028	2424862	WASHER	2424862 WASHER RONDELLA	$212.71 MSRP: ~~230.50~~ (7.7% off)	2
029	8522008	ROLLER CAGE	8522008 ROLLER CAGE GABBIA A RULLI	$25.26	2
030	2424869	GEAR	2424869 GEAR INGRANAGGIO R.M.	$226.58 MSRP: ~~245.50~~ (7.7% off)	1
031	8700649	SCREW	8700649 SCREW VITE	$7.39 MSRP: ~~8.25~~ (10.4% off)	1
032	2424865	SMALL SHAFT	2424865 SMALL SHAFT PERNO	$105.59	1
